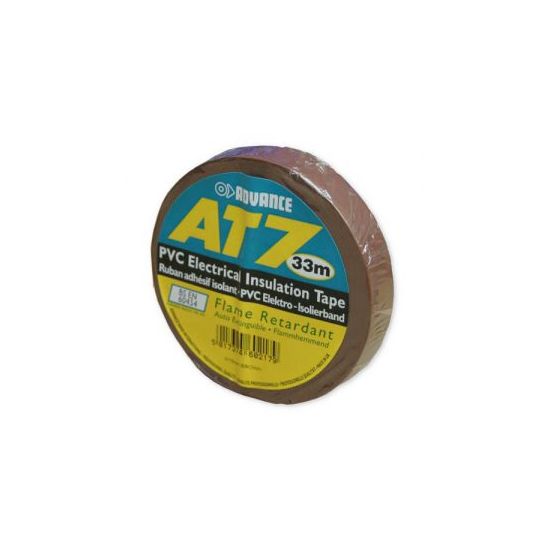

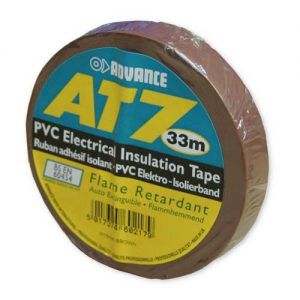

Advance - AT7 PVC tape 38mm / 33m, brown

Advance - AT7 PVC tape 38mm / 33m, brown

Color: Brown
Length: 33mtr
Width: 38mm

Applications

• Colour coding and insulation of electrical cabling
• Colour coding components, intermediate stock and finished goods during manufacture
• Cable harnessing, insulation, abrasion protection for OEM companies in household appliances market
• Masking off during chemical and electro-plating
• Masking and protection of aircraft portholes during manufacture
• Masking off aircraft landing gear when cadmium plating

Technical:

• Product Type: PVC
• Adhesive Type: Cross-linked solvent based rubber-resin
• Thickness: 0.13 mm
• Breaking Load: 26 N/cm
• Elongation: 180 %
• Adhesion to Steel: 2.4 N/cm
• Adhesion to Self: 2.1 N/cm
• Service Temperature: -5°C to +70°C
• Breakdown Voltage: 8.0 kV
• RoHS Compliant: Yes
• Specification: BS EN 60454 Type 2

Features

• Flame Retardant
• Self-extinguishing
• Easy unwind and easy tear
• Flexible and Conformable
• Water Resistant
• UV Resistant
• Abrasion Resistant
• Non-corrosive adhesive
• RoHS compliant
