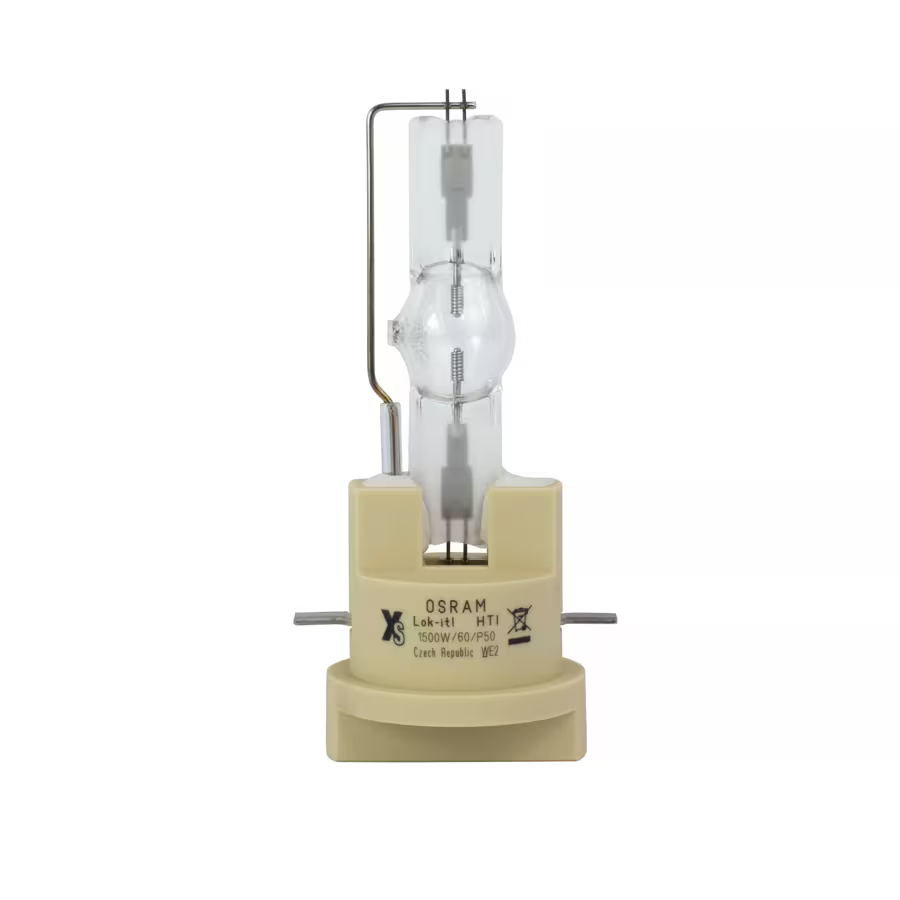

Osram | LOK-IT HTI 1500/60/P50

Osram | LOK-IT HTI 1500/60/P50

Features

• Compact design and short arc gap allows for smaller and brighter fixures
• Fast lamp replacement with one-touch rotate and lock base
• Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
• Consistent lumen output over the life of the lamp
• Improved ceramic base allows high voltage up to 35kV
• Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency

• Product number (Americas): 54225
• Product name (Americas): LOK-IT HTI 1500W/60/P50 1/CS 1/SKU
• Family brand: Lok-it!
• Lamp type: SINGLE END
• Global order reference: Lok-it! HTI 1500 W/60/P50

Electrical Data

• Nominal wattage: 1500 W
• Nominal voltage: 100 V
• Nominal current: 15 A

Photometric Data

• Nominal luminous flux: 130000 lm
• Color temperature: 6000 K
• Color rendering index Ra: ›85
• Light center length (LCL): 65.0 mm

Physical Attributes & Dimensions

• Electrode gap (cold): 6.1 mm
• Lamp base: -
• Diameter: 29.0 mm
• Length: 128.0 mm
• Product weight: 100.00 g

Operating Conditions

• Burning position: Other

Lifetime Data

• Nominal lifetime: 750 hr
