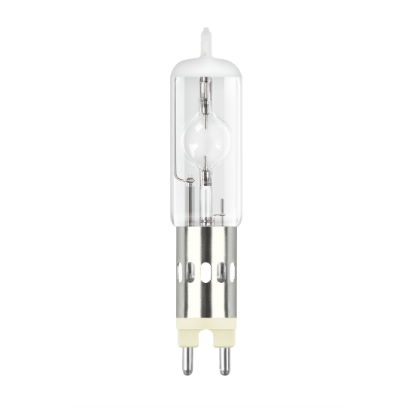

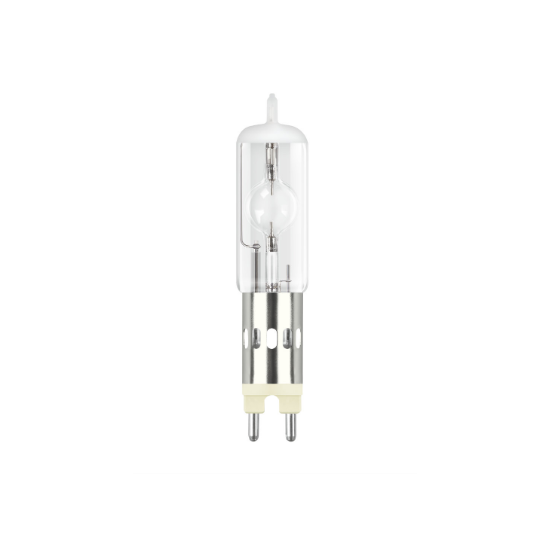

Osram - HMI Digital 6000W/SE

Osram - HMI Digital 6000W/SE

Product features and benefits

• High intensity light providing true color performance with a CRI>90
• Longer life with heat dissipating round moly-foil design on lamps ≥ 6000W
• Mechanically robust with eXtreme Seal (XS) technology, up to 450°C at the pinch seal​
• Capable of hot restrike ignition
• High color stability with average changes in color temperature during lamp life only 1°K/hr
• Dimmable down to 40% with stable color using many electronic ballasts
• High energy efficiency providing up to 100 LPW​
• HMI EVENT types offer enhanced brightness and color control as well as UV-stop technology

Areas of application

• Studio, TV and film
• Professional Photography
• Solar Simulation

Electrical data

• Nominal Wattage: 6000 W
• Nominal Voltage: 123 V
• Current (A): 55 A
• Type of Current: AC

Light technical data

• Luminous Flux: 600000 lm
• Luminous Efficacy (lm/W): 100 lm/W
• Light Center Length - LCL (mm): 210 mm
• Color Temperature: 6000 K
• Color Rendering Index: 90
• Average Rated Life: 500 h

Physical attributes

• Base: GX38
• Bulb Shap: T75
• Maximum Overall Length (mm): 360 mm
• Length l max. (mm): 360 mm
• Diameter d (in): 2.953 in
• Diameter d (mm): 75.00 mm
• Distance a (mm): 210 mm
• Electrode Gap - cold (mm): 23 mm
• Reflector Coating: 75.00

Additional product data

• Operating Position: s 135
• Maximum Base Temperature (ºC): 450 C
• Cooling: Convection
• Hot Restart: Yes
• Class: C (gas)
• Lamp Type: ROUNDFOIL
