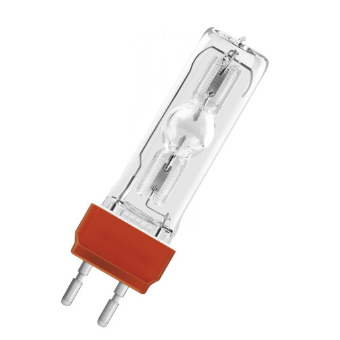

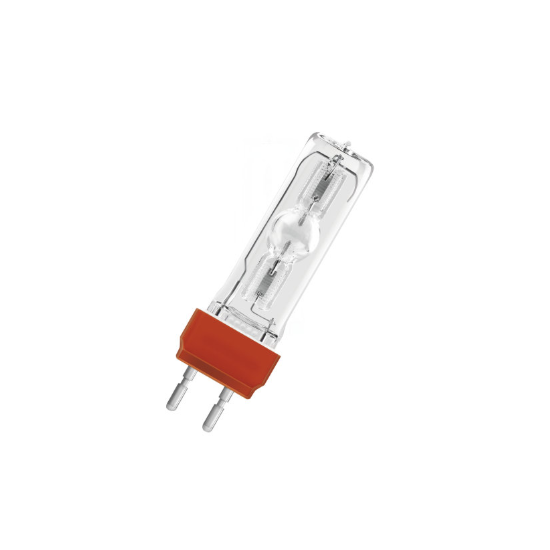

Osram | HMI DIGITAL 1800W

Osram | HMI DIGITAL 1800W

Features

• Suited for both analog and digital film productions
• Reduced flicker when used with high-speed electronic ballasts (up to 1000 Hz and higher)
• Enhanced safety with UV-Stop (UVS) feature on all DIGITAL types
• High intensity light providing true color performance with a CRI >90
• Color temperature approximately 6000 K - simulates daylight within the fixture
• Robust design provide durability during transport
• High energy efficiency providing up to 100 lumens/watt
• Capable of hot restrike ignition

• Product number (Americas): 55078
• Product name (Americas): HMI DIGITAL 1800W 1/CS 1/SKU
• Family brand: HMI DIGITAL
• Global order reference: HMI DIGITAL 1800 W

Electrical Data

• Nominal wattage: 1800 W
• Nominal voltage: 140 V
• Ignition voltage (cold/hot): 5/35 kVp
• Nominal current: 12.9 A
• Type of current: AC

Photometric Data

• Nominal luminous flux: 165000 lm
• Luminous efficacy: 92 lm/W
• Color temperature: 6500 K
• Color rendering index Ra: 90
• Light center length (LCL): 107.0 mm (4.2 in)

Physical Attributes & Dimensions

• Electrode gap (cold): 10.0 mm
• Lamp base: G38
• Diameter: 40.0 mm (1.654 in)
• Length: 200.0 mm
• Product weight: 305.00 g

Operating Conditions

• Burning position: Any
• Cooling: Convection or forced
• Maximum permitted ambient temperature at base: 450 °C

Lifetime Data

• Nominal lifetime: 750 hr
