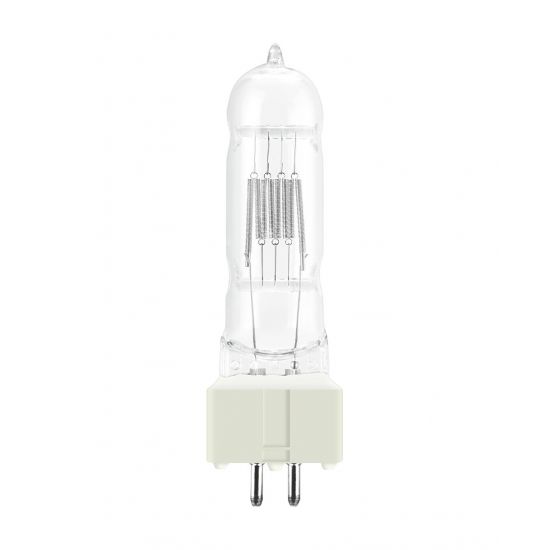

Osram | 64752 T/29 1200W 230V GX9.5 20X1 DIMPLE

Osram | 64752 T/29 1200W 230V GX9.5 20X1 DIMPLE

Features

• Robust construction for lasting performance
• Consistent color over the life of the lamps
• Instant on and nearly constant luminous flux over the life of the lamp
• Broad product portfolio supporting the stage and studio markets
• Dimmable with traditional amber shift

• ANSI code: FWS
• LIF code: T/29
• Global order reference: 64752

Electrical Data

• Nominal wattage: 1200 W
• Nominal voltage: 230 V

Photometric Data

• Nominal luminous flux: 29000 lm
• Useful luminous flux (Φuse): 29440 lm
• Φuse value refers to luminous flux: 360
• Luminous efficacy: 23.8 lm/W
• Illuminated field: 13.0*15.0 mm²
• Color temperature: 3000 K
• Correlated color temperature CCT: 3131 K
• Chromaticity coordinate x: 0.426
• Chromaticity coordinate y: 0.400
• Color rendering index Ra: 100
• Light center length (LCL): 67.0 mm

Physical Attributes & Dimensions

• Lamp base: GX9.5
• Diameter: 27.0 mm
• Length: 125.0 mm
• Product weight: 50.00 g

Operating Conditions

• Burning position: s90
• Dimmable: Yes

Lifetime Data

• Nominal lifetime: 400 hr
