Neutrik | NE8FDV-YK-B - EtherCON Chassis D Connector Female

Neutrik - NE8FDV-YK-B - EtherCON Chassis D Connector Female

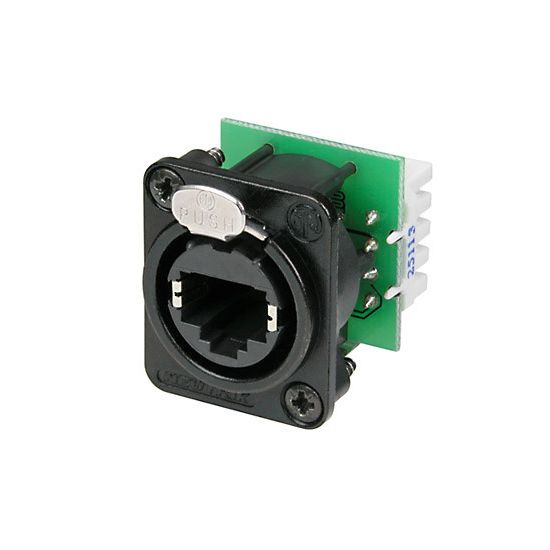

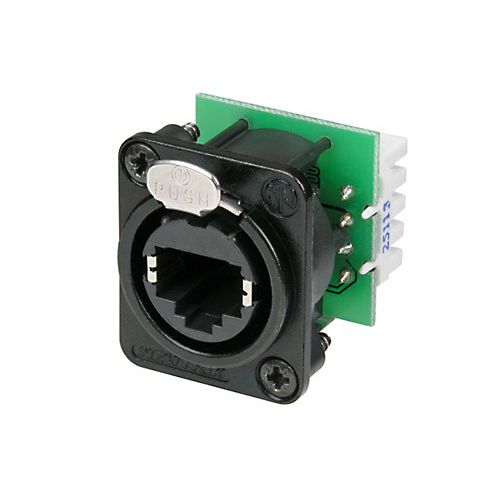

Panel mount receptacle with IDC punch down terminals, black D-sized metal flange with latch lock, max. panel thickness 4 mm, mounting screws included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

• Accommodates NE8MC* or any standard RJ45 plug
• Approved latch lock system
• Mountable from the front or rear of the panel
• CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
• Selectable ground - panel connection
• Easy and quick mounting using Krone punch down terminals
• PoE type 3 class 6 (60W) acc. IEEE 802.3bt

Product: NE8FDV-YK-B
Connection Type: RJ45
Gender: female

Electrical

• Contact resistance: < 50 mΩ
• Dielectric strength: 1 kVdc
• Frequency range: 1 - 100 MHz
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1,5 A
• Rated voltage: ≤ 57 V
• Transmission performance: CAT5e acc. to TIA/EIA 568C channel specifications
• Transmission performance: CLASS D acc. to ISO/IEC 11801 channel specifications
• Power over Ethernet: PoE type 3 class 6 (60W) acc. IEEE 802.3bt

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Panel thickness: max. 4 mm 0.16'
• Wiresize: 0.14 - 0.5 mm²
• Wiresize: 26 - 20 AWG
• Locking device: Latch lock
• Chassis shape: D

Material

• Contact plating: 0.2 µm Au over Ni plating
• Contacts: Bronze (CuSn8)
• Insert: PBTP 15 % GR
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black KTL
• Strain relief: CuZn35Pb2, Tin plated
• Locking element plating: Nickel

Environmental

• Flammability: UL 94 V-0
• Temperature range: -30 °C to +80 °C
• Standard compliance: ISO/IEC 11801-1 Ed. 1.0 (2017-11)
• Standard compliance: IEC 60603-7-3 Ed.2.0 (2010-04)
• Standard compliance: IEC 60512-99-002 Ed.2.0 (2022-01)
• Standard compliance: IEC 60512-9-3 (2011-06)
