Martin | VC-FEEDER WITH BBD CONNECTOR

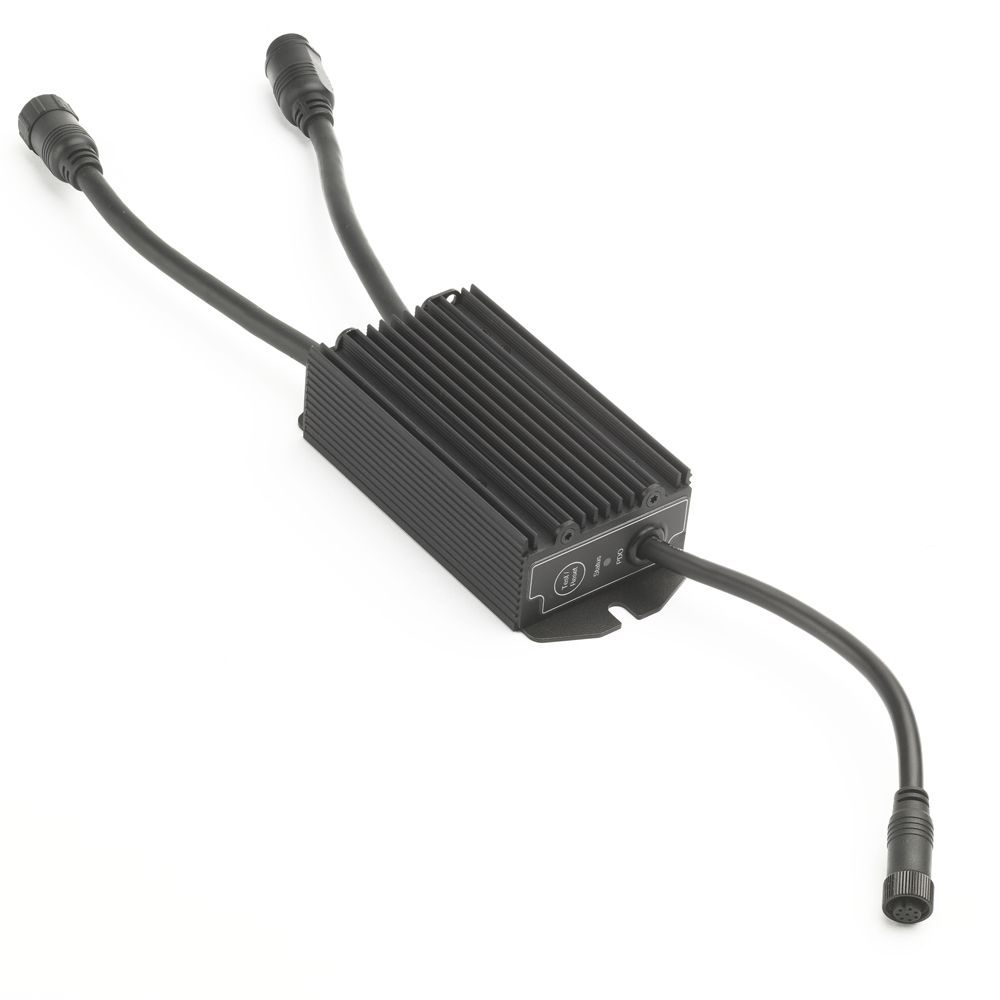

The VC-Feeder is a smart, multi-protocol driver box for the VC-Dot series. A compact design and IP65 rating make it perfectly suited for installation close to a string of VC-Dots. The VC-Feeder provides the string with clean, regulated power, even if the power supply is located far away. Compatibility with the P3 System Controller™ (via the P3 PowerPort 1500™ or PowerPort 1000 IP™) gives it high-quality image processing capabilities with extremely easy setup and configuration.

• Driver unit for VC-Dot products
• Compatible with P3 and DMX
• Easy cabling and configuration

Physical

• Length: 164 mm (6.5 in.) including mounting ears

• Width: 68 mm (2.7 in.)

• Height: 36 mm (1.5 in.)

• Weight: 590 g (1.3 lbs.)

Control and Programming

• Control options: Martin P3 System Controller™ via Martin P3 PowerPort 1500™ / Martin P3 PowerPort 1000 IP™ and/or DMX

• Control modes: Adapts to detected product

• Protocol detection: Automatic

• Setting and addressing: P3 System Controller or RDM-compliant controller

• Product detection: Automatic

• DMX channels: Adapts to detected product

• DMX compliance: USITT DMX512-A

• RDM compliance: ANSI/ESTA E1.20

• Firmware update: Via P3 System Controller

Control/User Interface

• Device status: Multicolor status LED

• Device test and reset: Pushbutton to call up local test patterns and reset device

Video Processing

• Brightness control

• Gamma correction and control

• Color temperature control

• Calibration processing

• Synchronization

Construction

• Housing: Extruded aluminum

• Protection rating: IP65

• RoHS compliant

Installation

• Orientation: Any

• Surface mounting: Two M6 mounting slots

• Truss mounting: M12 mounting hole for standard rigging clamp
