QSC - KS112

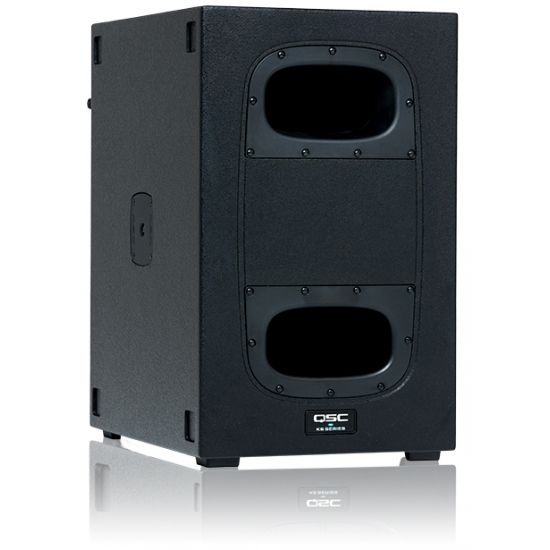

The KS112 is an ultra-compact active subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 Watt peak power Class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).

Features

  • High Output in an ultra-compact form factor
  • 2000 Watt Class D amplifier module
  • 12-inch, long-excursion driver; 6th order bandpass design
  • Intrinsic Correction™tuning and loudspeaker management
  • Refined, professional appearance looks great in any application
  • Rugged painted wood enclosure for long life and lasting durability
  • Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
  • Including pre-assembled soft-wheels
  • Optional KS-LOC security cover prevents unauthorized tampering of controls
  • Complete EASE & CAD information available online
  • 6-Year Warranty*
  • Configuration: 6th-Order Bandpass Subwoofer
  • LF Transducer: 12-inch (305 mm), Cone
  • Frequency Response (-6 dB): 41 Hz - 108 Hz
  • Frequency Range (-10 dB): 38 - 121 Hz
  • Maximum Rated SPL1: 128 dB @ 1 m (peak)
  • Amplifier:
    • Class D
    • Peak: 1800 W (LF), 225 W (HF)
  • Cooling: Low-noise, variable speed fan
  • Controls:
    • Power On/Off
    • Gain Control
    • Rotary encoder
    • 2 x selection buttons
  • Indicators:
    • 2 x Power LED (front and rear)
    • Input Signal LED
    • Limiter active LED
  • Connectors:
    • 2 x locking XLR/F ¼” combo
    • 2 x XLR/M (Loop-thru Output)
    • 1 x locking IEC power connector
  • AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
  • AC Power Consumption 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A

Enclosure Details

  • Enclosure: 15 mm Birch Plywood
  • Color: Black (RAL 9011)
  • Grille: Internal woofer cover
  • Dimensions (HxWxD):
    • 24.5 x 15.5 x 24.25 inches
    • 622 x 394 x 616 mm
  • Net Weight: (including casters) 28.4 kg (62.6 lbs)
  • Shipping Weight: 34.5 kg (76 lbs)
  • Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
  • Included Accessories: 4 x Low-Noise, Heavy Duty Casters
  • Optional Accessories:
    • KS112-CVR Transport Cover, KS-LOC Lock-Out Cover
    • SP-16X Extension Pole, SP-36 Speaker Pole
