Shure | ULXD2/B87C

Shure | ULXD2/B87C

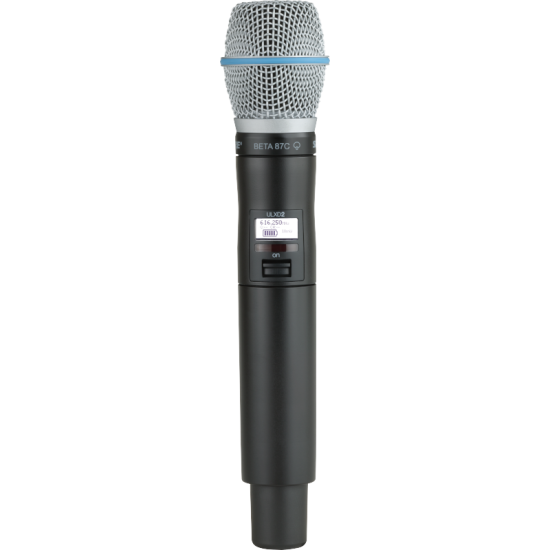

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems.

• 30 Hz–20 kHz range with flat frequency response (actual response is microphone dependent)
• Interchangeable Shure microphone cartridges
• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Shure Lithium-Ion rechargeable battery pack provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Frequency and power lockout

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum body and integrated antenna, the ULXD2 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

• Product series: ULX-D
• Usage Environments: Theater Stage
• Optional Accessories: RK324G
• Battery Life Lithium: up to 9 h
• Battery Life Alkaline: up to 11 h
• Audio Mute: yes
• Detachable Antennas: no
• Switchable RF Power: yes
• Frequency Diversity: no
• High Density Mode: yes
• Interchangeable Handheld Capsule: interchangeable
• Form Factor: handheld
• Charger Options: Docking Charger
• Operating Range: n/a
• Battery Life Note: Frequency band and power output dependent
• Battery Status: Leveled battery life indication with AA, HH:MM (hours and minutes) with rechargeable Shure battery
• Encryption: yes, AES-256
• Transmission: Digital in VHF, UHF, 900 MHz ISM, 1.2 GHz, 1.5 GHz, 1.8 GHz
• Weight: 340 g
• Width: 51 mm
• Height: 256 mm
• Depth: 51 mm
• Component: wireless_transmitter
• Color: black
• Logic output: false
• Frequency band: K51 (606–670 MHz)
• On/Off switch: true
• Mute switch: false
• Status indicator: LED
