Shure | ULXD1

Shure | ULXD1

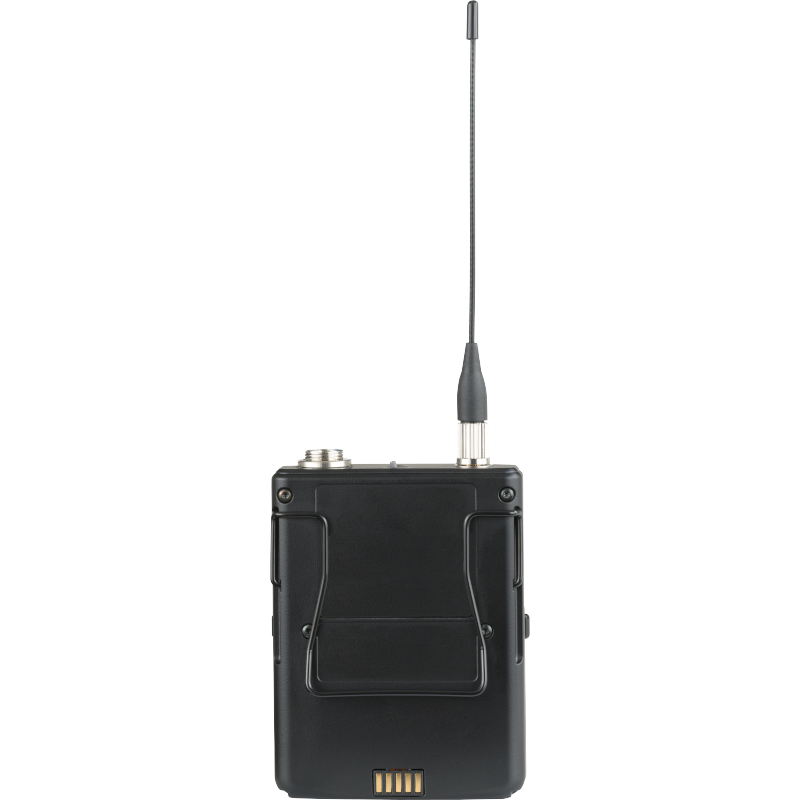

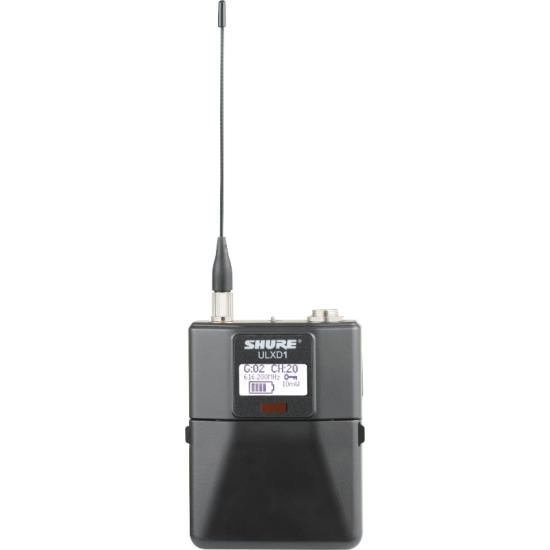

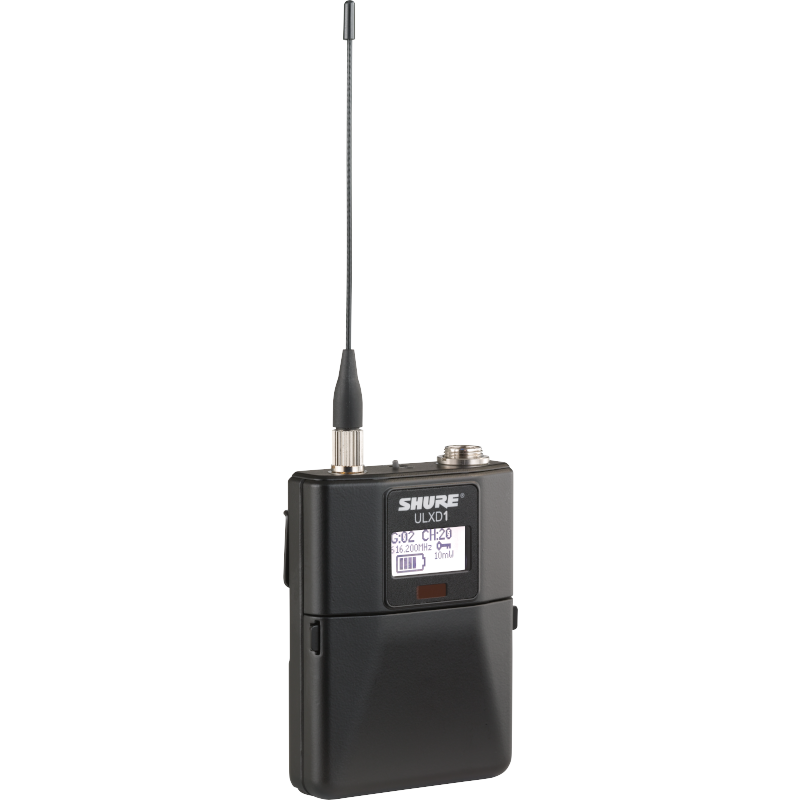

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems.

• AES 256-bit encryption for applications for which secure transmission is needed
• Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source, eliminating the need for transmitter gain adjustments
• Optional Shure SB900B lithium-ion rechargeable battery provides over 9 hours of battery life, precision metering in hours and minutes, and zero memory effect
• External charging contacts for docked charging (with the SBC200 and SBC220 Dual Docking Charger)
• Backlit LCD with easy to navigate menu and controls
• Rugged metal construction
• Detachable ¼ wave antenna
• Frequency and power lockout

The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems. With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

• Product series: ULX-D
• Component: Wireless transmitter
• Form Factor: Bodypack
• Usage Environments: Theater, Stage
• Color: Black
• Transmission: Digital in VHF, UHF, 900 MHz ISM, 1.2 GHz, 1.5 GHz, 1.8 GHz
• Frequency band: G56 (470–636 MHz) or K51 (606-670 MHz)
• Switchable RF Power: Yes
• High Density Mode: Yes
• Frequency Diversity: No
• Detachable Antennas: Yes
• Encryption: Yes, AES-256
• Battery Life Lithium: Up to 9 hours
• Battery Life Alkaline: Up to 11 hours
• Battery Status: Leveled battery life indication with AA, HH:MM (hours and minutes) with rechargeable Shure battery
• Battery Life Note: Frequency band and power output dependent
• On/Off switch: True
• Mute switch: False
• Audio Mute: Yes
• Status indicator: LED
• Logic output: False
• Connector: TQG (TA4F, 4-Pin Mini)
• Weight: 79 g
• Width: 67 mm
• Height: 96.5 mm
• Depth: 26.7 mm
• Optional Accessories: RK324G
