Aurora - DIDO-X4

Aurora - DIDO-X

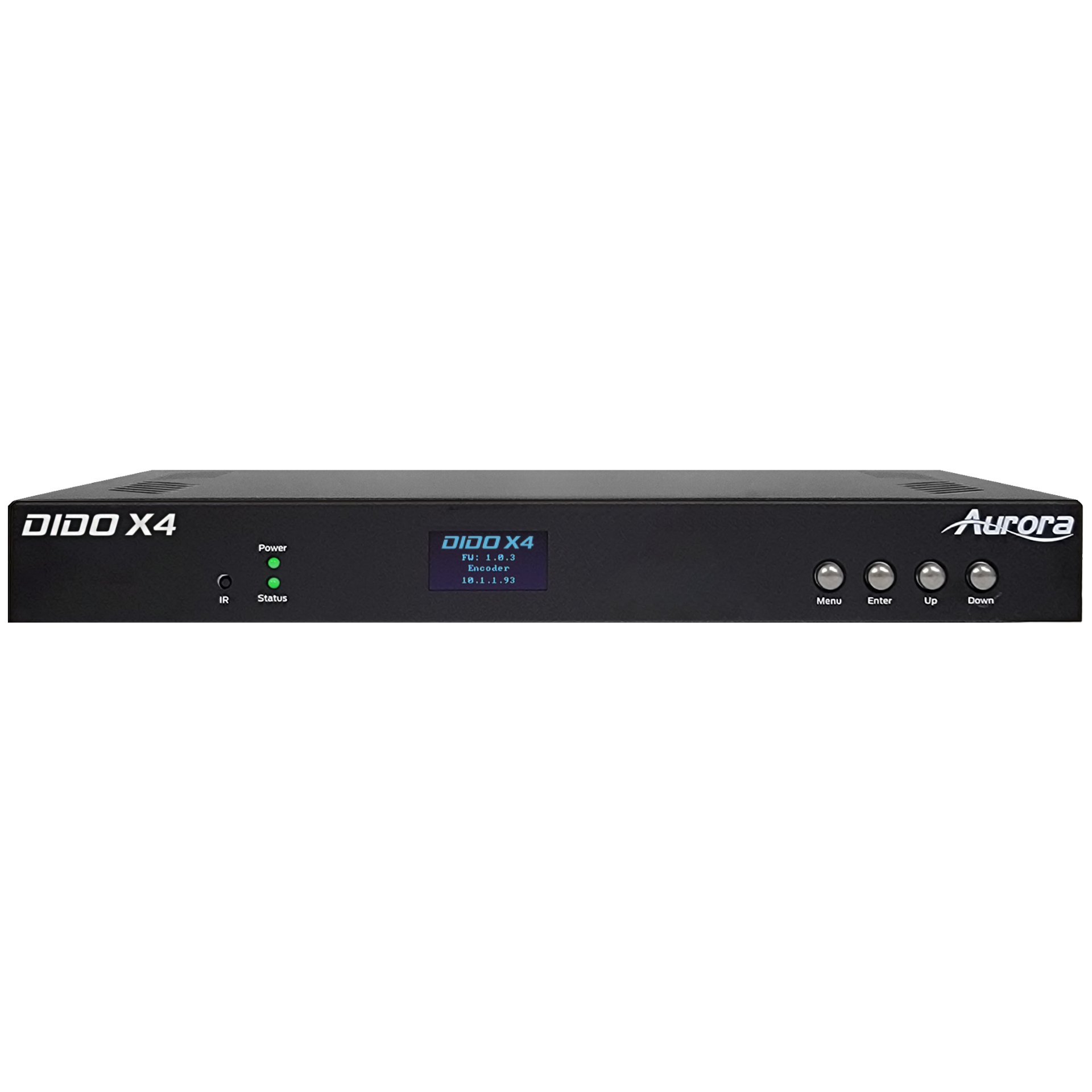

The DIDO X4 is the most advanced 4x4 scaler on the market. The input card slot provides 3 choices of cards depending on the application needs. These inputs can be routed to any of the four HDMI outputs with a quad scaler processor and advanced features. These features consist of contrast edge blending for side-by-side projectors, 1 degree image rotation for portrait and jigsaw puzzle mode videowalls, chroma keying for overlaying of sources on top of others, vector scope and pattern generation for signal integrity diagnosing, Seamless switching and windowing opens new possibilities and the bitmap OSD engine can enhance content on input and outputs. Another amazing feature is the built in USB 3.1 capture output for a PC making interfacing to Zoom Rooms, Teams, etc. even easier.

Control can be sent securely to the 1G Ethernet port. The RS-232 & IR ports allow for local device control of displays and other equipment.

Choice is important. That’s why the DIDO X4 is the ultimate Unified Communication product on the market today.

Benefits

The DIDO X4 is many devices in one product providing not just the ultimate experience but the ultimate value.

Here is why:

1. Video Effects Processor (Contrast Edge Blending, Chroma Keying, Image Rotation, Bitmap OSD)
2. Windowing up to 4 sources locally to any of the 4 outputs
3. Videowall Processor with 1 Degree Image Rotation
4. Audio DSP with Dante
5. Diagnostic Tools (Vector Scope, Waveform Analyzer, Histogram, Pattern Generator)
6. USB 3.1 Capture Output for a Computer (Zoom Room, Teams, WebEx, etc.)

Specifications

Technical

• Compression: Zero (4K30 4:4:4/4K60 4:2:0), 1.3:1(4K60 4:4:4)
• Latency: Zero Frame Latency (100us without Scaling, 3ms with Scaling)

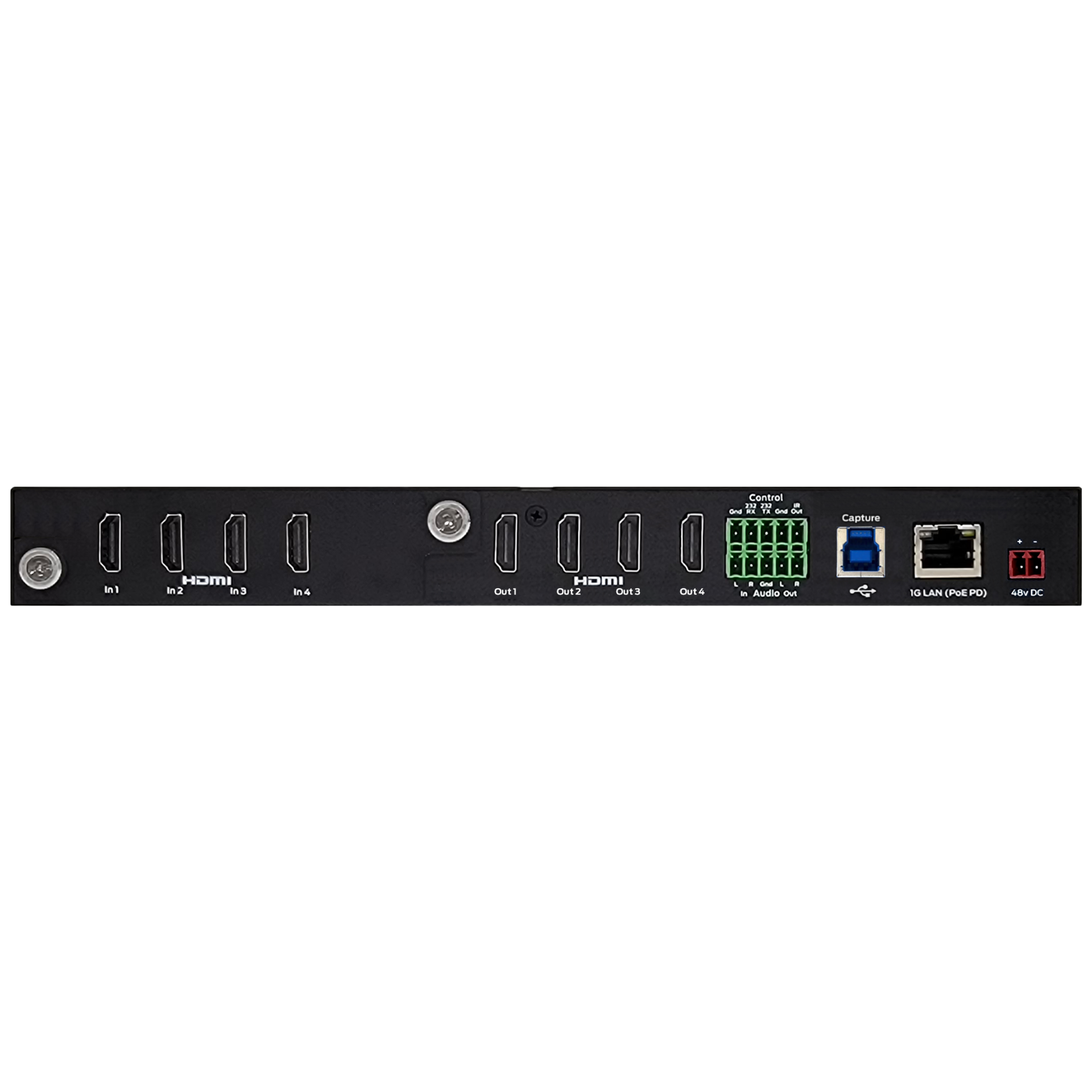

• HDMI Inputs: Four HDMI 2.0
• HDMI Outputs: Four HDMI 2.0
• Analog Audio: Stereo Line In/Out
• 1G LAN: RJ-45 10/100/1000M PoE
• USB: USB 3.1 Type B (4K30 4:4:4 Max Resolution)
• Video Bandwidth: 600MHz
• Video Support: Up to 4K2K 4:4:4 @60Hz
• Audio Support: Up to 32 channels & Break-away Capable
• RS-232: Up to 115k Baud
• IR: 30KHz-60KHz
• Expansion Ports: Dante®
• Interface: IR or Keypad for OSD and OLED, Webserver
• Badwidth:4K60 4:4:4
• Scaling Processors: Quad Scaler Processors
• Effects: Image Rotation, Videowall, Windowing, OSD, Edge Blending, Chroma Keying
• Pattern Generator: Color Bar, Moving Pattern, Hash, & More

Mechanical

• Housing: Black Aluminum Enclosure
• Dimensions [L x W x H]: 10.5" x 8" x 1.22"
• Weight: 4.0lbs
• Mounting: Rack mount (optional) and included under table/wall mount
• Power Supply: 25 Watts 48VDC or PoE+ (LAN)
• Max Power Consumption: 15 Watts
• Operating Temperature: 0~40ºC [32~100ºF]
• Storage Temperature: -20~60ºC [-4~140ºF]
• Relative Hunidity: 20~90% RH [no condensation]
