Pixelhue - 4K View Pro

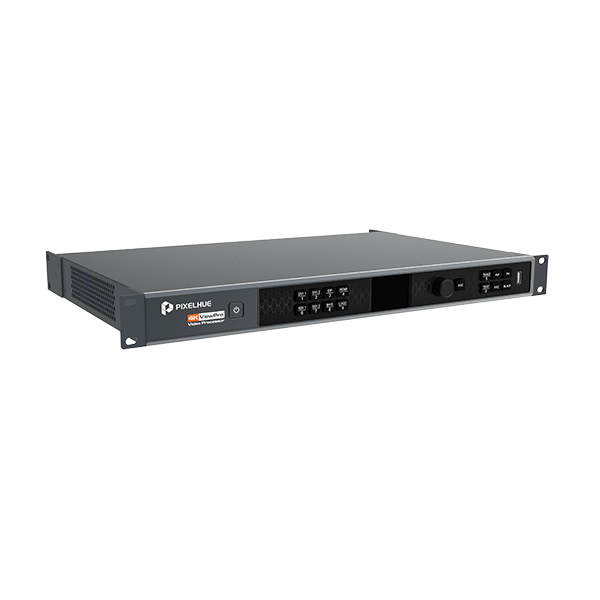

Experience unparalleled performance with the 4K ViewPro, a cutting-edge real 4K video processor designed to exceed your expectations. With an astonishingly low latency of just 1 frame and support for 4K×2K@60Hz video input and output, the 4K ViewPro delivers a seamless and immersive image processing experience like no
other.

Built with a robust FPGA system architecture and a high-performance Scalar core, the 4K ViewPro guarantees uncompromising performance and reliability. Its ultra-low latency ensures that you never miss a beat, providing instant and responsive video processing for flawless displays.

With multiple Ultra HD real 4K×2K@60Hz inputs and outputs, it offers unmatched scalability, seamless switching, and efficient signal conversion. Whether you're in highend rental, stage control, fine pitch LED displays, or broadcasting, the 4K ViewPro is the ultimate solution for your visual needs.

High Performance
The 4K ViewPro is a superior true 4K scaler, converter, andswitcher designed to excel in live events, stage shows, andbroadcasting scenarios. Powered by PIXELHUE’s uniqueSuperView image processing engine, the 4K ViewPro offersunparalleled quality and performance, setting a new standardin the industry.

The 4K ViewPro can effortlessly handle any signals up to4K@60Hz 4:4:4 10-bit, delivering the highest quality visualswith minimal latency (as low as 1 frame in appropriateconfiguration).As a professional converter, the 4K ViewPro empowers you toseamlessly convert any input signals to a wide range of outputformats, supporting HDMI 2.0, DisplayPort 1.2, Dual-Link DVI,and 12G-SDI.

With three layers, including one main layer and two PIPs(Picture-in-Picture), along with a still background and logosupport, the 4K ViewPro caters to all your visual needs for liveevents, stage shows, and broadcasting. Prepare to captivate your audience with stunning visuals and create a trulyextraordinary visual experience.

User-Friendly Control

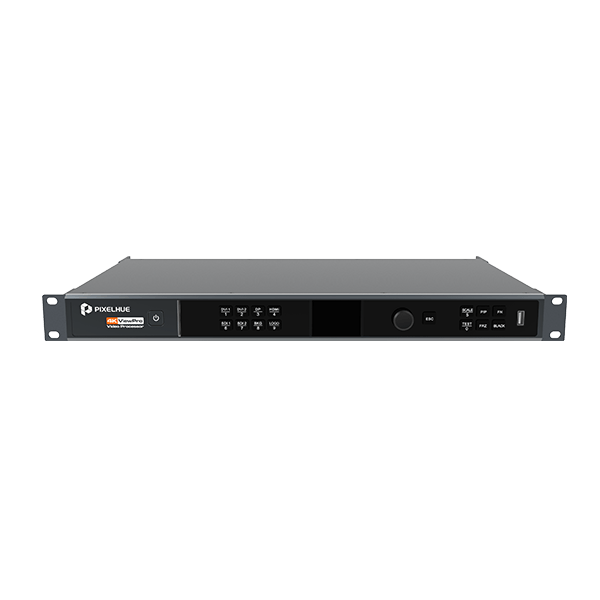

In addition to its intuitive front panel, the 4K ViewPro also offersan elaborated user-friendly web control interface, allowing youto conveniently and comprehensively manage the 4K ViewProusing just a browser. Just say goodbye to complex installationsand enjoy hassle-free control.

High Reliability
The 4K ViewPro is built to run all day without a hitch.Assembled and tested for extreme use and abuse, it haspassed 35 rigorous tests that include dropping, shocking,vibration, and thermal tests to ensure it can survive in any roadtrips or event environments, giving you all the confidence youneed to execute your shows.

Features:

True 4K60p 4:4:4 10-bit video processing
Superb motion adaptive de-interlacing (MADi) processing
High-performance new generation SuperView scaler
Picture in Picture (2 PIPs)
Still BKG and LOGO management
Adjustable layer mask, flipping, cropping
Up to 16 presets
Strobe function with user-defined duration
EDID management for all input connectors except SDI
Support for VESA/CVT and user timings
Input backup for higher reliability
Web GUI control
AOI function
Input sync with Genlock. Genlock accepts bi-level or tri-level
signals
Flexible output connector rotation (multiples of 90°) for
diversified visuals
Rich test patterns for quick check of display defects
Interlaced output supported

Specifications

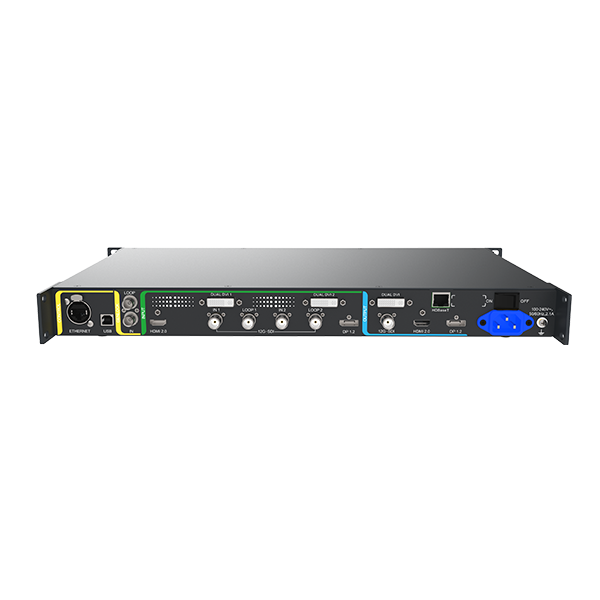

Inputs

12GSDI

Up to 4K×2K@60Hz 4:2:2 10bit
Max. resolution: 3840×2160@60Hz
Level A & B
Support for ST20821 (12G), ST20811 (6G), ST424 (3G), ST292, (HD) and SMPTE 259 (SD)
Common resolutions
- 1920×1080i@50/59.94/60Hz
- 1920×1080@30/50/59.94/60Hz
- 3840×2160@30/50/59.94/60Hz

12G-SDI LOOP

Re-drived 12G SDI loop-through output
Max. resolution: 3840×2160@60Hz

HDMI 2.0

Up to 4K×2K@60Hz 4:4:4 8bit
Max. resolution: 4096×2160@60Hz
HDCP 2.2 compliant
Backward compatible with HDMI 1.4 and HDMI 1.3
EDID management for VESA, and CVT compliant user timings
Common resolutions
- 3840×1080@30/50/59.94/60Hz
- 1920×1080@30/48/50/59.94/60Hz
- 3840×2160@30/60Hz

DP 1.2

Up to 4K×2K@60Hz 4:4:4 10bit
Max. resolution: 4096×2160@60Hz
HDCP 1.3 compliant
Backward compatible with DP 1.1
EDID management for VESA, and CVT compliant user timings
Common resolutions
- 3840×1080@30/50/59.94/60Hz
- 1920×1080@30/48/50/59.94/60Hz
- 3840×2160@30/60Hz

Dual DVI

Up to 4K×2K@30Hz, clock frequency up to 165 MHz in singlelink mode, 300 MHz in duallink mode
Max. resolution: 3840×2160@30Hz
HDCP 1.4 compliant
EDID management for VESA, and CVT compliant user timings
Common resolutions
- 3840×1080@30/50/59.94/60Hz
- 1920×1080@30/48/50/59.94/60Hz

Outputs

HDMI 2.0

Up to 4K×2K@60Hz 4:4:4 8bit
Max. width: 8192 pixels
Max. height: 4096 pixels
Support for VESA and CVT and user timings
Backward compatible with HDMI 1.4 and HDMI 1.3

DP 1.2

Up to 4K×2K@60Hz 4:4:4 10bit
Max. width: 8192 pixels
Max. height: 4096 pixels
Backward compatible with DP 1.1
Support for VESA and CVT and user timings

12GSDI

Up to 4K×2K@60Hz 4:2:2 10bit
Max. width: 3840 pixels
Max. height: 2160pixels
Level A
Support for ST20821 (12G), ST20811 (6G), ST424 (3G), ST292, (HD) and SMPTE 259 (SD)

Dual DVI

Up to 4K×2K@30Hz, clock frequency up to 165 MHz in singlelink mode, 300 MHz in duallink mode
Max. width: 4096 pixels
Max. height: 4096 pixels
Support for VESA and CVT and user timings

Dimensions (with handles, rack ears & rack mount)
