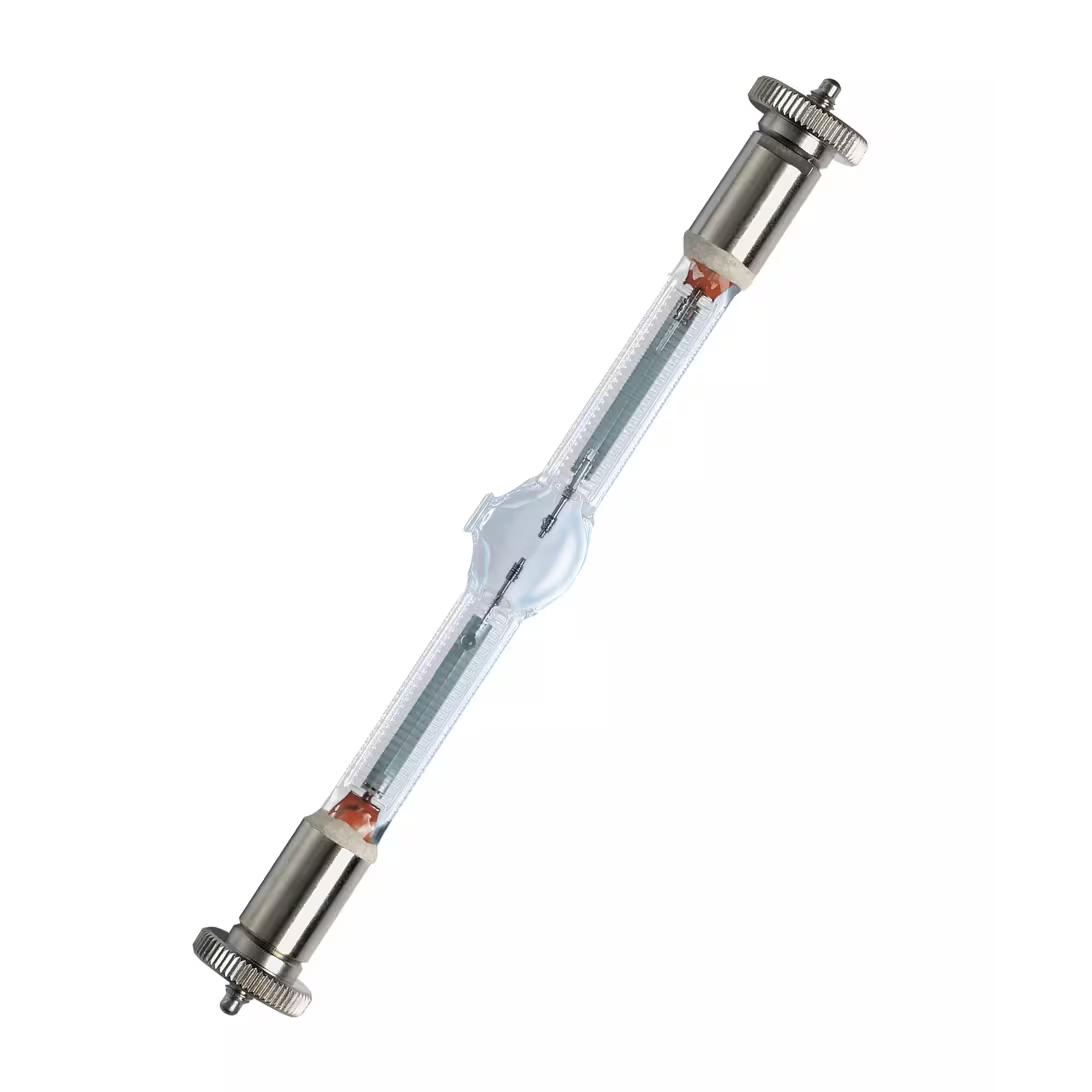

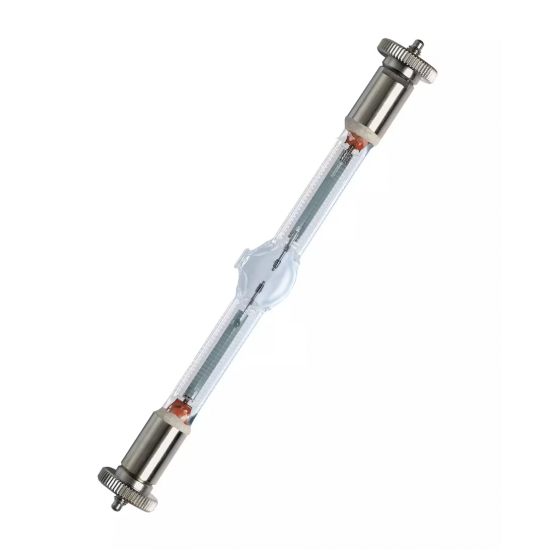

Osram | SHARXS HTI 400W/D3/75 SFC10-4 VS1

Osram | SHARXS HTI 400W/D3/75 SFC10-4 VS1

Features

• SHARXS lamps provide consistent lengths and bases within each SharXS family for simplified fixture designs (Baby SharXS - 93mm, SharXS - 136mm, Maxi SharXS - 220mm)
• Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
• Hot restart capability
• Natural tone of light with CRI as high as 90 for "Brilliant" types
• Pre-focus base for accurate lamp installation

• Product number (Americas): 54241
• Product name (Americas): SHARXS HTI 400W/D3/75 10/CS 1/SKU
• Family brand: SharXS HTI
• Product remark: Also available as an OEM package with 30 units without knurled nuts
• Global order reference: SHARXS HTI 400 W/D3/75

Electrical Data

• Nominal wattage: 400 W
• Nominal voltage: 50 V
• Ignition voltage: 3.0 / 25 kVp
• Nominal current: 8.5 A
• Type of current: AC

Photometric Data

• Luminance: 55000 cd/cm²
• Nominal luminous flux: 26000 lm
• Color temperature: 7500 K
• Color rendering index Ra: 80
• Light center length (LCL): 57.5 mm

Physical Attributes & Dimensions

• Electrode gap (cold): 3.0 mm
• Diameter: 18.0 mm (0.709 in)
• Length: 136.0 mm
• Product weight: 30.00 g

Operating Conditions

• Burning position: Any
• Max. permitted ambient temp. pinch point: 450 °C
• Maximum permitted pinch temperature: 450 °C

Lifetime Data

• Nominal lifetime: 1000 hr
