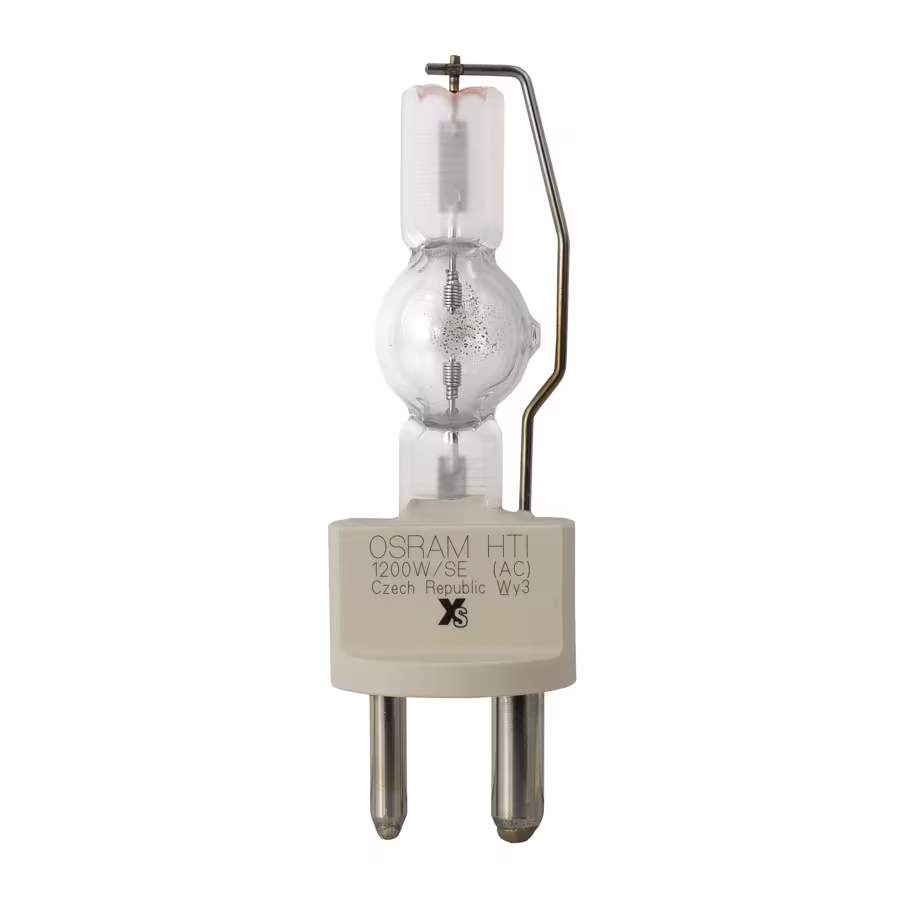

Osram | HTI 1200W/SE GY22 1X1

Osram | HTI 1200W/SE GY22 VS1

Features

• High luminance
• High luminous efficacy and efficiency

• Product number (Americas): 54141
• Product name (Americas): HTI 1200 W/SE XS 1/CS 1/SKU
• Family brand: HTI
• Product remark: SE = Single ended/XS = eXtreme Seal (maximum permissible foil temperature 450 °C)
• Global order reference: HTI 1200 W/SE XS

Electrical Data

• Nominal wattage: 1200 W
• Nominal voltage: 95 V
• Ignition voltage: 4.5 / 25 kVp
• Nominal current: 13.8 A
• Type of current: AC

Photometric Data

• Luminance: 26000 cd/cm²
• Nominal luminous flux: 105000 lm
• Luminous efficacy: 85 lm/W
• Color temperature: 5400 K
• Color rendering index Ra: > 90
• Light center length (LCL): 59.0 mm

Physical Attributes & Dimensions

• Electrode gap (cold): 7.0 mm
• Lamp base: GY22
• Diameter: 29.0 mm
• Diameter (in): 1.142 in
• Length: 135.0 mm
• Product weight: 100.00 g

Operating Conditions

• Burning position: Other
• Cooling: Forced
• Max. permitted ambient temp. pinch point: 450 °C

Lifetime Data

• Nominal lifetime: 750 hr
