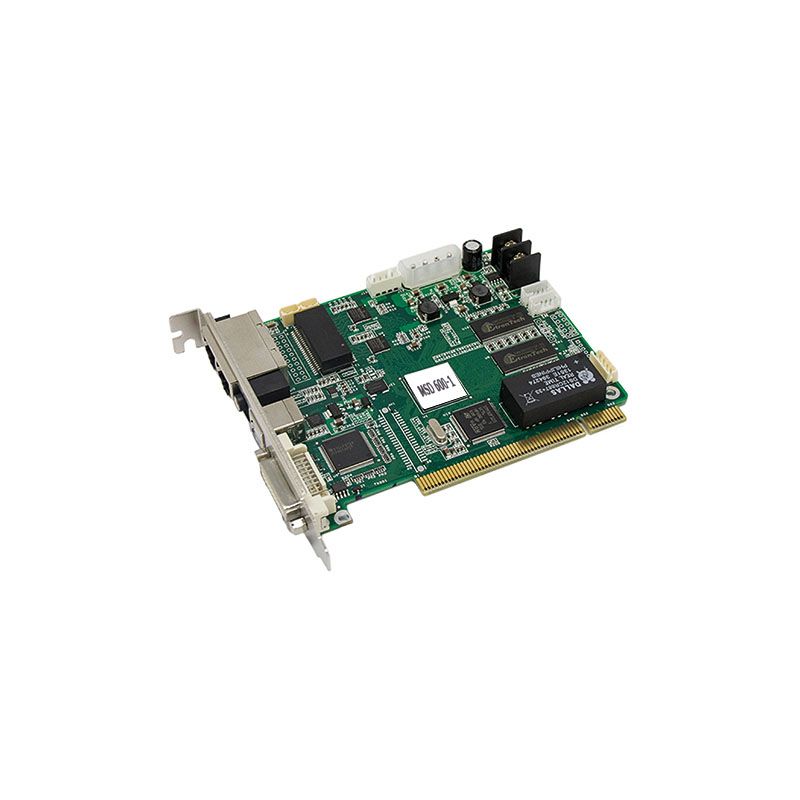

NovaStar - MSD600-1

NovaStar - MSD600-1

The MSD600 is a sending card developed by NovaStar. It supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs. A single MSD600 supports input resolutions up to 1920×1200@60Hz. The MSD600 communicates with PC via type-B USB port. Multiple MSD600 units can be cascaded via UART port. As a highly cost-effective sending card, the MSD600 can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

Features

• HDMI/DVI input;
• HDMI/extermal audio input;
• 12bit/10bit/8bit HD video source;
• Resolution supported:2048×1152 / 1920×1200 / 2560×960;
• Resolution supported:1440×900; (12bit/10bit)

Electrical Specifications

• Input voltage: DC 3.3 V to 5.5 V
• Rated current: 1.32 A
• Rated power consumption: 6.6 W

Operating Environment

• Temperature: –20°C to +75°C
• Humidity: 10% RH to 90% RH, non-condensing

Physical Specifications

• Dimensions: 137.9 mm × 99.7 mm × 39.0 mm
• Net weight: 125.3 g (Note: It is the weight of a single card only.)

Packing Information

• Cardboard box: 335 mm × 190 mm × 62 mm
• Accessories: 1x USB cable, 1x DVI cable
• Packing box: 400 mm × 365 mm × 355 mm
