NovaStar | MCTRL700 - Sending Card

NovaStar - MCTRL700

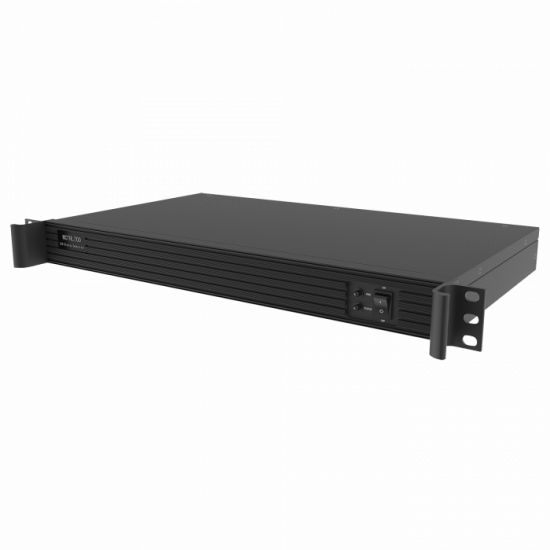

The Novastar MCTRL-700 is a 6-output sender box for easily setting up your LED screen, suitable for fixed and mobile installations. Its HDMI and DVI input ensure an easy and reliable connection for playing your content on your LED screen without big hassles. Configured settings can be saved for plug-and-play use. One Novastar MCTRL-700 can handle up to 2.3 million pixels with a maximum resolution of 1920 x 1200. Multiple units can be cascaded to form one uniform control in case you need to control more pixels.

Features:

• 6x Gigabit Ethernet output sender box
• HDMI, DVI and audio input
• 8/10/12-bit Colour Depth
• Full HD pixel capacity
• Control up to 2.3 million pixels

Inputs

• Stereo Inputs: 1
• Stereo Input Connector: TRS balanced 3.5 mm
• HDMI 1.3: 1
• Single Link DVI: 1

Outputs

• Main Outputs: 6
• HDMI 1.3 (Loop): 1
• Single Link DVI (Loop): 1

Software Specifications

• Control Software: Novastar LCT, Smart LCT

Extra Features

• Scaling Function: No
• GenLock: No

Control and Programming

• Maximum Loading Capacity: 2.3 Mpx
• Maximum Input Resolution: 1920 x 1200
• Control Options: USB

Electrical Specifications and Connections

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 12 W
• Power Connector In: IEC
• Data Connector Out: RJ45

Mechanical Specifications

• Width (Including Handles): 482 mm
• Width (Without Handles): 428 mm
• Height (Including Handles): 44 mm
• Height (Without Handles): 44 mm
• Depth (Including Handles): 269 mm
• Depth (Without Handles): 239 mm
• Weight: 2.6 kg
• Rack Units: 1 U
• IP Rating: IP20 (indoor use only)
• Colour: Black

Thermal Specifications

• Maximum Ambient Temperature: 60 °C
• Minimum Ambient Temperature: -20 °C
• Operating Humidity: 10-90 %rH

Included Items

• Included Cables: IEC cable
