Neutrik | NP2C - Jackplug mono

Neutrik | NP2C - Jackplug mono

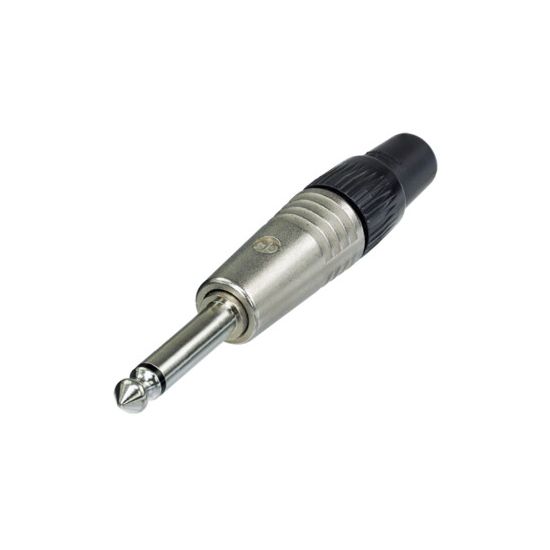

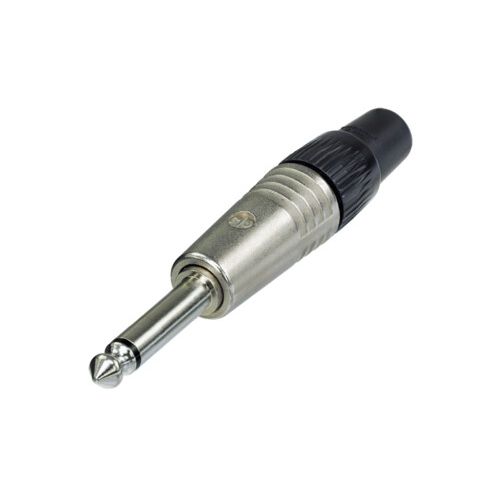

2 pole 1/4" professional phone plug, Nickel housing, Nickel contacts.

Professional phone plug with robust metal shell and chuck type strain relief.

Features

• Rugged diecast metal shell
• Chuck type strain relief for optimum cable protection
• Precision machined one-piece contacts - avoid hook up of tip contact
• Meets all prevailing standards

Product Title: NP2C
Connection Type: Plug
Gender: Male

Electrical:

• Contact resistance: depends on mating connector mΩ
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: depends on mating connector A
• Rated voltage: < 50 V

Mechanical:

• Cable O.D.: 4 - 7 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 1 mm²
• Wiresize: 18 AWG
• Wiring: Solder contacts

Material:

• Bushing: Polyacetal (POM) + PU
• Contact plating: 2 µm Ni (Su)
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)

Environmental:

• Standard compliance: IEC 60603-11 / EIA RS-453
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20 °C to +65 °C
