Neutrik | NO4FDW-A - opticalCON QUAD chassis conn Female

Neutrik | NO4FDW-A - Chassis Connector Quad ADV IP65

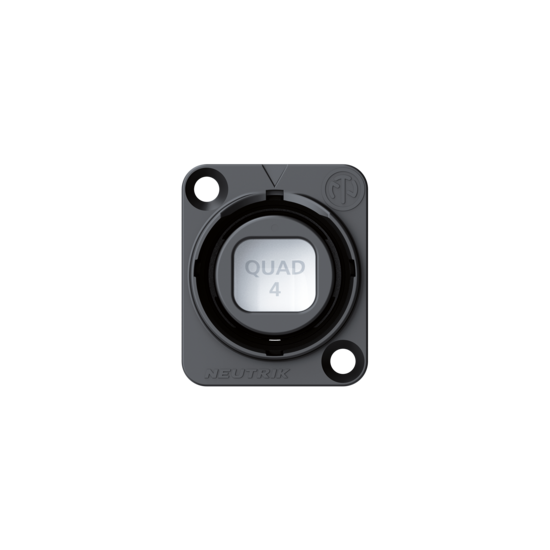

Chassis connector, black chromium plating, front panel mount, IP65 ingress protection in mated condition with SCDP-*.

The chassis connector acts as a "feed-through" allowing simplified installations by connecting four conventional LCs on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection.

Features

• Rugged 4-channel Point-to-Point multichannel routing solution
• Laser protected metal shutter seals dust proof with two-component rubber gasket
• IP65 ingress protection in mated condition with SCDP-*
• Accommodates standard LC connectors on the rear for cost-effective and simple installations
• Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard:
  • Multi mode – black
  • Single mode PC – blue
  • Single mode APC – green

Product title: NO4FDW-A
Gender: Female

Mechanical

• Insertion force: < 45 N
• Withdrawal force: < 45 N
• Lifetime (typ.): 5000 mating cycles
• Locking device: Push-Pull
• Mounting direction: Front mounting
• Chassis shape: D

Material

• Insert: Polyamide (PA 6, PBT 30% GR, PBT 50% GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium

Environmental

• Temperature range: -40 °C to +75 °C
• Protection class: IP65 in mated condition in combination with SCDP-*

Optical

• Insertion loss: < 0.5 dB / connection
