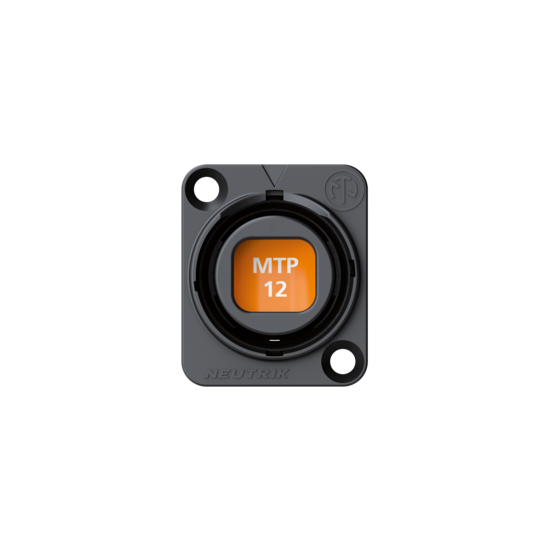

Neutrik | NO12FDW-A - opticalCON MTP12 chassis conn Female

Neutrik | NO12FDW-A - OpticalCON Chassis MTP ADV

The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST. The approved dust shutter ensures high mating cycles and minimal maintenance.

Features

• Ruggedized and dirt-protected 12-channel fiber optic connection system
• For point-to-point multichannel routing
• Laser protective metal shutter seals dust proof with two-component rubber gasket
• IP65 ingress protection in mated condition with SCDP-*
• Accommodates standard MTP® ELITE male connectors on the rear for simple installation
• Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard
• Multi-mode – black
• Single-mode APC – green

• Product Title: NO12FDW-A
• Gender: Female

Mechanical

• Insertion force: < 45 N
• Withdrawal force: < 45 N
• Lifetime (typ.): 2500 mating cycles
• Locking force: 1000 N
• Locking device: Push-Pull
• Mounting direction: Front mounting
• Chassis shape: D

Environmental

• Temperature range: -40 °C to +75 °C
• Protection class: IP65 in mated condition in combination with SCDP-*

Optical

• Insertion loss: < 0.9 dB / connection
