Neutrik | NL8MPR - speakON 8 Pole Chassis Connector Male

Neutrik | NL8MPR - speakON 8 Pole Chassis Connector Male

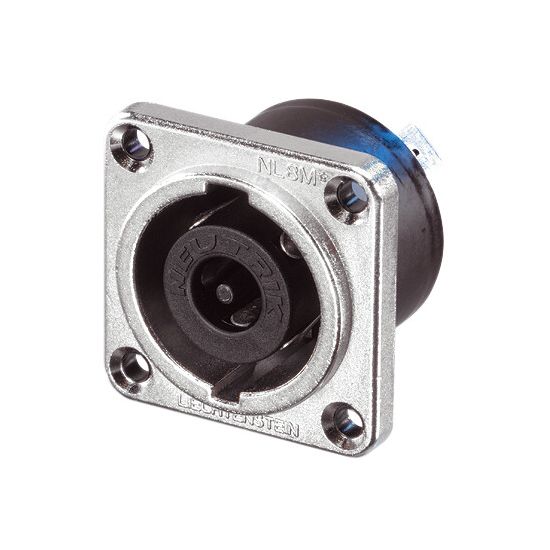

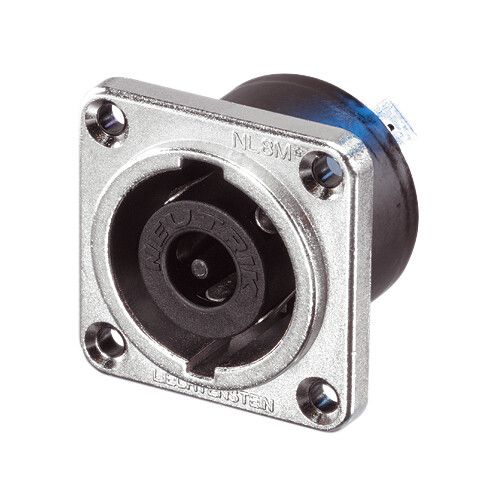

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features

• Current rating 30 A rms
• Glass reinforced materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal flange
• Airtight design - optimized for speaker applications

Title: NL8MPR
Connection Type: SpeakON
Gender: Male

Electrical

• Contact resistance ≤ 3 mΩ (after lifetime)
• Dielectric strength 4 kVdc (peak)
• Insulation resistance > 1 GΩ (after dampheat)
• Rated current per contact 30 A rms continuous
• Rated current per contact 40 A audiosignal, duty cycle 50 %
• Rated voltage 250 V ac
• Attention speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

• Lifetime > 5000 mating cycles
• Locking device Quick Lock
• Chassis shape square G-size flange
• Layout four thru holes

Material

• Contact plating 4 µm Ag
• Contacts Bronze (CuSn6)
• Shell Polyamide (PA 6 30 % GR) Ni

Environmental

• Flammability UL 94 HB
• Solderability Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
