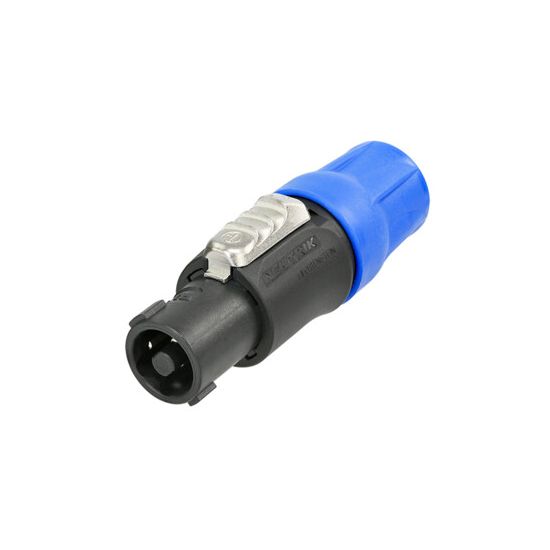

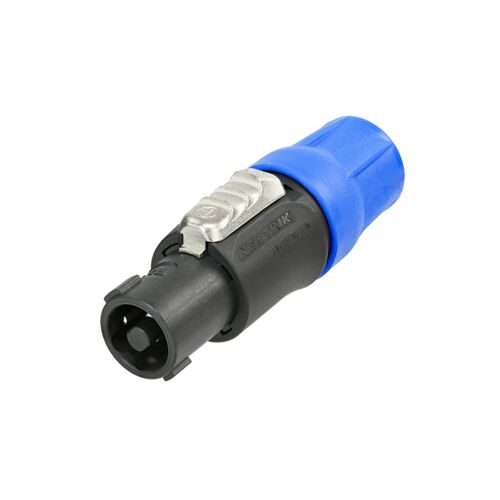

Neutrik | NL4FC - SpeakON Cable Connector 4 Pole

4 pole cable connector, chuck type strain relief.

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Features

  • Up to 30 A rms current rating
  • Reliable and robust, easy and fast to assemble
  • Cable strain relief for 6 - 15 mm cable O.D.
  • Accurate and dependable twist lock latching system "Quick Lock"
  • Glass reinforced material for insert and housing, long-lasting and dependable
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief

Product Title: NL4FC
Connection Type: speakON
Gender: Female

Electrical:

  • Contact resistance: ≤ 3 mΩ (after lifetime)
  • Dielectric strength: 4 kVdc (peak)
  • Insulation resistance: > 1 GΩ (after dampheat)
  • Rated current per contact: 30 A rms continuous
  • Rated current per contact: 40 A audio signal, duty cycle 50%
  • Rated voltage: 250 V AC
  • Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical:

  • Cable O.D.: 6 - 15 mm
  • Cable retention: ≥ 220 N (subject to cable O.D. and material)
  • Lifetime: > 5000 mating cycles
  • Wiresize: 4 mm²
  • Wiresize: 12 AWG
  • Wiring: screw type terminals or soldering
  • Locking device: Quick Lock (latch)

Material:

  • Contact plating: 4 µm Ag
  • Contacts: Brass (CuZn39Pb3)
  • Insert: PBTP 20 % GR
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Polyamide (PA 6 30 % GR)
  • Strain relief: Polyacetal (POM)

Environmental:

  • Flammability: UL 94 V-0
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C

Features:

  • Up to 30 A rms current rating
  • Reliable and robust, easy and fast to assemble
  • Cable strain relief for 6 - 15 mm cable O.D.
  • Accurate and dependable twist lock latching system "Quick Lock"
  • Glass reinforced material for insert and housing, long-lasting and dependable
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
More Information
Brand Neutrik
