Neutrik | NL4FRX - SpeakON Right-angle Connector 4 Pole Fem.
Neutrik | NL4FRX - SpeakON Right-angle Connector 4 Pole Fem.

Neutrik | NL4FRX - SpeakON Right-angle Connector 4 Pole Fem.

List price:
€11.94 Excl. Tax
Your price:
€11.34 Excl. Tax
Your discount: 5%
Last stock:
8 pieces
Art. code
NE-81.0408

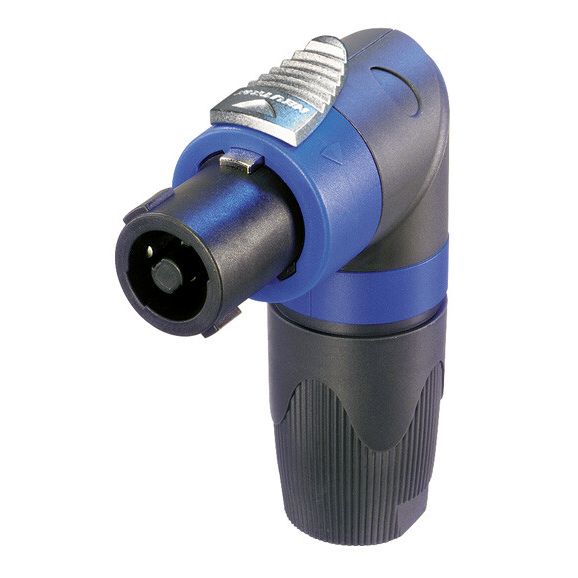

Neutrik | NL4FRX - SpeakON Right-angle Connector 4 Pole Female

4 pole right-angle cable connector, chuck type strain relief, dark grey bushing.

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Features

  • Current rating 40 A rms continuous
  • Up to 50 A audio signal, duty cycle 50%
  • Easy to assemble
  • High impact materials - long-lasting and reliable
  • Easy and extremely precise locking system "Quick Lock"
  • Improved grip on latch
  • 1 piece strain relief, chuck for 6 to 14.5 mm cable O.D.
  • Color coding possible
  • Improved screw-type termination for highest pull-out force
  • Integrated design guarantees "Made by Neutrik®"

Product Title: NL4FRX
Connection Type: speakON
Gender: Female

Electrical:

  • Contact resistance: < 2 mΩ (after lifetime)
  • Dielectric strength: 4 kVdc (peak)
  • Insulation resistance: > 1 GΩ (after dampheat)
  • Rated current per contact: 40 A rms continuous
  • Rated current per contact: 50 A audio signal, duty cycle 50%
  • Rated voltage: 250 V AC
  • Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical:

  • Cable O.D.: 7 - 14.5 mm
  • Cable retention: ≥ 220 N (subject to cable O.D. and material)
  • Lifetime: > 5000 mating cycles
  • Wiresize: 4 mm² / 6 mm² (screw type terminals/soldering)
  • Wiresize: 12 AWG / 10 AWG
  • Wiring: screw type terminals or soldering
  • Locking device: Quick Lock (latch)

Material:

  • Contact plating: 4 µm Ag
  • Contacts: Brass (CuZn39Pb3)
  • Insert: PBTP 20 % GR
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: PBTP 20 % GR
  • Strain relief: Polyacetal (POM)

Environmental:

  • Flammability: UL 94 HB
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
More Information
Brand Neutrik
