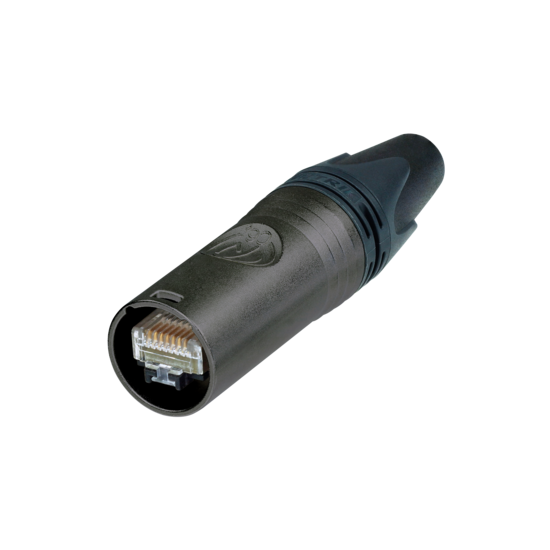

Neutrik | NE8MX6-B-T - EtherCON CAT6A cable conn =1.1mm Male

Neutrik | NE8MX6-B-T

EtherCON CAT6A cable connector self-termination, for insulation diameter ≤ 1.1 mm, black shell

The set NE8MX6 consists of a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG24/1 (solid) or AWG27/7 - AWG24/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

If the insulation diameter is > 1.1 mm please refer to NE8MX6-B.

Features

• Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
• PoE++ compliant according to 802.3bt Type4
• IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
• Rugged latch lock system million fold proven
• Intermateable with the existing etherCON CAT5 range
• Unique Neutrik chuck-type strain relief

• Product: NE8MX6-B-T
• Connection Type: etherCON
• Gender: Male

• Dielectric strength: 1 kVdc
• Insulation resistance: > 0.5 GΩ
• Rated current per contact: 1.5 A
• Transmission performance: CAT6A, acc. TIA/EIA rating
• Transmission performance: CAT6A, acc. IEC/ISO/EN rating
• Power over Ethernet: PoE++ acc. IEEE 802.3bt

• Cable O.D.: 7.0 mm - 9.5 mm
• Lifetime: > 1000 mating cycles
• Wiresize (solid): AWG 26/1 – AWG 24/1
• Wiresize (stranded): AWG 27/7 – AWG 24/7
• Locking device: Latch lock
• Insulation diameter: 0.85 - 1.1 mm

• Bushing: PA / PU
• Contact plating: Au
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell coating: Black KTL
• Strain relief: POM

• Protection class: IP 65 (in combination with NE8FDX-*6-W)
• Temperature range: -40 °C to +70 °C
