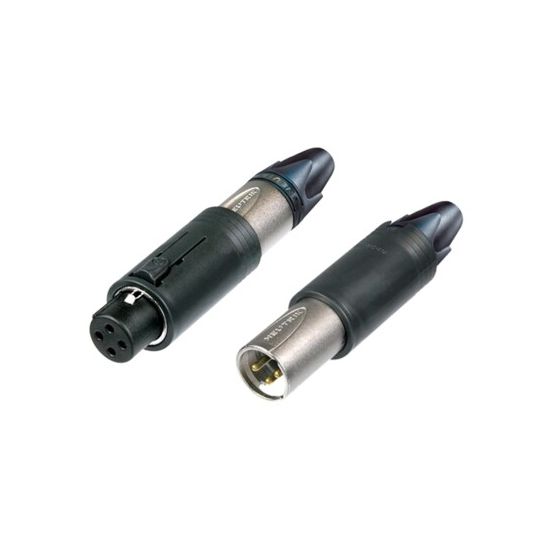

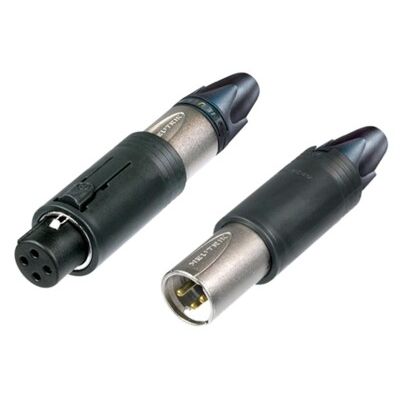

Neutrik | NC3FM-C - ConvertCON 3P XLR cable conn nickel

Neutrik | NC3FM-C

World's first 3 pole unisex XLR cable connector

Features

• World's first unisex XLR
• 3 pole male and female cable connector in one housing
• Easy selectable gender - converted by sliding housing back and forth
• Substitute adapters, ideal as an emergency kit
• With all benefits of the XLR XX series

• Product: NC3FM-C
• Connection Type: XLR
• Gender: Female

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

• Cable O.D.: 3.5 - 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 2.5 mm²
• Wiresize: max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock

• Boot: Polyurethan
• Contact plating: 0.2 µm Au
• Contacts: Brass (CuZn39Pb3) male
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel
• Strain relief: Polyacetal (POM)

• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
