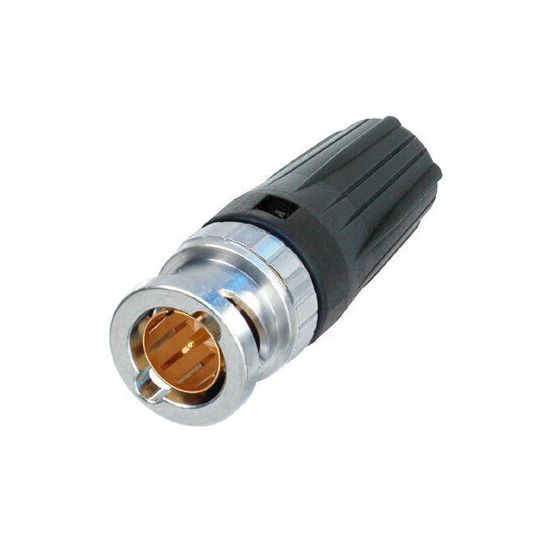

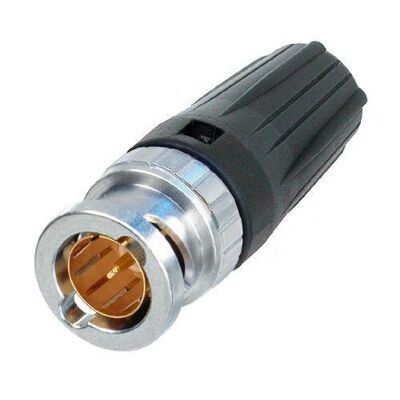

Neutrik | NBNC75BFG7 - RearTWIST HD BNC Cable Connector Male

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra

Crimp size:
Pin: 1.6 mm (square)
Shield: 5.0 mm (hex)

Features
  • “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue – these connectors turn from the back and not the front
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Leading area avoids tilting due to side forces to protect contacts from deformation – guarantees a lifetime of min. 1000 mating cycles
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies

Product: NBNC75BFG7
Connection Type: BNC 75 Ω
Gender: male

Electrical

  • Contact resistance: ≤ 3 mΩ (inner)
  • Contact resistance: ≤ 2 mΩ (outer)
  • Dielectric strength: 1,5 kVdc
  • Impedance: 75 Ω
  • Insulation resistance: > 5 GΩ
  • Rated voltage: <50 V
  • VSWR: ≤1.050/>32 dB up to 1 GHz
  • VSWR: ≤1.065/>30 dB up to 2 GHz
  • VSWR: ≤1.100/>26 dB up to 3 GHz

Mechanical

  • Cable O.D.: 4.7 mm
  • Cable retention: > 30 N (Center)
  • Crimp size: 5 Hex crimp (shield) acc. MIL22520/5-43(B)
  • Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles

Material

  • Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
  • Insert: PTFE
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Optalloy®

Environmental

  • Temperature range: -30 °C to +85 °C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2
