Neutrik | NAHDMI-W - HDMI Chassis D Adapter Female

Neutrik | NAHDMI-W - HDMI Chassis D Adapter Female

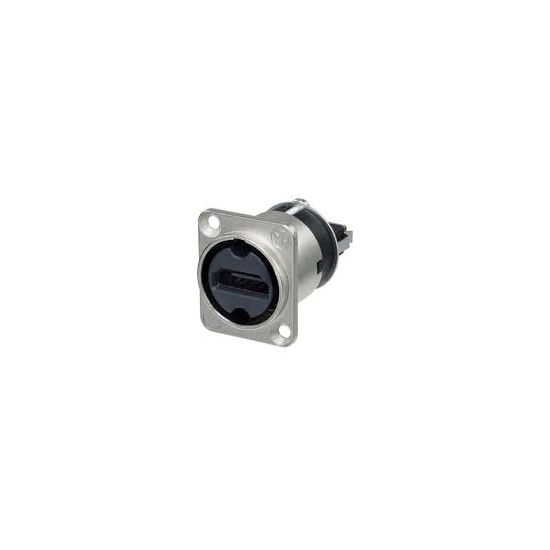

HDMI feedthrough adapter, black D-shape housing.

Neutrik's HDMI solution for the transmission of any digital TV and PC video format including high-definition video (HDTV) can be integrated in networks very easy.

Features

• To transmit any digital TV and PC video format including high-definition video (HDTV)
• HDMI feedthrough adapter with 19 pole HDMI receptacle at both ends
• IP65 ingress protection in mated condition with NKHDMI-* and SCDP-* sealing gasket
• Universally accepted standard D-shape housing
• Removable screen to chassis grounding
• Shielded system - high noise immunity and EMI protection due to continuous 360 degree shield

Product: NAHDMI-W-B
Connection Type: Adapter
Gender: female

Mechanical

• Locking device: Push-Pull
• Mounting direction: Front or rear mounting (max 2 mm panel thickness)
• Chassis shape: D
• Lifetime: > 1000 mating cycles

Material

• Contact plating: Au
• Contacts: Bronze (CuSn)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium

Environmental

• Flammability: UL 94 V-0
• Standard compliance: HDMI 2.0
• Temperature range: -25 °C to +85 °C
