Martin - P3-300 System Controller

Martin - P3-300 System Controller

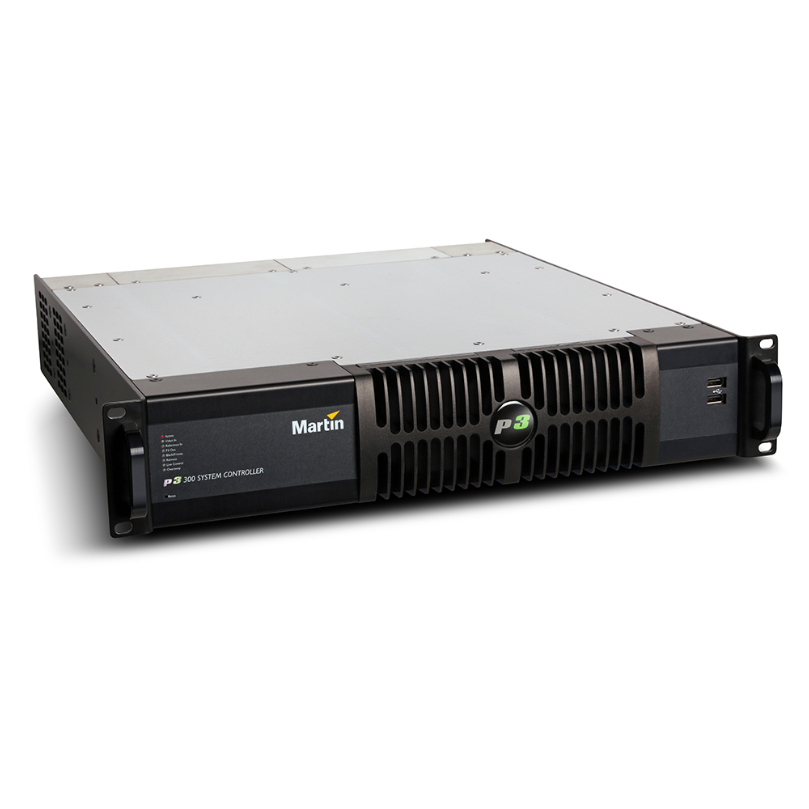

The P3-300 System Controller combines the award-winning and intuitive P3 workflow with a brand new high-performance video processing engine. It can control the entire range of Martin LED Video products, ranging from traditional video panels to creative elements such as strips and dots. The P3-300 is equipped with a DVI input, a component video input and two SDI input ports (up to 3G). The output capacity of 2.000.000 pixels allows even more products to be driven from a single controller.

• Powerful and ergonomic LED Video Controller
• Compatible with all Martin LED video products (panels and creative products)
• Integration with lighting controls (DMX, Art-NET) and automation systems

Key features:

• Drives up to 2.000.000 pixels
• Built-in scaler and mapper
• DVI-D input up to 1920x1080
• 2x 3G-SDI input up to 1920x1080
• Analog video input up to 1920x1080
• Dedicated bi-level and tri-level sync input for genlock
• Built-in GUI (Graphical User Interface) including easy setup wizards
• Real time visualization of the video mapping within the GUI (Graphical User interface)
• Most user-friendly LED Video processor on the market
• Compatible with all Martin LED Video products (panels and creative products)
• Integration with lighting controls (DMX & Art-NET) and automation systems
• All connected products report status and problems back to the controller for easy monitoring and maintenance
• Showfiles compatible with all products within the P3 System Controller family (including the P3-PC offline editor)

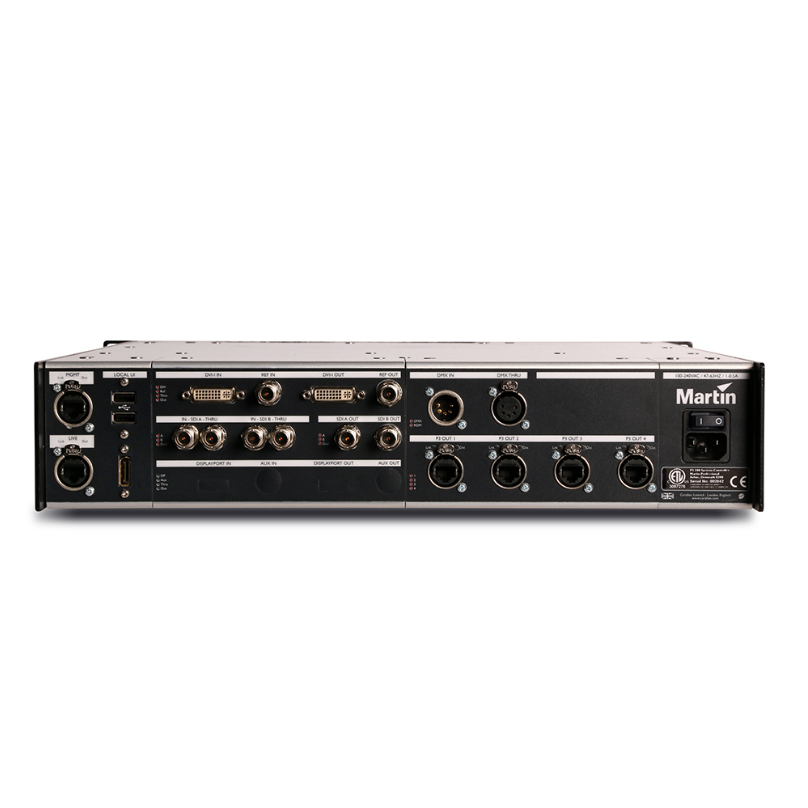

Connections:

• Power input: IEC socket with integrated power switch
• P3 data in/out: etherCON socket
• Network (remote management, Art-Net and Kinesys K2/Vector): etherCON socket
• DVI video in: DVI-D (via DVI-I connector)
• DVI video thru: DVI-D (via DVI-I connector)
• DMX in: 5-pin locking XLR
• DMX thru: 5-pin locking XLR
• Peripherals and USB memory devices: 4 x USB 2.0 ports
• User interface monitor: DisplayPort++ (compatible with adapters to DVI, HDMI and VGA, not supplied)

Electrical:

• AC power: 100-240 V, 47-63 Hz
• Power supply unit: Integrated, universal multi-voltage

Thermal:

• Cooling: Forced air
• Maximum ambient temperature (Ta max.): 50° C (122° F)
• Minimum ambient temperature (Ta min.): 0° C (32° F)
• Total heat dissipation (calculated, +/- 10%): 685 BTU/hr.

Physical:

• Width: 482 mm (19.0 in.)
• Height: 90 mm (3.5 in.) rackmount 2U
• Depth: 508 mm (20.0 in.)
• Weight: 9.0 kg (19.8 lbs.)

Control/User interface:

• User interface : SXGA (1280 x 1024) or better monitor (VGA, DVI, HDMI or DP), USB keyboard, USB mouse
• Device status: Status indicator LEDs

DVI video input:

• Supports all resolutions up to 1920x1080
• Supports both RGB and YCbCr, progressive scan only

Component Video input:

• Via DVI-I breakout cable (not supplied)
• Supports all resolutions up to 1920x1080
• Supports progressive and interlaced scan
• 10-bit color sampling
• Supports composite NTSC/PAL/Secam, S-Video (Y/C) and component YPbPr w/Sync-on-G (Y)
• Supports tri-level sync

SDI Video input:

• 2 x SD-SDI 525/60 (NTSC) or 625/50 (PAL) per SMPTE 259M
• 2 x HD-SDI 720p per SMPTE 296M or 1080i per SMPTE 292M
• 1 x dual-link HD-SDI per SMPTE 372M
• 2 x 3G-SDI per SMPTE 424M (compatible with level A and level B sync)

Genlock input:

• Supports bi-level and tri-level sync

Video processing:

• Controller pixel processing capacity: 2,080,000 pixels (expandable by adding P3-300s)*
• Controller fixture capacity: 2000 fixtures (expandable by adding P3-300s)*
• Maximum workspace area: 2,073,600 pixels
• Maximum active capture area: 2,073,600 pixels
• System processing depth: 16 bits per color (48 bits per pixel)
• System latency, DVI: 2 frames
• System latency, SDI/component progressive: 2 frames
• System latency, SDI/component interlaced: 3 frames
• Latency between first and last panel: None
• DMX 512 / Art-Net real-time controllable parameters:
• Up to 32 universes of Art-Net input*
  Global intensity
  RGB intensity
  Color temperature
  X-Y video image position
  Video image rotation
  Freeze
  Blackout
  Test pattern selection
  Preset recall (incl. video input selection and scaling)
• Kinesys K2 / Tait Navigator real-time controllable parameters:X-Y video image position
  Video image rotation
• Image rotation
  Scaling (global and mixed pixel pitch)
  De-interlacing
  Gamma curve selection and adjustment
  Real-time panel content remapping
  Real-time color temperature and color space control
  Real-time preview of video input and mapped canvas
  *See also P3 System Controller Capacity Info Note on Support & Downloads page
