Martin - MAC Aura XB
List price:
€3,551.66
Excl. Tax
Your price:
€3,303.04
Excl. Tax
Your discount:
7%
Delivery: Ca. 8 working days*

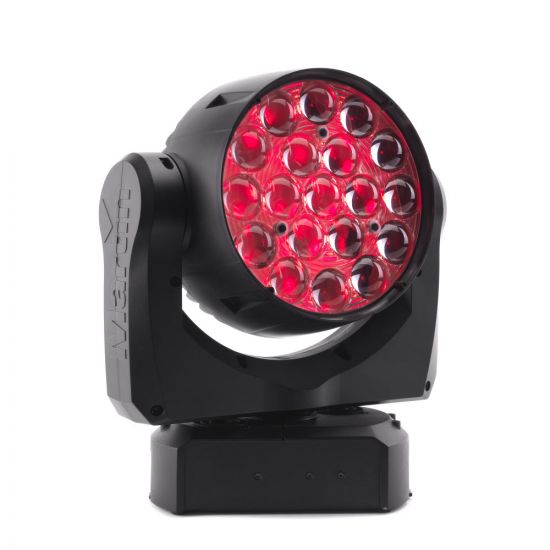

Martin - MAC Aura XB
In cardboard.
The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.
Super bright single lens wash with fully premixed color
Compact design and low weight
High efficiency, low power consumption, long service life
Features
Super-bright single-lens wash with fully premixed color
Broad color palette, RGBW color mixing
Eye-candy Aura Effect™
Uniform shades
Built-in FX engine
10 to 60° uniform zoom
6000 Lumens output
Rapid movement
Compact, low weight design (6.5 kg)
High efficiency, low power consumption, long lifetime
Physical
Length: 302 mm (11.9 in.) across yoke
Width: 302 mm (11.9 in.) across yoke
Height: 360 mm (14.2 in.), head straight up
Weight: 6.5 kg (14.4 lbs.) without accessories
Dynamic Effects
Beam color mixing: RGBW
Aura (secondary lens array illumination) color mixing: RGB
Beam color temperature control: CTO, variable 10,000 - 2500 K
Beam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
Pre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combined
Electronic dimming: Independent beam and aura, four dimming curve options
Pan: 540°
Tilt: 232°
Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming
Control systems: DMX, RDM
Control options: Independent or synchronized Beam and Aura control
Control resolution: 8-bit, with 16-bit control of pan & tilt
Setting and addressing: Control panel with backlit graphic display
DMX channels: 14/25
Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: RS-485
Optics and Photometric Data
Light Source: 19x 15W RGBW LED Array System
LED Refresh Rate: Beam 1200 Hz, Aura 4395 Hz
Minimum LED Lifetime: 50,000 hours (to >70% luminous output)*
Total luminous output (wide, one-tenth peak): 6000 lumens
Total luminous output (narrow, one-tenth peak): 4300 lumens
Video compatibility: Designed for use with HD/high-speed video cameras
*Figure obtained under manufacturer´s test conditions
Construction
Housing: High-impact thermoplastic, flame-retardant to UL 94 5VA
Color: Black
Protection rating: IP20
Installation
Mounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracket
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 200 mm (8.0 in.)
Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.)
Connections
AC Power: Neutrik PowerCON TRUE1 NAC3PX dual socket
AC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connector
AC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connector
DMX and RDM data in/out: 5-pin locking XLR
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current: 10.7 A
Maximum total power consumption: 400 W
Typical power consumption, all effects static, zero light output: <25 W
More Information
Brand
Martin Professional
