L-Acoustics - A15 Focus

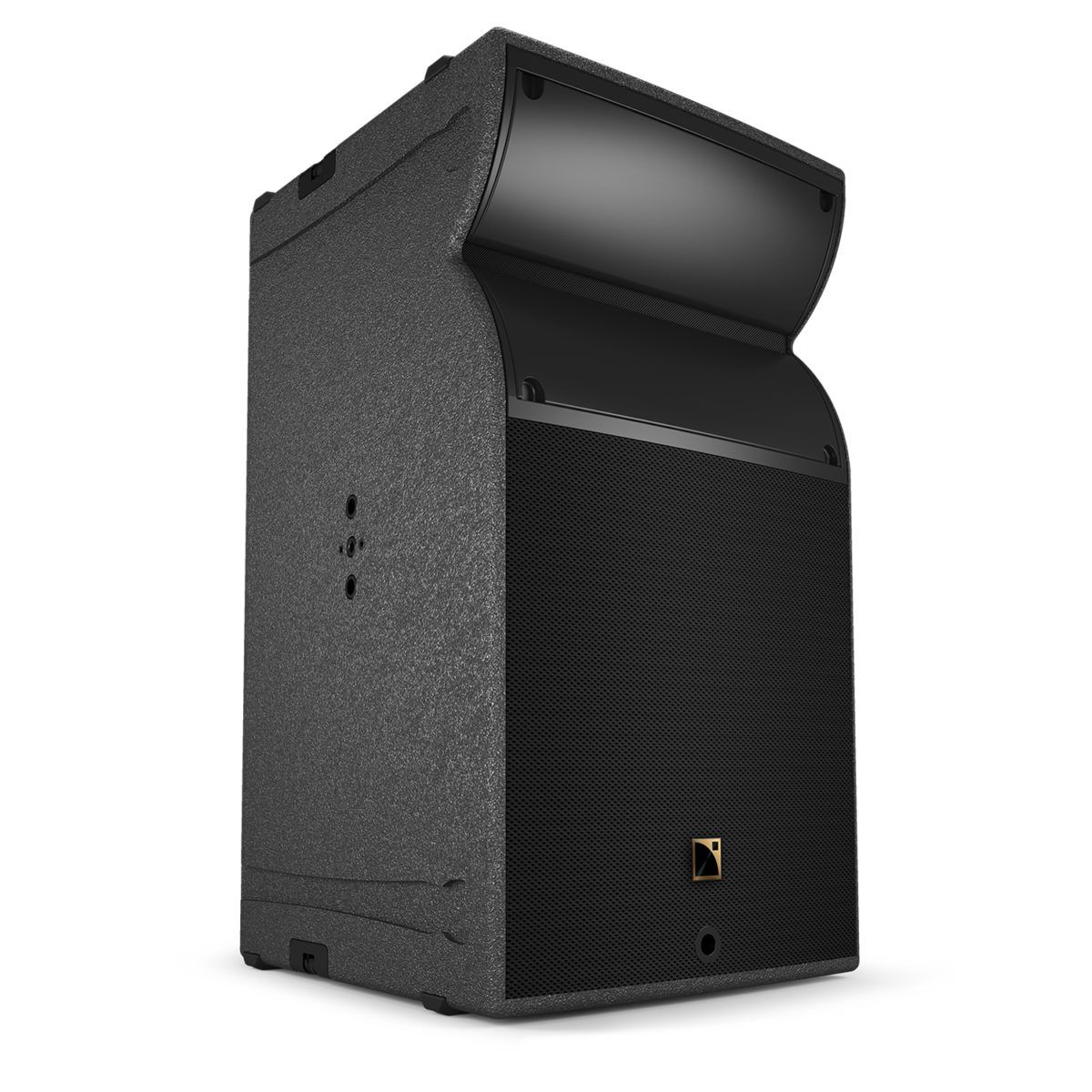

A15 Focus is a medium throw loudspeaker designed for production applications. Part of the multifunctionnal A15 family, the passive 15“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance.

With a tightly-controlled 10° enclosure coverage, A15 Focus boasts an impressive ouptut of 144 dB and ensures projection up to 45 m.
Panflex allows users to adapt the directivity to the audience geometry and ensure exceptional frequency response stability.

Combinations of A15 Focus and A15 Wide can be flown or stacked to form a vertical line source.  A15 Focus can also be used individually as a configurable directivity point source for front fill or delay applications where a narrow coverage is required.

A15 Focus provides the low frequency contour of a large concert system and KS21 subwoofer further reinforces the contour and extends
the bandwidth to 29 Hz. A15 Focus is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution for the world’s biggest stages.

Description

• 2-way passive constant curvature WST 10°,  amplified by LA4X / LA8 / LA12X

Usable bandwidth (-10 dB)

• 41 Hz - 20 kHz ([A15])

Maximum SPL1

• 144 dB ([A15])

Nominal directivity

• Enclosure: 10°
• Panflex: 70°/110° symmetric or 90° asymmetric

Transducers

• LF: 1 × 15’’ neodymium cone driver
• HF: 1 × 3’’ diaphragm neodymium compression driver

Acoustical load

• LF: Bass-reflex, L-Vents
• HF: DOSC waveguide, Panflex

Nominal impedance

8 Ω

Connectors

• IN: 1 × 4-point speakON
• LINK: 1 × 4-point speakON

Rigging and handling

• Flush-fitting two-point rigging system 2 handles, 8 corner stops and 2 ground runners

Safety

• 1 DIN580-compatible M8 insert

Weight (net)

• 35 kg/77 lb

Cabinet

• Premium grade Baltic beech and birch plywood

Front

• Coated steel grill Acoustically neutral 3D fabric

Rigging components

• High grade steel with anti-corrosion coating

Finish

• Dark grey brown Pantone 426 C

IP

• IP55
