GeoBox - G406 - Video wall controller

GeoBox - G406 - Video wall controller

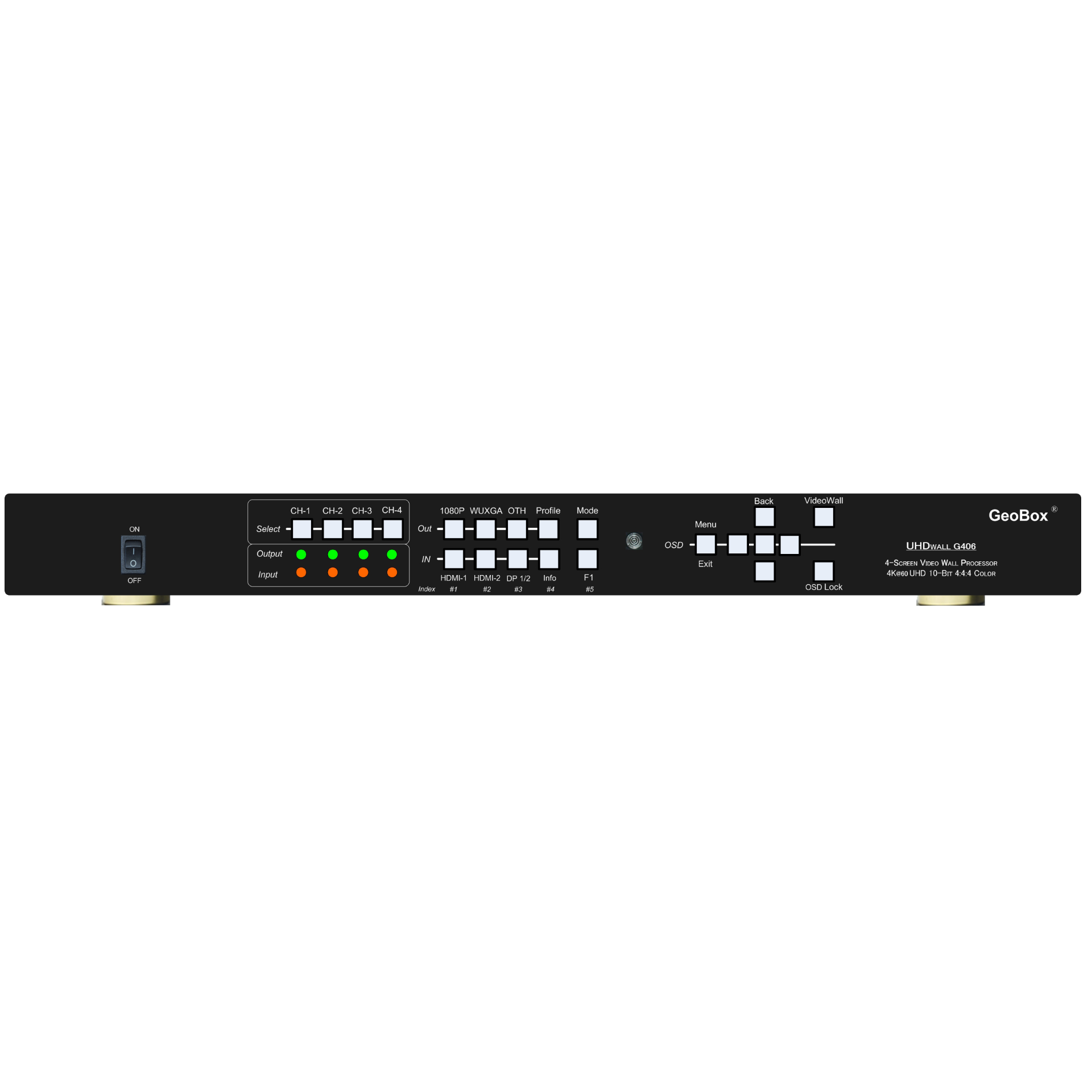

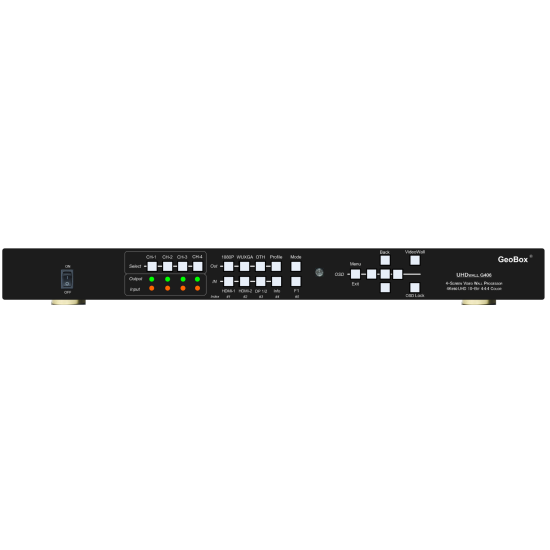

GeoBox G406 is new generation DCi/UHD 60fps four screens video wall controller to allow great freedom in creating any scale video wall with multiple contents and different LCD arrays. It incorporates two HDMI 2.0, two DisplayPort 1.2 inputs and two HDMI 2.0 loop-through ports with HDCP 2.2/1.4 as well as four synchronized Full HD outputs. Each output has independent image rotation/flip, scaling, cropping and color adjustment. Support true 8k/4k video wall through multiple 4k inputs and multiple units of G406.

G406 is designed with matrix switcher function to display 1, 2, 3 or 4 independent contents on four LCD video wall. Two HDMI 2.0 loop-through ports are designed for multiple unit cascade and allows user to select different contents for entire video wall.It is pure hardware, standalone system with easy-of-use. All operations can be implemented through front panel keypads, IR remote controller, USB, RS232 or Ethernet. No additional PC, Zero Client, appropriate device or software tool is required.

• Input: 2x HDMI 2.0b for all channels, 1x DP1.2a for CH 1/2, 1x DP1.2a for CH 3/4
• Input HDCP: HDMI: V2.2/V1.4, DP: V1.3
• Max. input resolution: 4k/2k 60fps & 7680x1200 @30Hz
• Output: 4x HDMI up to 1080P & WUXGA 2x HDMI 2.0 loop out ports for multiple unit cascade & daisy chain connection
• Support non-VESA STD input timings
• Selectable output up to 1920x1200 60Hz
• 10-bit processor, frame rate conversion
• 4:4:4 Chroma sampling, 30 Color bits, 12-bit RGB gamma CLUT
• Support sRGB & xvYCC 8/10/12-bit deep color processing.
• Flexible aspect ratio adjustment in each edge up to +_ 900 pixels.
  3:2/2:2 cadence, low angle smooth algorithm, high quality scaling engine
• 50Hz in/out to avoid video artifact.
• 3D motion adaptive de-interlace
• Frame lock for synchronized outputs
• Frame rate conversion.
• High Dynamic Range (HDR) support: SMPTE ST-2084, SMPTE ST-2086
• Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel
• 90/270 rotation only supports up to 4k/30Hz.
• Matrix switch for multi-window display
• Embedded HDMI/DP audio in each output
• Selectable and programmable EDID
• ESD Protection: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
• DC 12V/1.1A, max. 13w, (100-240 VAC PSU)
• Working environment: 45〫C, 10-90% RH
• Control: Front panel keypads, IR, RS232, USB,Ethernet
• Dimensions: 440mm*194mm*45mm, Weight: 2.2kg
• CE/FCC/RoHS/Green Certified
• 2 Year Warranty, paid extension is available
