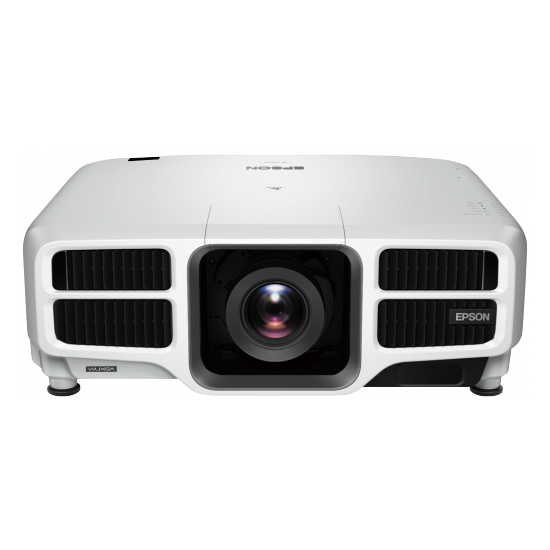

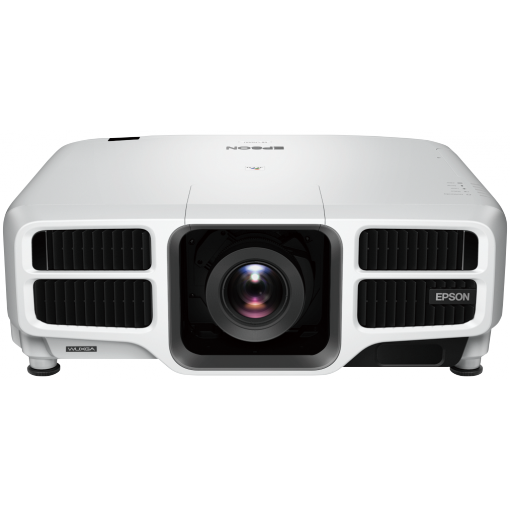

Epson - Laserprojector EB-L1490U, 9.000 Lumens, WUXGA

Epson - EB-L1490U

The EB-L1490U installation laser projector offers powerful 9,000-lumen WUXGA performance with rich, vivid colours, for large rooms and venues, as well as reliable fit and forget performance. With flexible installation and low maintenance, this 4K-enhanced projector offers a perfect solution for scenarios where only maximum performance and durability will do.

• Laser light source technology: Outstanding brightness and colour, with fit-and-forget reliability
• HD images with 4K enhancement: Exceptional sharpness, clarity and detail for crisp images and legible text
• Versatile new software: Set up multiple projector installations and use advanced projection techniques
• Flexible 360° installation: True flexibility without distortion or loss of brightness

Technology

• Projection System: 3LCD Technology
• LCD Panel: 1.03 inch with C2 Fine


• Colour Light Output: 9,000 Lumen- 6,300 Lumen (economy) in accordance with IDMS15.4
• White Light Output: 9,000 Lumen - 6,300 Lumen (economy) in accordance with ISO 21118:2012
• Portrait Colour Light Output: 9,000 lm
• Portrait White Light Output: 9,000 lm
• Resolution: WUXGA, 1920 x 1200, 16:10
• High Definition: 4K enhancement
• Aspect Ratio: 16:10
• Contrast Ratio: 2,500,000 : 1
• Native Contrast: 2,000 : 1
• Light source: Laser
• Laser Light source: 20,000 Hours Durability High, 30,000 Hours Durability Eco
• Keystone Correction: Manual vertical: ± 45 °, Manual horizontal ± 30 °
• Colour Reproduction: upto 1.07 billion colours

Optical

• Projection Ratio: 1.57 - 2.56:1
• Zoom: Motorized, Factor: 1 - 1.6
• Projection Lens Zoom Ratio: 1.57 - 2.56 : 1
• Lens: Optical
• Lens Shift: Motorized - Vertical ± 60 %, horizontal ± 18 %
• Lens position memory: 10 positions
• Image Size: 60 inches - 1,000 inches
• Projection Distance Wide: 2 m - 17.2 m
• Projection Distance Tele: 3.3 m - 27.8 m
• Projection Distance Wide/Tele: 1.99 m - 27.77 m
• Projection Lens F Number: 1.8 - 2.5
• Focal Distance: 36 mm - 57.35 mm
• Focus: Motorized

Connectivity

• Interfaces: Stereo mini jack audio in (3x), Stereo mini jack audio out, HDBaseT, BNC in, HDMI in, DVI in, VGA out, VGA in, Wired Network, RS-232C, USB 2.0 Type B (Service Only), HD-SDI, Wireless LAN b/g/n (2.4GHz) (optional)
• Epson iProjection App: Ad-Hoc / Infrastructure

Advanced Features

• Security: Kensington lock, Security bar, Wireless LAN unit lock, Wireless LAN security, Password protection
• Features: 4K enhancement, Absolute Black, Auto calibration, Customizable user logo, Frame interpolation, Integrated camera for image calibration & image capture, Lens position memory
• Video Colour Modes: Cinema, Dynamic, Presentation, DICOM SIM, Multi Projection, BT709
• Projector control: via: AMX, Crestron (Network), Extron

General

• Energy Use: 626 Watt, 512 Watt (economy), 0.3 Watt (standby), On mode power consumption as defined in JBMS-84 554 Watt
• Heat Dissipation: 2,128 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 586‎ x 492 x 211 mm (Width x Depth x Height)
• Product weight: 23.7 kg
• Noise Level: Normal: 37 dB (A) - Economy: 30 dB (A) (4K enhancement OFF)
• Temperature: Storage -10° C - 60° C
• Humidity: Operation 20% - 80%, Storage 10% - 90%
• Included Software: Epson Projector Management Software, EasyMP Multi PC Projection
• Options: HDBaseT Transmitter, Quick wireless USB key, Wireless LAN unit
• What's in the box: CD Manual, Cable cover, VGA cable, Power and signal cable (3 m), Quick Start Guide, Remote control incl. batteries
• Room Type / Application: Boardroom, Large Meeting Room / Auditorium, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
• Positioning: Ceiling Mounted, Flying Frame
• Colour: White
