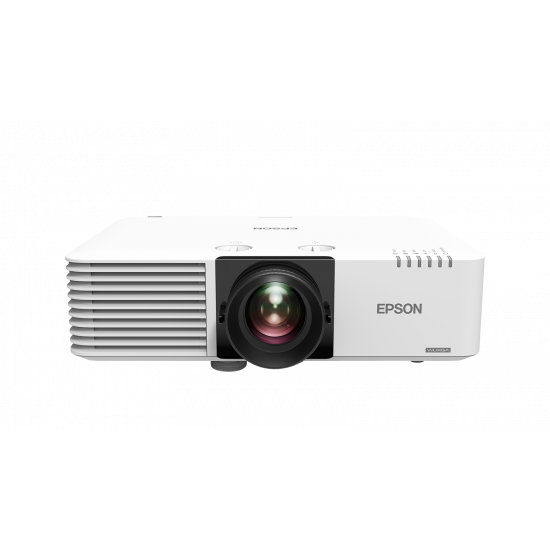

Epson - EB-L630U - Projector with Fixed Lens

Epson - EB-L630U - Laser display solution

The EB-L630U fixed lens laser projector offers 6,200 lumens and is ideal for education, corporate, retail and visitor attractions.

• 6,200 lumens
• Wide lens shift
• Built-in Wi-Fi
• Large, scalable display

As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L630U delivers even more effective, practical and creative display applications across a number of different industries.

Overview
Bright, cost-effective display solutions
Providing bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L630U offers impressive 6,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L630U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.

Enhanced connectivity
This display solution offers many different ways to connect, show multiple
sources simultaneously and present wirelessly. The EB-L630U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.

Easy and flexible installation
This stylish and compact projector supports 360 degree installation without compromising the display quality and supports 16:6 ultra-widescreen, HDMI output and edge blending for multi-projector installs.

Key Features

• 6,200-lumen brightness
• Crisp images and bright colours, even in well-lit rooms
• WUXGA resolution
• Sharp Full HD images for excellent clarity
• Futureproofed connectivity options
• 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
• Easy, flexible installation
• Lightweight and compact design with wide lens shift
• Support social distancing
• Scalable display size of up to 500 inches

Technology

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0,67 inch with C2 Fine


• Color Light Output: 6.200 Lumen- 4.340 Lumen (economy) In accordance with IDMS15.4
• White Light Output: 6.200 Lumen - 4.340 Lumen (economy) In accordance with ISO 21118:2012
• Resolution: WUXGA, 1920 x 1200, 16:10
• High Definition: Full HD
• Aspect Ratio: 16:10
• Contrast Ratio: Over 2.500.000 : 1
• Light source: Laser
• Laser Light source: 20.000 hours Durability High, 30.000 hours Durability Eco
• Keystone Correction: Manual vertical: ± 30 °, Manual horizontal ± 30 °
• Colour Video Processing: 10 Bits
• Colour Reproduction: Upto 1.07 billion colours

Optical

• Throw Ratio: 1,35 - 2,20:1
• Zoom: Manual, Factor: 1 - 1,6
• Projection Lens Zoom Ratio: 1,35 - 2,2 : 1
• Lens: Optical
• Lens Shift: Manual - Vertical ± 50 %, horizontal ± 20 %
• Screen Size: 50 inches - 500 inches
• Projection Distance Wide: 1,4 m - 14,8 m
• Projection Distance Tele: 2,4 m - 23,8 m
• Projection Distance Wide/Tele: 1,44 m - 23,84 m
• Projection Lens F Number: 1,5 - 1,7
• Projection Lens Focal Length: 20 mm - 31,8 mm
• Projection Lens Focus: Manual

Connectivity

• Interfaces: USB 2.0 Type A, USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/n (2.4GHz), Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Stereo mini jack audio out, Stereo mini jack audio in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback
• Epson iProjection App: Ad-Hoc / Infrastructure
• Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

• Security: Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
• 2D Colour Modes: Dynamic, Cinema, Presentation, sRGB, DICOM SIM
• Other features: A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App
• Video Color Modes: Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection
• Projector control: via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

• Power consumption: 345 Watt, 258 Watt (economy), 0,3 Watt (standby)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product dimensions: 440‎ x 339 x 136 mm (Width x Depth x Height)
• Product weight: 8,4 kg
• Noise Level: Normal: 38 dB (A) - Economy: 27 dB (A)
• Supported Temperature: Storage -10° C - 60° C
• Supported Humidity: Operation 20% - 80%, Storage 10% - 90%
  If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.
• Options: Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit
• Loudspeaker: 10 Watt
• What's in the box: Cable cover, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents
• Room Type / Application: Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
• Positioning: Ceiling Mounted, Desktop
• Colour: White
• TCO Certified: For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf

Other

• Warranty: 36 months Carry in
