CLF - Beam 6

CLF - Beam 6

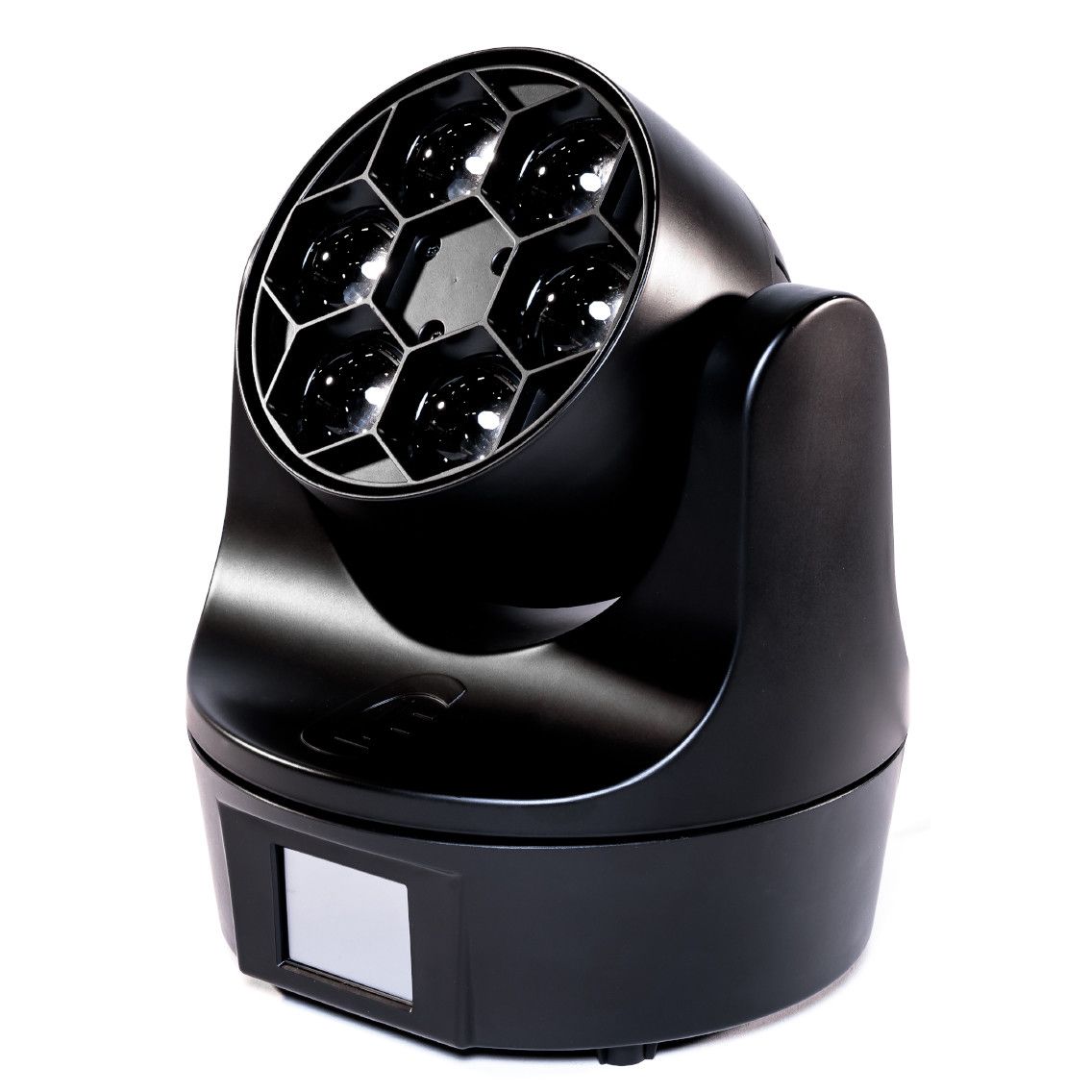

The Beam 6 is a small and lightweight LED fixture which delivers a powerful 1.5° beam. Additionally, the kaleidoscopic effect offers great flexibility. The compact fixture is ideal for creating matrix effects. All settings of the Beam 6 can be adjusted in the on board touch screen.

Features

• 1.5° Beam angle
• Fast movements
• Rotatable lens for special beam effect
• LCD touchscreen for menu settings
• Only 3.8KG

Physical

• Length: 226mm
• Width: 226mm
• Height (head vertical): 286mm
• Net Weight: 3.8 KG

Effects

• Color: RGBW color system
• Kaleidoscopic Effect: 6° – 51°
• Shutter: Variable 0 – 100%, random, pulse
• Dimmer: 0 – 100%

Optical

• Source: 6 x 10W RGBW 4 in 1 LEDs
• Average lifespan: 50000H
• Beam Angle: 6°- 51°

Photometric

• Output: 10600 lx @ 3M

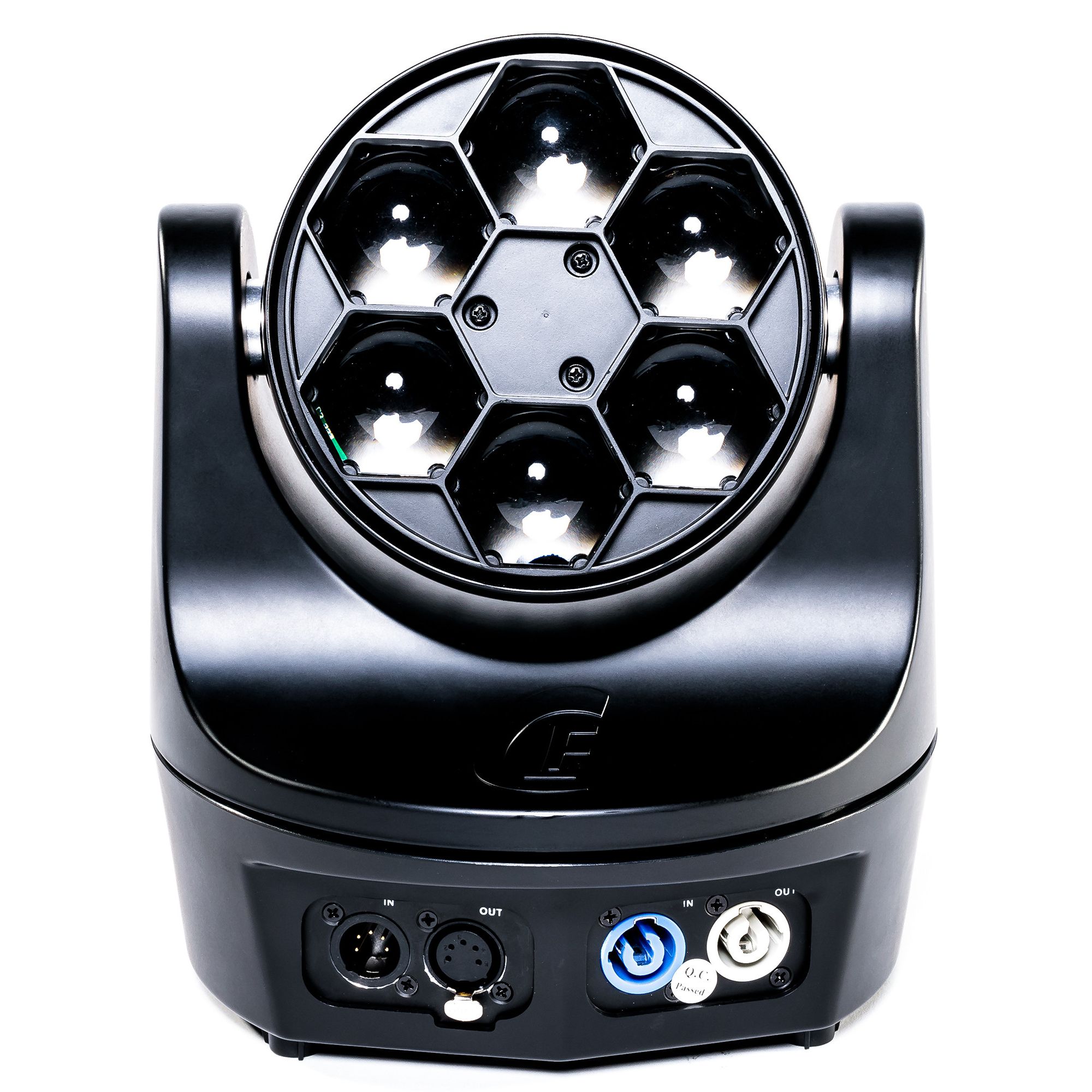

Connections

• Power: Powercon in and out
• Data: 5 pin locking XLR

Control

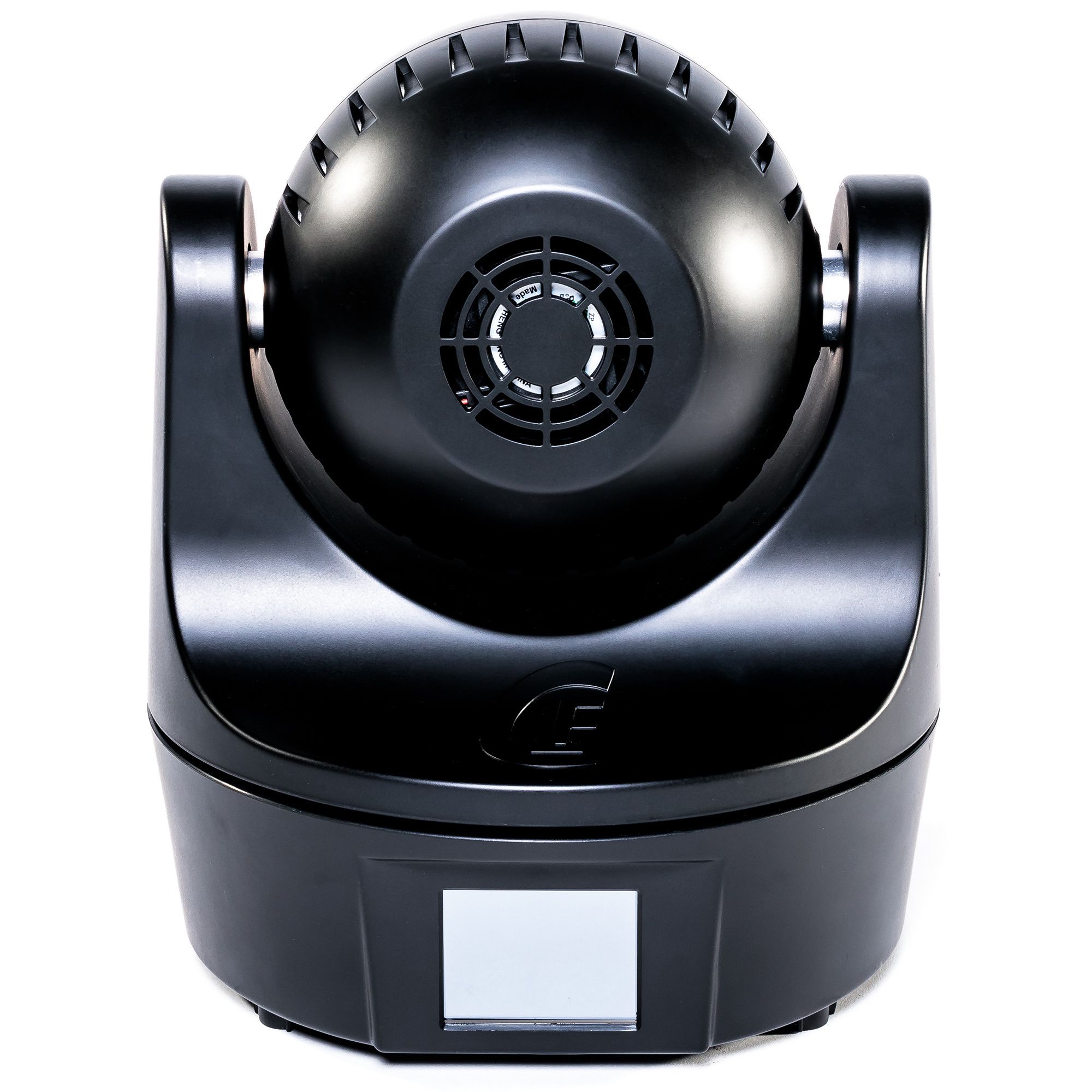

• Settings: TFT touch screen
• Protocols: DMX512, RDM
• Channels: 11 – 17
• Updates: By XLR

Installation

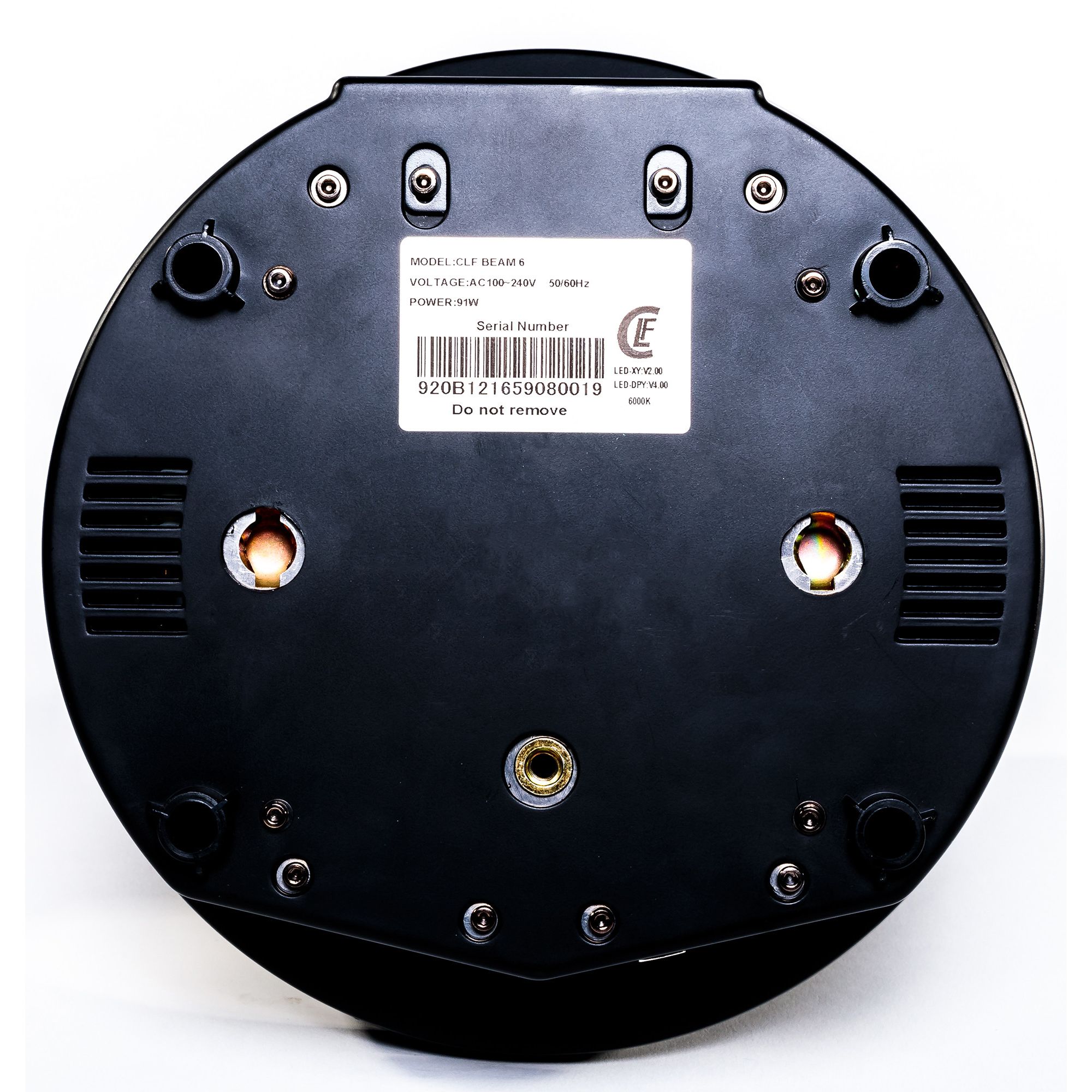

• Mounting: Omega bracket
• Orientation: Any
• Protection rating: IP20
• Safety Attachment point

Movements

• Pan: 540°
• Tilt: 180°

Electrical specification

• Input: 100-240 V, 50/60 Hz
• Power consumption: 91W

Thermal specification

• Minimum ambient temperature: -5C°
• Maximum ambient temperature: 35C°
• Cooling: Forced air

Approvals

• CE compliant

Included items

• User Manual
• Power cable
• Omega bracket
