Shure - ULXD4

Shure - ULXD4

Digital wireless receiver offers a spectrum and RF intelligent option for use in any professional sound reinforcement application. Features include Digital Predictive Switching Diversity, 72 MHz tuning range, and AES 256 encryption for security.

• Digital Predictive Switching Diversity
• Up to 72 MHz tuning range (region dependent)
• Optimized scanning automatically finds, and prioritizes the cleanest frequencies to be manually deployed to transmitters over IR sync
• Bodypack Frequency Diversity ensures uninterrupted audio for mission critical applications
• Individual gain controls (up to 60 dB), LED meters, and XLR outputs for each channel
• Ethernet networking for: streamlined frequency coordination and deployment across multiple receivers; compatibility with Wireless Workbench® 6 software for advanced coordination, monitoring, and control
• Compatible with AMX and Crestron control systems
• Interference detection and alerts

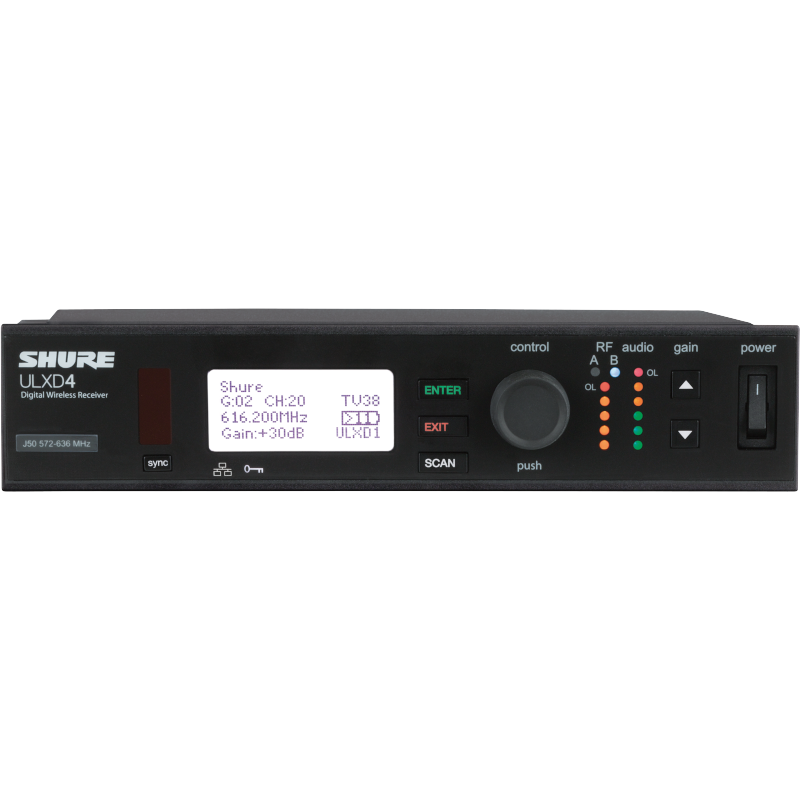

• Intuitive front panel LCD menu and controls with various lockout options, plus audio and RF LED meters with peak indicator
• Removable half wave antennas
• 24 bit / 48 kHz digital audio
• 20 Hz – 20 kHz frequency range with flat response
• Greater than 120 dB dynamic range
• Up to 22 active transmitters in one 8 MHz TV channel in standard mode; High Density mode enables up to 63 active transmitters in one  8 MHz TV channel
• AES-256 bit encryption equipped for secure wireless transmission

Product Series: ULX-D
Usage Environments: Theater Stage
Optional Accessories: PS43
Bias Via BNC: Yes
Dante Audio Network Interface: No
Network Ability: DHCP, Link-Local, Static
Antenna Cascade: No
Line Mic Switch: Yes
Image Rejection: 70
Phantom Power Protection: Yes
Media Control System Connection: No
Receiver Types: Single
Weight: 913 g
Width: 197 mm
Height: 42 mm
Depth: 171 mm
Component: Wireless Receiver
Color: Black
Logic Output: False
Frequency Band: G51 (470-534 MHz), K51 (606-670MHz) or H51 (534-598MHz)
Included Power Supply: EU
On/Off Switch: True
Mute Switch: False
Status Indicator: LED

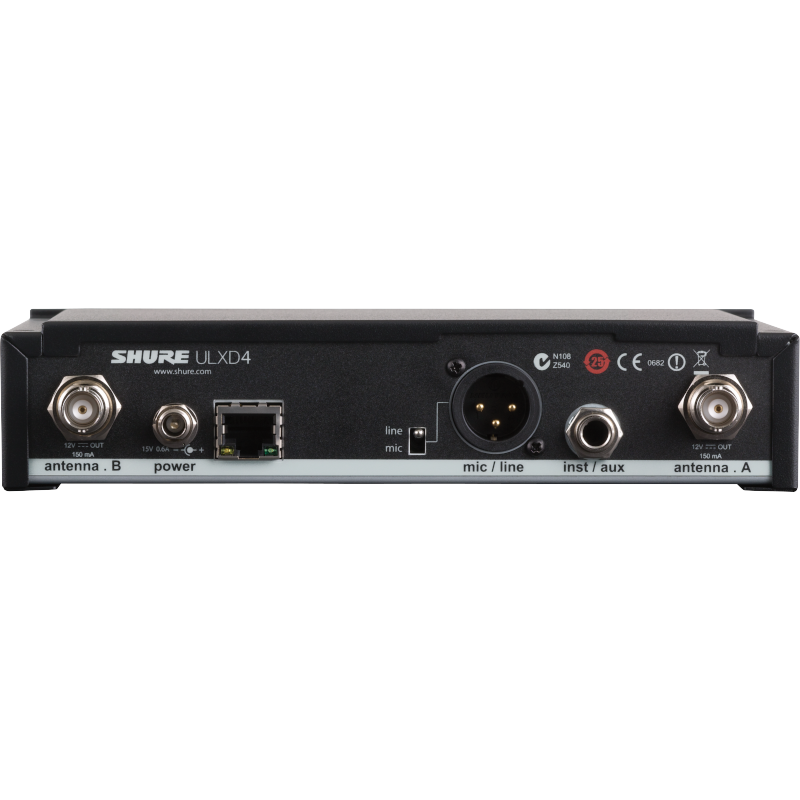

Connector: 3-Pin XLR
