Pharos - BPS UK BB - Button Panel Station UK Black-on-Black

Pharos - BPS UK BB

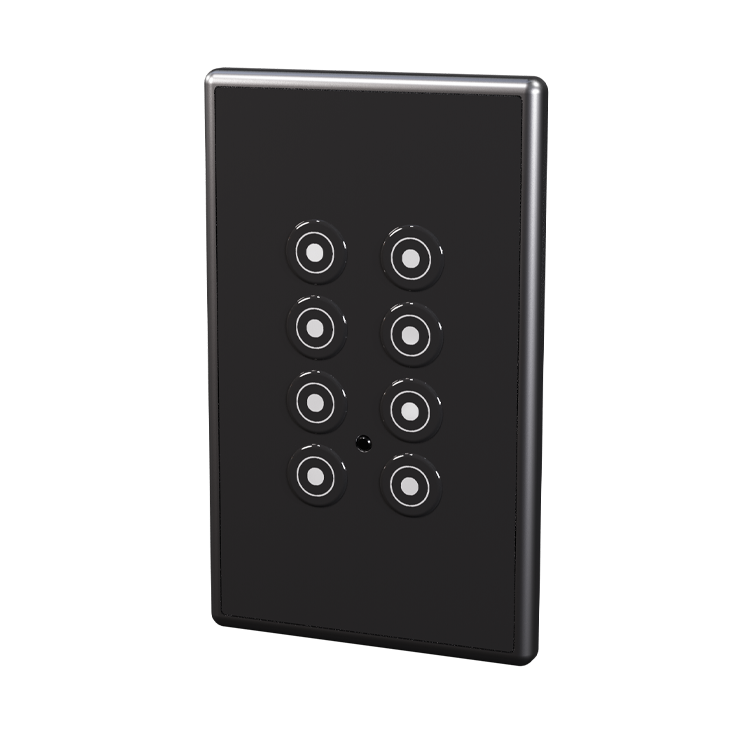

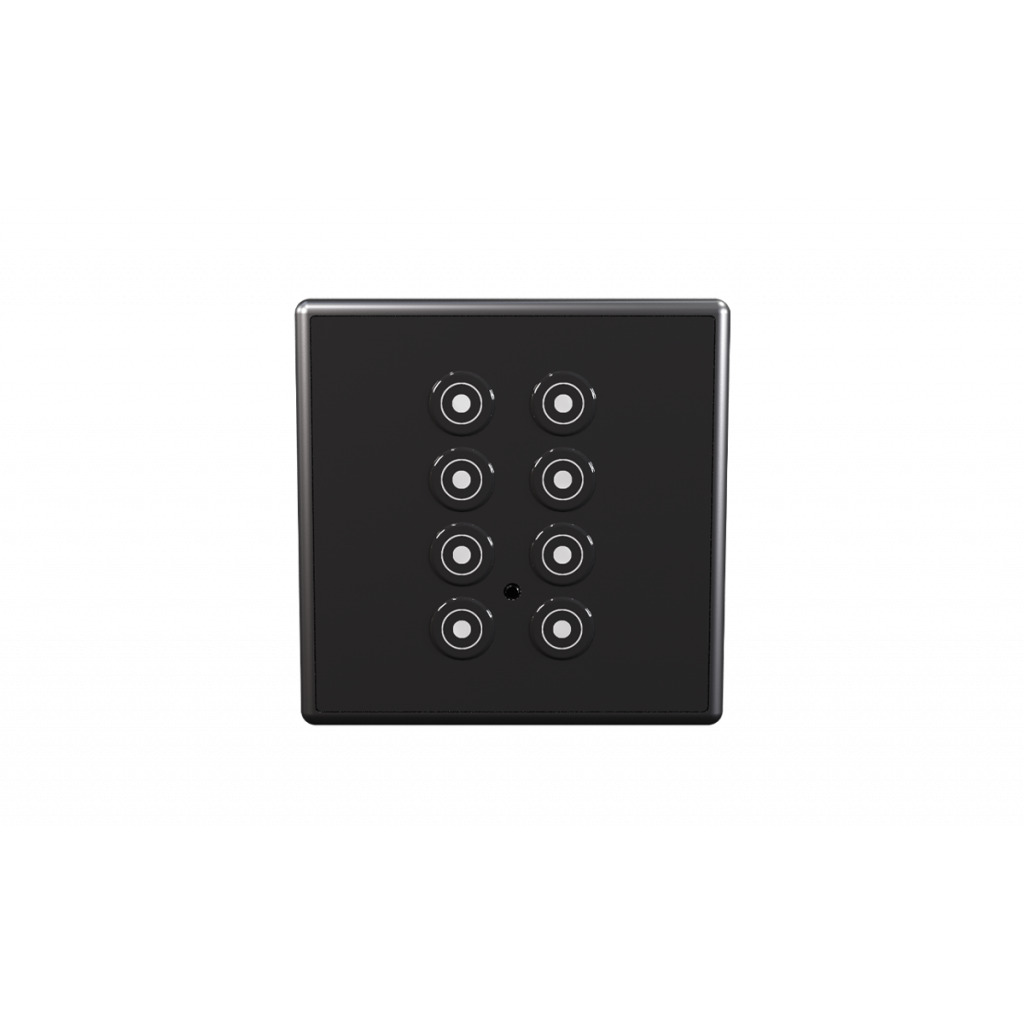

The Pharos BPS (Button Panel Station) is a versatile 8-button station with integrated button LEDs that works with any Pharos Designer Controller. The stylish BPS is available in a range of finishes and there are two variants for compatibility with either US or UK back boxes. Install is easy and convenient as the BPS only requires a single Power-over-Ethernet (PoE) network connection.

• Power: PoE (IEEE802.3af, Class 1), 1.5W typical
• Required: Any Pharos Designer Controller
• Configuration: Pharos Designer 2

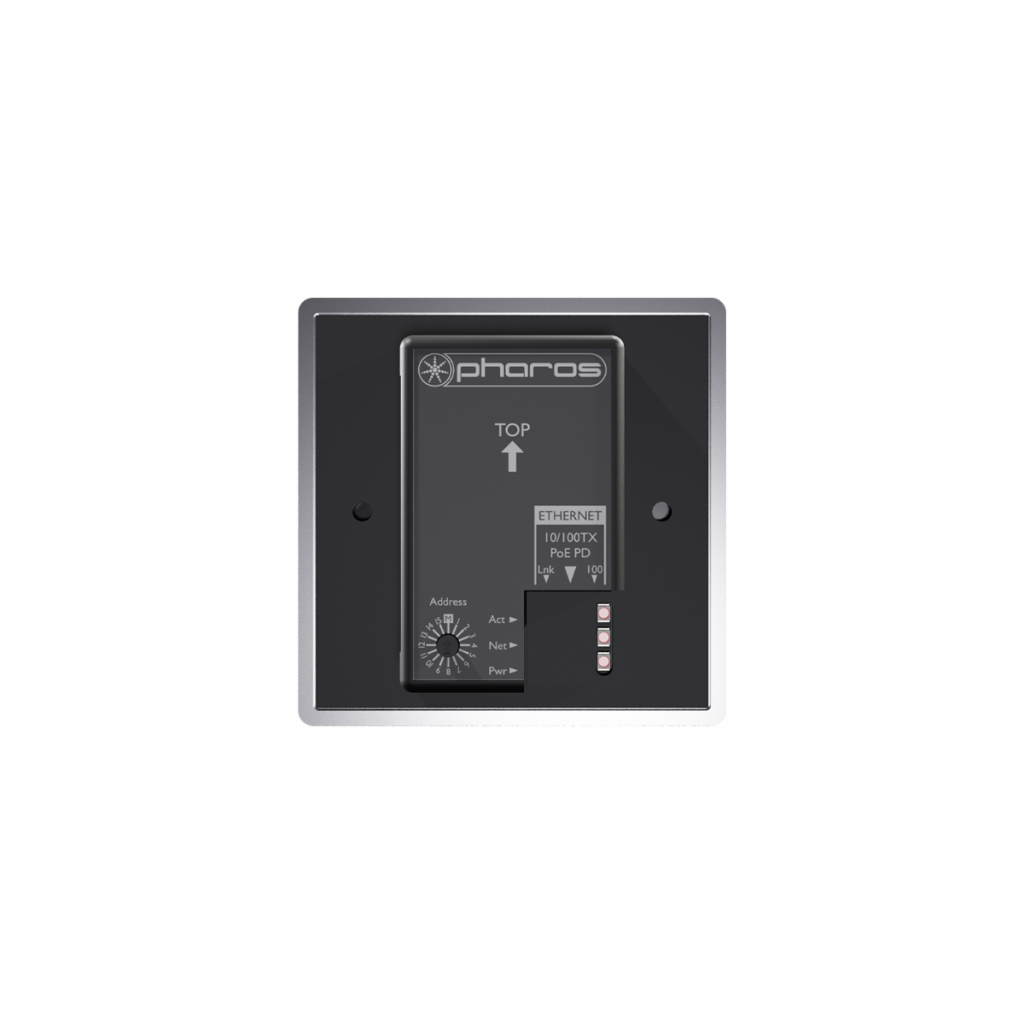

• Addressing: By rotary selector switch
• Temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 10-50% relative, non-condensing
• Ingress: IP40
• Physical: Flush-mounting wall panel with variants suitable for standard single-gang UK or US backboxes

  • UK: 8.6 x 8.6 x 3.2 cm (3.4 x 3.4 x 1.3 in)
  • US: 7 x 11.5 x 3.2 cm (2.8 x 4.5 x 1.3 in)
  • 0.3 kg (0.7 lbs)
• Shipping: 20 x 15 x 12 cm (8 x 6 x 5 in) 0.5 kg (1.1 lbs)
• Recovery: Hardware watchdog and recessed reset button
