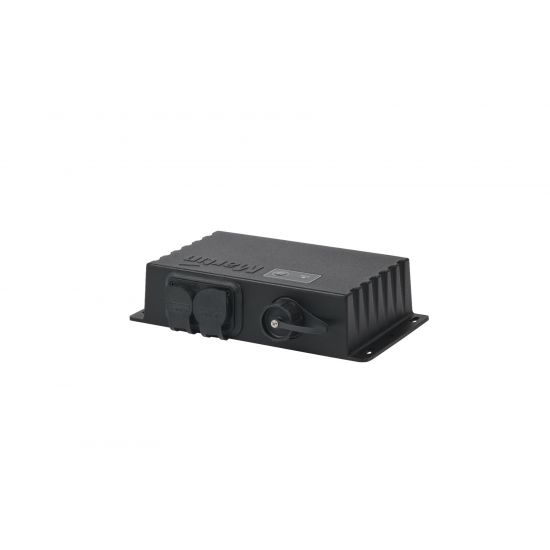

Martin - PDE Junction Box Active

The Martin PDE Junction Box Active merges power, DMX and Ethernet signals into a single connector and cable system, as used by the Martin VDO Atomic family of fixtures.

The unit also features a DMX-thru and Ethernet-thru port, supported by the internal RDM-compliant DMX splitter and 3-port Ethernet switch. The multi-color status LED gives a clear indication of the protocol being received, as it is compatible with DMX, Art-Net, sACN and Martin P3. And, the convenient test button allows all connected fixtures to be tested at once for easy system checking during installation.

The box is fully IP65 rated for outdoor use and features a robust metal housing. The flanges on the side allow for mounting to any surface, while the M10 threaded hole allows for the attachment of a rigging clamp.

FEATURES

  • powerCON TRUE1 TOP power in & thru
  • XLR 5 TOP DMX in & thru (build-in DMX/RDM splitter)
  • etherCON TOP Ethernet in & thru (build-in gigabit switch with fail-safe bypass)
  • Martin PDE Hybrid output
  • IP65 rated
  • Status LED to indicate received protocol
  • Pushbutton to recall test patterns on all attached fixtures
  • Robust metal housing
  • Wall or truss-mountable

PHYSICAL

  • Length: 215 mm (8.5 in.) (incl. mounting flanges)
  • Width: 115 mm (4.5 in.)
  • Height: 51 mm (2.0 in.)
  • Weight: 1 kg (2.2 lbs.)

CONTROL AND PROGRAMMING

  • Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
  • Protocol detection: Automatic
  • Fixture Identification: User-settable ID number
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
  • sACN Compliance: ANSI E1.31 - 2016
  • Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
  • DMX/RDM Transceiver IN/THRU: Opto-Isolated RS-485
  • DMX/RDM Transceiver OUT: Opto-Isolated RS-485
  • Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
  • Configuration: RDM, RDM over Art-Net or P3
  • Ethernet Transceiver THRU: 100/1000Mbit (with fail-safe bypass to Ethernet IN)
  • Ethernet Transceiver IN: 100/1000Mbit (with fail-safe bypass to Ethernet THRU)
  • Ethernet Transceiver OUT: 10/100Mbit

CONTROL/USER INTERFACE

  • Device status: Multi-color status LED
  • Fixture Test: Push button to call up test pattern on fixtures connected to PDE output

CONSTRUCTION

  • Housing: Aluminum
  • Color: Black
  • Protection rating: IP65
  • RoHS: Compliant
  • REACH: Compliant

INSTALLATION

  • Location: indoor or temporary outdoor use
  • Orientation: Any
  • Wallmount: Using mounting flanges
  • Trussmount: Using half-coupler clamp in M10 threaded hole, max. bolt length 22 mm

CONNECTIONS

  • AC power input: Neutrik powerCON TRUE1 TOP (IP65)
  • AC power thru: Neutrik powerCON TRUE1 TOP (IP65)
  • Ethernet input: Neutrik etherCON TOP (IP65)
  • Ethernet thru: Neutrik etherCON TOP (IP65)
  • DMX input: Neutrik XLR 5-pin Male TOP (IP65)
  • DMX thru: Neutrik XLR 5-pin Female TOP (IP65)
  • AC Power, DMX and Network out: PDE hybrid connector (IP65)
  • All connections hot plugging compatible

ELECTRICAL

  • AC power: 100-240 V AC nominal, 50/60 Hz\
  • Power supply unit: Auto-ranging electronic switch mode
  • Maximum power consumption: 6 W
  • Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.5 A
  • Typical earth-leakage current: 0.25 mA
