Martin - MAC Ultra Wash

Martin - MAC Ultra Wash

€13,770.83 Excl. Tax
In stock
Art. code

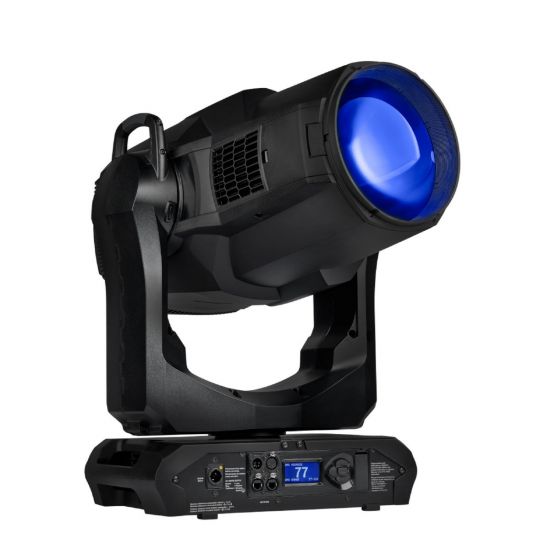

Martin - MAC Ultra Wash

The MAC Ultra Wash is a colossal return to everything that an incredible wash light should be. Pure and simple in concept, it’s a bold, no-nonsense workhorse and the brightest wash we’ve ever developed. Via its 1150 W, 6000 K proprietary LED light engine, the MAC Ultra Wash delivers a jaw-dropping 63,500 lumens from a 220 mm front lens and features incredibly fast 1:10 zoom range.

Its 50,000+ hour light engine is the latest in a long line of Martin feats of innovation. No matter what the application, you can reliably count on consistent quality of light and output - show after show for many years to come. The MAC Ultra Wash also includes a powerful feature set, including uniform color mixing, variable CTO, additional color and spectral correction filters, motorized frost for a softer field, high resolution dimming and strobing.

Ideal for touring, concerts, TV shows and performing arts, the MAC Ultra Wash supports the broader production market all the way up to the most demanding stage lighting events. Martin set the standard for managing the ratio of weight, size, and power and the MAC Ultra Wash surges ahead with even superior performance.

When it comes to delivering drop-dead wash light performance and workhorse reliability, nothing comes remotely close. MAC Ultra Wash exceeds the boundaries of design as an undeniable, class-leading fixture that sets a steep bar on wash light innovation.

Feature Highlights


The MAC Ultra Wash pushes a phenomenal 63,500 lumens of output from its mighty 220 mm front lens. With our tailor-made light engine and optics designed as one unified system, MAC Ultra Wash excels on keeping output across the zoom range, resulting in an ever-bright wash field. With high luminous flux and intensity at narrow zoom angles, MAC Ultra Wash delivers the punch needed for the longest throws and highest trims - no stage or venue is too big for MAC Ultra Wash.


Our proprietary LED light engine is the foundation for MAC Ultra visual quality, built around the very latest technology to meet ever-stretched performance requirements. Our engine not only provides impressive metrics, but most importantly is more pleasing to the human eye. With higher red content and 6000 K color temperature for better daylight balance, it delivers richer, more vivid colors and more natural skin-tones.


MAC Ultra was designed to not only deliver best-in-class output and quality in its first hour of use, but throughout its product lifetime. The minimum LED lifetime exceeds 50,000 hours and the engine delivers over 90 percent of its initial output after 20,000 hours of full output. In real-world applications, this equals rock-solid performance and stability. Our engineering team has achieved these results through a sophisticated cooling system and by never driving the 1680 W LED package at more than 70 percent of its maximum rating. This combination ensures visual excellence and peace of mind throughout the life of the product.


The sophisticated MAC Ultra cooling system always ensures a precise operating temperature window and sets a new standard for low acoustic levels. It’s not only ideal for a range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications.


MAC Ultra features a unique and compact industrial design. Martin’s patented yoke handles provide better ergonomics and safer handling of the light. To benefit stage and set designers, all connectors and the UI are placed on the same side of the unit, leaving the opposite side free from visual distraction. Follow-spot handles are also permanently incorporated, and tool-free replacement of air-inlet filters is easier than ever to access.


  • 1150 W proprietary LED light engine
  • 84 x 20 W white LEDs
  • Minimum LED lifetime: >50,000 hours
    (see specs for further details)


  • Light Engine Luminous Output: 90,000 lumens
  • Fixture Luminous Output: 63,500 lumens
  • Peak Luminous Intensity: 4,500,000 cd
  • CCT: 6000 K


  • 220 mm Front Lens
  • 1:10 zoom range


  • Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
  • Dimming options: Choice of four dimming curves
  • Color mixing: CMY, independently variable 0 - 100%
  • Color temperature control: Variable 6000-2850 K
  • Color wheel: 6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
  • Frost: Motorized
  • Iris: Variable 0 - 100%, pulse effects
  • Zoom: Motorized for softer wash field
  • Focus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
  • Pan: 540°, coarse & fine control and speed
  • Tilt: 268°, coarse & fine control and speed
  • P3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
  • Pre-programmed effects: Two ranges of FX, independent or


  • Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
  • Protocol Detection: Automatic
  • DMX Modes: One
  • DMX Channels: 29
  • 16-bit Controllable Parameters: Dimming, Color Mixing + CTC, Zoom, Focus, Pan and Tilt
  • Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
  • Local User Interface: Backlit LCD Display with batterypowered operation
  • Fixture identification: User-settable ID number
  • DMX Compliance: USITT DMX512-A
  • RDM Compliance: ANSI/ESTA E1.20
  • Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
  • sACN Compliance: ANSI E1.31 - 2016
  • Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
  • DMX/RDM Transceiver: Galvanic-isolated RS-485
  • Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
  • Firmware Update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller


  • Front Lens Diameter: 220 mm
  • Zoom Range Beam (half-peak): 7.0° - 47° (1:7)
  • Zoom Range Field (tenth-peak): 9° - 63° (1:7)
  • Zoom Range Beam – hyper zoom (half-peak): 5.0° - 47° (1:10)
  • Zoom Range Field – hyper zoom (tenth-peak): 7° - 63° (1:10)
  • Light Source: 84 x 20 W White LEDs in a custom Martin engine
  • Maximum Total LED Engine Power: 1150 W
  • Minimum LED lifetime: >50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)* Figure obtained under manufacturer’s test conditions


  • Light Engine Luminous Output: 90,000 lumens
  • Fixture Luminous Output: 63,500 lumens
  • Peak Luminous Intensity: 4,500,000 cd
  • CCT: 6000 K (+/- 250 K)
  • TM-30 Rf (IES TM-30-15 Fidelity Index): 62
  • TM-30 Rf (IES TM-30-15 Fidelity Index) with Spectral Enhancement Filter @ 5600 K: 74
  • TM-30 Rf (IES TM-30-15 Fidelity Index) with CTO @ 3200 K: 84
  • TM-30 Rf (IES TM-30-15 Fidelity Index) with Spectral Enhancement: Filter and CTO @ 3200 K: 87
  • CRI (Color Rendering Index): 66
  • CRI (Color Rendering Index) with Spectral Enhancement Filter @ 5600 K: 80
  • CRI (Color Rendering Index) with CTO @ 3200 K: 86
  • CRI (Color Rendering Index) with Spectral Enhancement Filter and CTO @ 3200 K: 91


  • Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 38 dB(A)
  • Sound Pressure Level (LpA) @ 1 m (constant fan mode low): 33 dB(A)


  • Housing: High-impact flame-retardant thermoplastic
  • Color: Black
  • Protection rating: IP20
  • RoHS: Compliant
  • REACH: Compliant


  • Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
  • Location: Dry location only, must be fastened to surface or structure
  • Orientation: Any
  • Minimum distance to combustible materials: 0.2 m (8 in.)
  • Minimum distance to illuminated surfaces:  4.75 m (15.6 ft.)


  • AC mains power input: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
  • DMX and RDM data in/out: 5-pin locking XLR
  • Ethernet (Art-Net, sACN and P3): Neutrik etherCON in/out, including fail-safe bypass
  • Firmware from flash memory: USB 2.0 port


  • AC power: 200-240 V AC nominal, 50/60 Hz
  • Power Supply Unit: Auto-ranging electronic switch mode
  • Maximum total power consumption: 1450 W
  • Maximum total current at 200 V: 8.0 A
  • Maximum total current at 240 V: 6.7 A
  • Power consumption, all effects static, zero light output: 100 W
  • Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A


  • 208 V, 60 Hz: 6.6 A, 1360 W, PF 0.99
  • 230 V, 50 Hz: 6.0 A, 1350 W, PF 0.99
  • 240 V, 50 Hz: 5.7 A, 1350 W, PF 0.99
    Measurements made at nominal voltage. Allow for a deviation of +/- 10%. PF = power factor.


  • Cooling: Forced air (temperature regulated, low noise)
  • Maximum Ambient Temperature (Ta max):  40° C
  • Minimum Ambient Temperature (Ta min): 5° C
  • Maximum surface temperature, steady state, at 40° C ambient: 85° C (185° F)
  • Total heat dissipation (calculated, +/- 10%):  4950 BTU/hr.


  • Length (head): 642 mm (25.3 in.)
  • Length (base): 468 mm (15.5 in.)
  • Width (across yoke): 520 mm (20.5 in.)
  • Width (base): 312 mm (12.3 in.)
  • Height (head straight up): 848 mm (33.4 in.)
  • Height (maximum): 867 mm (34.2 in.)
  • Weight: 39.0 kg (86.0 lbs.)
  • Minimum center-to-center distance in side-by-side installation: 810 mm (31.9 in.)


More Information
Condition New
Brand Martin Professional
