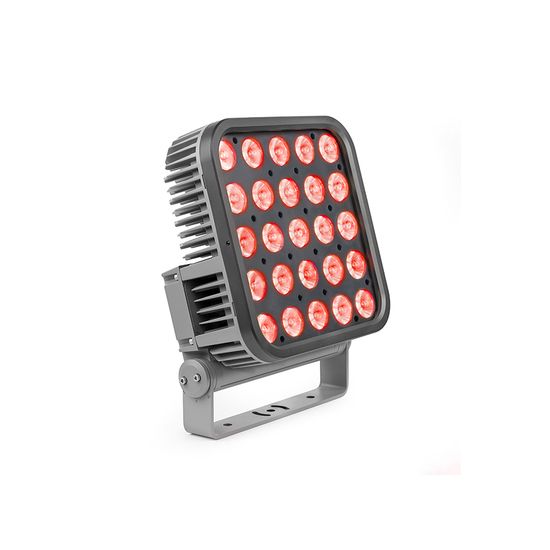

Martin | Exterior Wash Pro XL QUAD

Engineered for harsh conditions and creativity, Exterior Wash Pro XL QUAD provides a logical, user-friendly and versatile lighting solution designed to illuminate large-scale structures and building facades. Featuring external micro lenses and an optional baffle snoot, this fixture provides configurable beam control. The Exterior Wash Pro XL QUAD features unparalleled color performance. The factory color calibration ensures superior color consistency and provides a dedicated color tempera¬ture control channel spanning from 1000K to 12,500K precisely following the black-body curve. The integrated color boost technology encompassing smart ratio between LED capacity and PSU capacity results in saturated and mixed colors up to three times brighter than previous models. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.

Features

• Logic family of four sizes and lumen packages (S, M, L, XL)
• Compact and slim design
• Superior color consistency based on factory calibration
• Color boost for bright saturated and mixed colors
• Dedicated color temperature control channel
• Narrow beam-angle using high-power RGBW LEDs
• Optional baffle snoot
• Externally mounted micro lens diffusers
• RDM and DMX control
• Local diagnostics and focusing via magnetic sensor
• Power and DMX IN/OUT pre-mounted cables
• Optional Hybrid IN/Out cable solution
• Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
• Shipped in FSC certified cardboard packaging
• 5-year warranty

• Length: 175 mm (6.89 inch.)
• Width: 351 mm (13.82 in.)
• Height: 438 mm (11.93 in.)
• Weight: 17.7 kg (39.0 lbs)

• Intensity: 0 - 100 %
• Color mixing: RGB + CTC (Color Temperature Control)
• Color temperature control: 1000 K - 12500K in 50K steps

• Control systems: DMX, RDM
• User interface: Magnetic sensor for local diagnostics and focusing
• Stand-alone control: Up to 20 scenes with individual fade/hold times
• Control resolution: 8-bit DMX control of each color
• Dimmer Resolution: 16-bit DMX control of intensity
• DMX channels: 6/3/7/4 (Standard/Basic/Extended/Raw)
• DMX compliance: USITT DMX512/1990
• RDM compliance: ANSI/ESTA E1.20
• DMX/RDM Transceiver: Galvanic-isolated RS-485
• Firmware update: Serial upload via DMX link

• Light source: 25 x high-power RGBW LEDs
• Minimum LED lifetime: 100 000 hours (to > 70% luminous output)*
• LED manufacturer: Osram
• Binning: Tight color and flux binning
• Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)
• *Figure obtained under manufacturer's test conditions at Ta = 25° C.

• Native beam angle: 8°
• Narrow micro lens: 10°
• Medium micro lens: 16°
• Wide micro lens: 30°
• Very Wide micro lens: 54°
• Asymmetric micro lens: 9° x 56°

• CRI (Color Rendering Index): > 70
• CCT: 1000K - 12500K (Default 4000K)
• Luminous output:
• Full Output: 10400 lm
• Red: 3260 lm
• Green: 6680 lm
• Blue: 2830 lm
• * All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.

• Housing: Cast Aluminum
• Color: Traffic grey RAL 7042 - other colors available on request
• Surface treatment: Anodized and electrostatic powder-coated
• Protection rating: IP66
• Effective Projected Area (EPA): 0.149 m² / 0.180m²
• Impact resistance: IK08
• Corrosion resistance: C5 High (ISO 12944-6)
• Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

• Mounting: Adjustable bracket
• Orientation: Any
• Minimum distance to illuminated surfaces: 0.4 m (1.3 ft.)

• Power connection: 2 m (6.5 ft.) cable tail open ended
• Power input cable type, EU models: H07RN-F 3G 1.0 mm², 450/750V, VDE
• Power input cable type, US models: PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
• Data connection: 2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
• Hybrid power/data cables (in & thru) 8-pin custom connectors available on request

• AC power: 100 - 240 / 277 V nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch-mode
• Typical half-cycle RMS inrush current: 14 A
• Surge protection: 4 KV
• Max earth leakage: 0.5 mA
• Power factor: 0.99 @110 V / 120 V, 0.96 @208 V / 230V, 0.90 @277 V
• Max current draw: 2.50 A @100 V, 2.1 A @120 V, 1.1 A @230 V, 0.90 A @ 277 V

• Maximum Power Consumption: 250 W (reduced mode 200W)*
• Idle: 4.0 W*
• * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle: all LEDs at zero intensity

• Cooling: Convection
• Maximum ambient temperature: 45° C (113° F)*
• Minimum ambient temperature: -30° C (-22° F)**
• Total heat dissipation (calculated, +/- 10%): 853 BTU/hr
• *Above this temperature, the fixture regulates output to protect from overheating.
• **Power must be maintained below -20° C (-4° F)

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Packaging: FSC certified cardboard inlay and outer box
• Efficacy (max output): 42 lm/W
• LWR*: 588 lm/kg (267 lm/lb)*
• *LWR = Lumen-to-Weight Ratio

• Global CB Certification/IECEE: IEC 60598-2-5 (IEC 60598-1)
• EU safety: EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493
• EU EMC: EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3
• US safety: ANSI/UL 1598
• US EMC: 47 CFR Part 15 Class B
• Canadian safety: CSA C22.2 No. 250.0
• Canadian EMC: ICES 003(B), ICES 005(B)
• Australia/NZ: RCM
• United Kingdom: UKCA
• India: BIS IS 10322(Part5/section5)

• Exterior Wash Pro XL QUAD, EU, white: P/N MAR-90590104
• Exterior Wash Pro XL QUAD, EU, grey: P/N MAR-90590004
• Exterior Wash Pro XL QUAD, US, grey: P/N MAR-90590008

• Micro Lens Pro XL - Narrow: P/N MAR-90590041
• Micro Lens Pro XL - Medium: P/N MAR-90590042
• Micro Lens Pro XL - Wide: P/N MAR-90590043
• Micro Lens Pro XL - Very Wide: P/N MAR-90590044
• Micro Lens Pro XL - Asymmetric: P/N MAR-90590045
• Baffle Snoot Pro XL QUAD: P/N MAR-90590020
• Hybrid PD cable tail In/Out 0.5 m, black: P/N MAR-91700020
• Attachment plate for safety wire: P/N MAR-90590050
• Hybrid PD cable tail In/Out 0.5 m, white: P/N MAR-91700022
• Exterior Multitool: P/N MAR-90590025
