The GigaCore O26-I is a 40-Gigabit Ethernet switch dedicated to AV integration, installation, and touring, designed to support the most advanced AV protocols out of the box. It is the ideal solution to serve as the high-bandwidth backbone for professional AV networks with a star or mesh topology.

Bandwidth, connectivity, and port availability are no longer an issue with 20 independent SFP+ ports supporting speeds up to 10 Gbps, 4 SFP28 ports up to 25 Gbps, and 2 QSFP ports up to 40 Gbps.

The GigaCore O26-I is an indispensable part of any AV network requiring high bandwidth, reliability, and quick, easy setup. With two built-in power supply units, it delivers redundant power within the same 1U rack space.

• Most suitable applications: System integrations, Installs
• PoE: NA
• RLinkX (Link redundancy): Yes
• Groups (VLAN segmentation): Yes
• MultiLinkX (Link aggregation): Yes
• Profile manager: Yes
• Memory: 1GB NAND – 8Mb NOR - 1GB RAM
• MAC address table: 32768 entries
• Address learning / Aging: Self learning, Auto aging
• Switching throughput 64 Byte: 565,48Mpps
• Switching capacity: 760Gbps
• Jumbo frames: MTU up to 9216
• IGMP support: Yes (V1/V2/V3)
• IGMP snooping: Yes, enabled by default
• Port sensing: Fixed speed
• Auto crossover: NA
• Auto sensing: NA
• Ethernet connectivity: NA

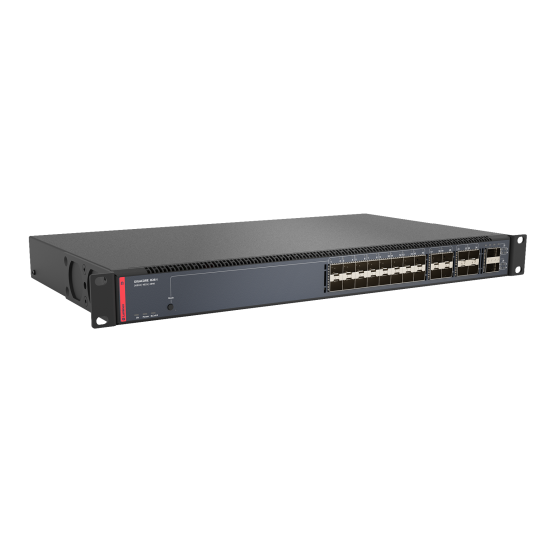

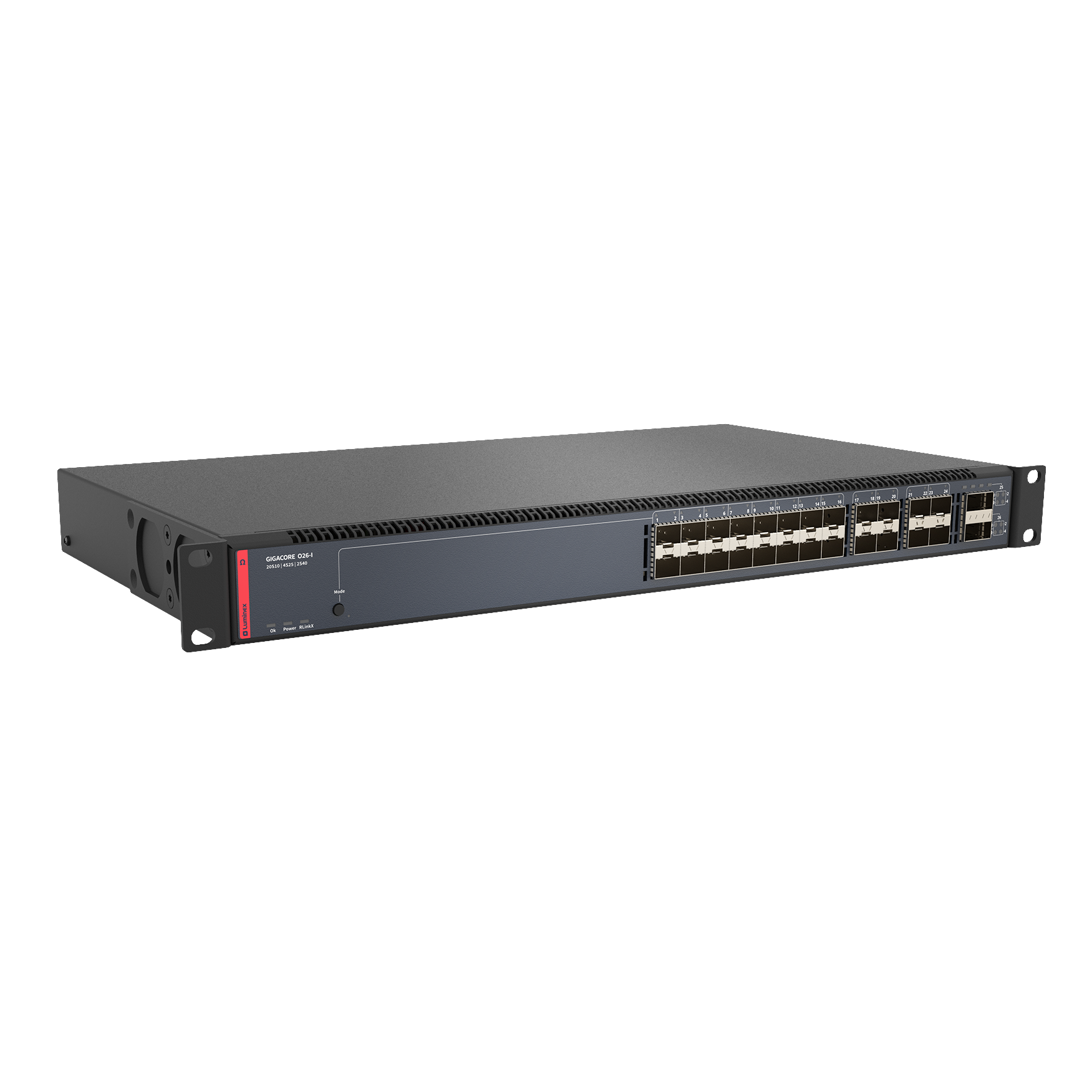

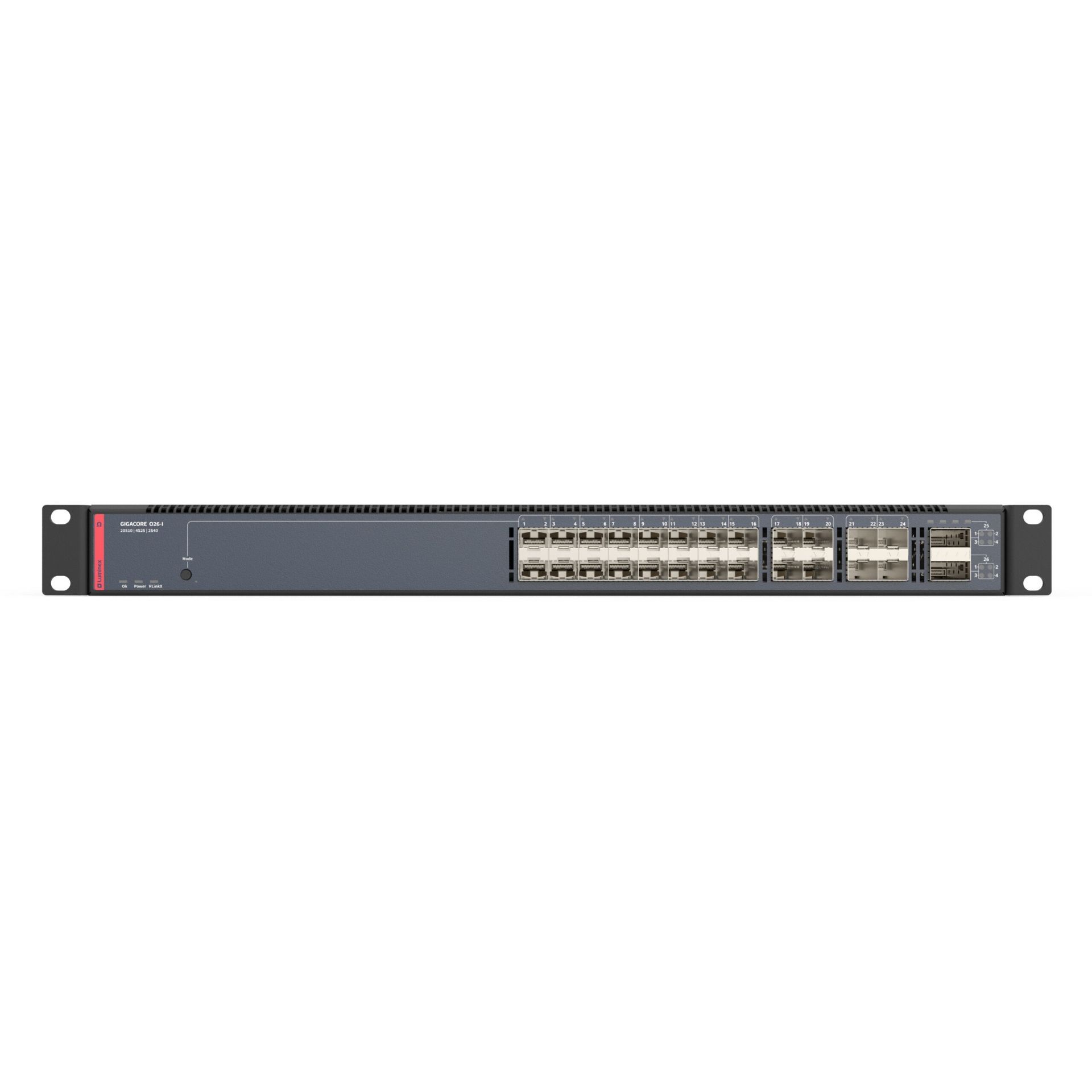

• Fiber connectivity: 2x 40Gbps QSFP cages on front panel - 40G BASE-X or 4x 10G BASE-X 4x 25Gps SFP28 cages on front panel - 25G BASE-X, 10G BASE-X or 1000 BASE-X 20x 10 Gbps / 1 Gbps SFP+ cages on front panel - 10G BASE-X or 1000 BASE-X
• Ethernet port speed: NA
• Serial: No

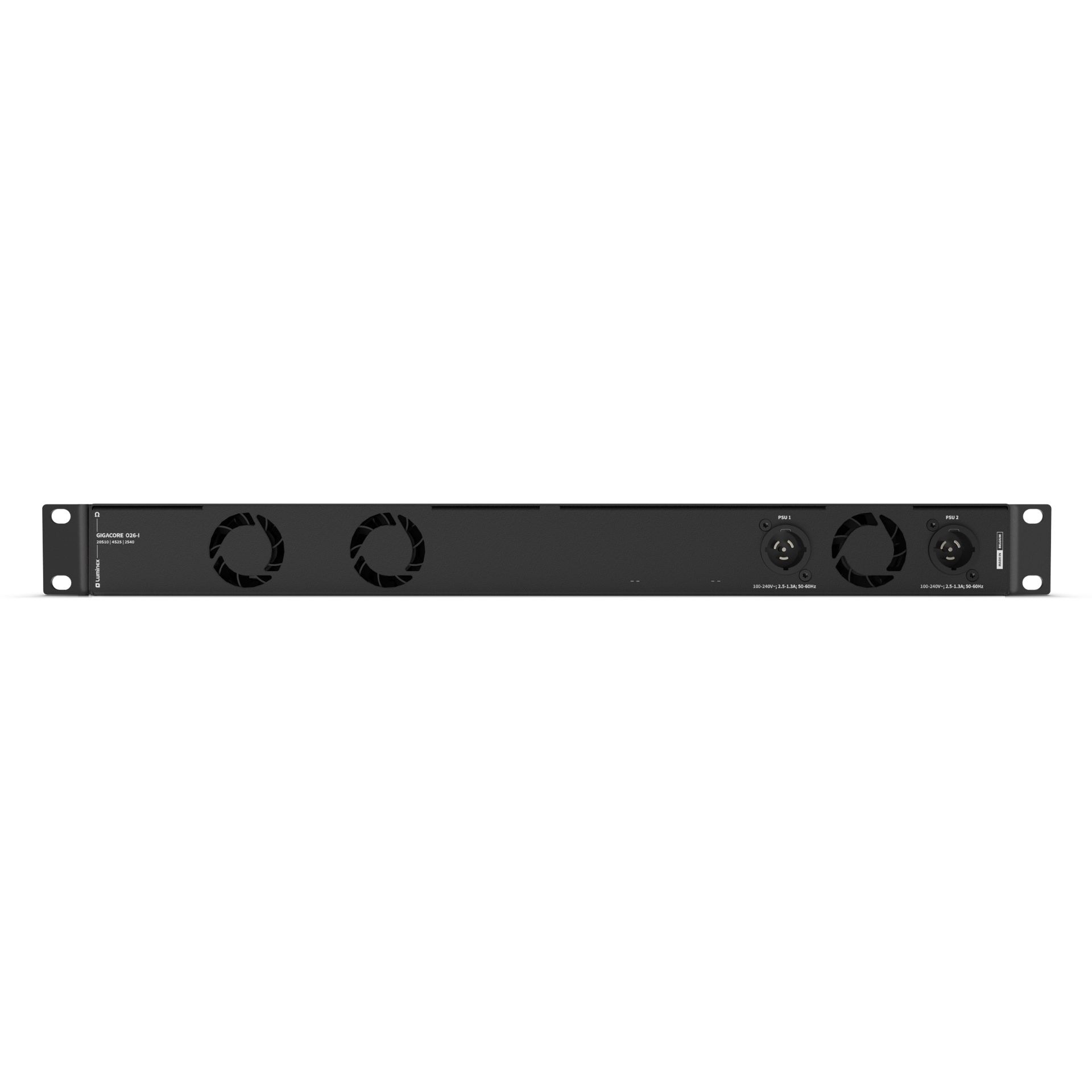

• Power connectivity: 2 x PowerCON True1 in
• Power input: 100-240VAC, 50-60Hz
• Power consumption: Max 100W
• Fuse: NA
• Backup power input: Yes - via 2nd PowerCON True1 in
• Backup PoE power input: NA
• PoE: NA
• Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet, HogNet, RTTrPL (BlackTraX), IPMX, NDI, IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), IEEE 1588 PTP V2, MILAN AVB, IEEE 802.1as (gPTP) and more...
• Sound protocol compliance: Yes (low jitter)
• Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3ae, IEEE 802.3by, IEEE 802.3ba 40Gbps, IEEE 802.1ax, IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1Qav MVRP, IEEE 802.1 BA-2011 -> AVB (Audio Video Bridging), IEEE 802.1ab LLDP, IEEE 1588-2008 PTPv2, IETF RFC2710, IETF RFC3810
• Display and jog: No
• NFC: No
• Configuration: Network wide configuration through Araneo software and/or through the built-in web server
• Status LEDs:
• Global status LEDs: Device, power and mode
• Port status LEDs: groups, link/activity and port speed
• Dark mode available
• Colored RGB LEDs: Yes
• Mounting: Rack
• Enclosure: Robust metal housing
• Dimensions (W x D x H): 482 x 249,6 x 44 mm (19" x 9,82" x 1,73")
• Weight: 4kg (device only) 4.24kg (packaged)
• Packaging: 550 mm x 335mm x 68 mm
• Environment:
• Operating temperature: 0 to +50 °C
• Storage temperature: -40 to +70 °C
• Humidity (non condensing): 5 to 95% RH
• Ingress Protection:
• Noise level @1m: TBC
• BTU: TBC
• Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
• Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
