i3 - Touch PX55r


The i3TOUCH PXr is our high-end rotatable touch display that offers the unique combination of a flexible Windows environment on a rotatable display allowing for maximum versatility in your workspace.

Write naturally
Thanks to the optical bonding inside the panel, the i3TOUCH PXr is able to achieve a highly natural and precise writing experience.

One cable connection
The i3TOUCH PXr is a future-proof solution that allows the latest devices with a USB-C connection to be connected to the screen with one cable for image, power, touch and audio.

Energy efficient
The eco-friendly design comes with an extremely low power consumption,
resulting in a A+ Energy label.

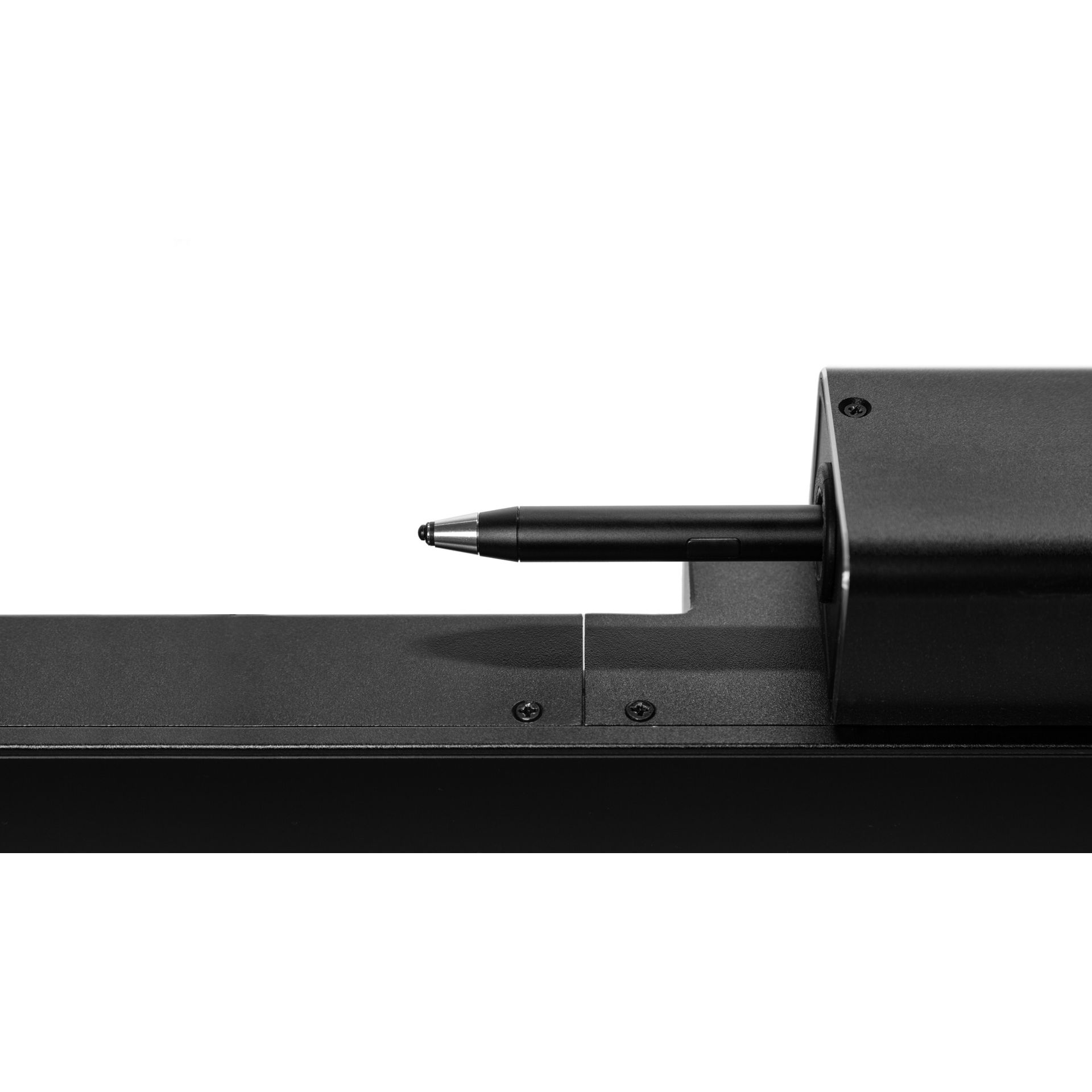

Active pen
The ergonomic pen detects different levels of pressure and automatically activates the writing function in Windows ink supported apps as Microsoft Office 365.

Impress with strong craftsmanship
The ultra-slim bezel and aluminium accents along with the sturdy craftsmanship create a pleasing high-end aesthetic.

Intuitive interface
With the intuitive side menu, you can navigate directly to whiteboarding, presenting and other apps without having to go to the main menu.

  • Model name: i3TOUCH PX55r
  • Product series:  i3TOUCH PX - Interactive Flat Panel Displays
  • DISPLAY SPECIFICATIONS
    Panel technology: In-Plane Switching Liquid Crystal Display
    (IPS LCD)
  • Panel active screen:  size 55 inch,
  • Display aspect ratio:  16:9
  • Display native resolution: 3840 x 2160 pixels - 4K Ultra High Definition
  • Brightness:  350 cd/m²
  • Contrast ratio:  4000:1
  • Color Gamut:  85% NTSC
  • Colour depth:  1.073 billion colors (10 bit)
  • Response time (typ.):  6 ms
  • Refresh rate:  60 Hz (@ UHD)
  • Supported orientation:  landscape & portrait
  • Glass:  4 mm Anti-Glare Tempered glass, optically bonded (zero airgap)
  • Life time:  50.000h
  • viewing angle:  178°

CONNECTIVITY

  • Digital audio-video inputs: 3x HDMI 2.0, USB-C x 1
  • Digital audio-video output: 1x HDMI 2.0
  • Analogue audio-video input:  1x audio jack (3.5 mm TRS connector)
  • Analogue audio output: 1x audio jack (3.5 mm TRS connector)
  • USB data ports: USB 2.0 x 1, USB 3.0 x 2
  • Integrated PC slot: OPS-PC slot (JAE TX24 connector)
  • Control input: 1x COM DE-9 (RS-232C standard)
  • Network: LAN: RJ-45 in x1, RJ-45 out x1,
    Wi-Fi: 2.4 / 5 GHz (IEEE 802.11 a/b/g/n/ac)
  • Integrated loudspeakers:  2x 15 Watt
  • Charge station for stylus:  integrated

OPERATIONAL FEATURES

  • Operating System: Android™ 8.0
  • Architecture: CPU: A73 x 2 + A53 x 2,  GPU: MaliG51 x 4, RAM: 3GB,
    ROM: 32GB, Gyroscope sensor
  • Interactive touch: Projected Capacitive Touch recognition,
  • Input Detection: 20 touch inputs | Multiple writing: max. 5,
  • Touch Connection: 1x USB-B, Recognition: Finger (size ≥ 10 mm) or capacitive stylus (3.0 ± 0.1 mm),  Response time: < 10 ms,
    Accuracy: ± 1 mm, Active stylus (Windows Ink compatible)
  • Supported Compatibility: Windows, Android, MacOS X, Linux, Chrome OS
  • Maximum operating: hours 18 hours / day
  • Ambient light sensor: Stand by
