FiberFox - NKOX2M3-FX-3-050 - X-TREME EBC15 2CH Cable, 50m FiberFox - NKOX2M3-FX-3-050 - X-TREME EBC15 2CH Cable, 50m FiberFox - NKOX2M3-FX-3-050 - X-TREME EBC15 2CH Cable, 50m
FiberFox - NKOX2M3-FX-3-050 - X-TREME EBC15 2CH Cable, 50m

FiberFox - NKOX2M3-FX-3-050 - X-TREME EBC15 2CH Cable, 50m

€1,187.38 Excl. Tax
Availability:
On request
Art. code
FX-80.0100

FiberFox - NKOX2M3-FX-3-050

X-TREME EBC15 MM 2CH 50m OM3 CableReel GT380

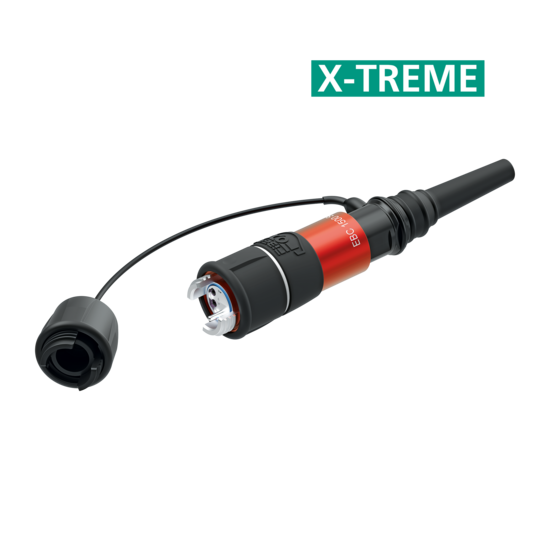

The FIBERFOX X-TREME EBC15 2CH cable connector offers a cut-proof and rodent resistant double jacket glasses yarn cable construction. Excellent cable retention is achieved using aramid yarn. The entire cable design is encased by a black PUR outer jacket. This makes the cable assembly ideal for outdoor applications. It withstands greater impacts caused by animals and the outdoor environment. FIBERFOX X-TREME is suited for a vast array of applications, including lighting, network, PA, video, broadcast, defense & government, railway, and petrochemical. The innovative design ensures its ability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard.

Benefiting from the expanded beam technology and the precision optical alignment the system creates high immunity against dust, mud, liquids, and other contaminations. The FIBERFOX hermaphroditic coupling eliminates the need for adaptors and female and male mating halves. The cable connector comes pre-assembled and is not available as a single component. The finished cable is available in standardized lengths and is packed either on a drum or air spool.

Features

  • X-TREME cable protection for demanding outdoor applications
  • Rodent-resistant & cut-proof
  • Extreme robust, heavy-duty, connectors IP68 (mated & unmated)
  • Cables are directly extendable, no couplers required
  • Wear-free connectors, > 10’000 mating cycles without any maintenance
  • Cable connectors are designed acc. To MIL-DTL-83526 and compatible with other connectors using this standard
  • No special cleaning or measurement tools required

Product

  • Title: FIBERFOX X-TREME EBC15 2CH
  • Gender: Hermaphroditic

Mechanical

  • Tensile Strength: 1'800N
  • Compressive load: 50'000N
  • Lifetime (typ.): 10000 mating cycles
  • Bump resistance: 4000 bumps @ 40g acceleration
  • Vibrational Sinusoidal: 10-500Hz, 0.75 amplitude @ 10g acceleration

Material

  • Boot: Rubber (EPDM)
  • Insert: Steel
  • Shell: Aluminium
  • Shell plating: Hard anodize
  • Strain relief: Brass

Environmental

  • Flammability: UL 94 V-0
  • Protection Class: IP68 mated and unmated (1m for 60 min)
  • Compatibility: MIL-DTL-83526
  • Temperature Range: -40°C to +70°C

Optical

  • Insertion loss: Typ. 1.5dB per connection / Max. 2.5dB per connection
  • Optical connector: EBC
  • Optical wiring: ISO / IEC 11801

Mobile cable

  • Colour: Black, matte
  • Core diameter: Multimode 50µm / Singlemode 9µm
  • Cladding diameter: 125 µm
  • Cable jacket: PUR
  • Minimal bending radius: 92 mm
  • Number of fibers: 2
  • Cable rentation: Aramid yarn
  • Weight: 82 kg/km
  • Overal diameter: 9.2 mm
  • Outer shield: Coated glass yarn
More Information
Condition New
Brand FiberFox
