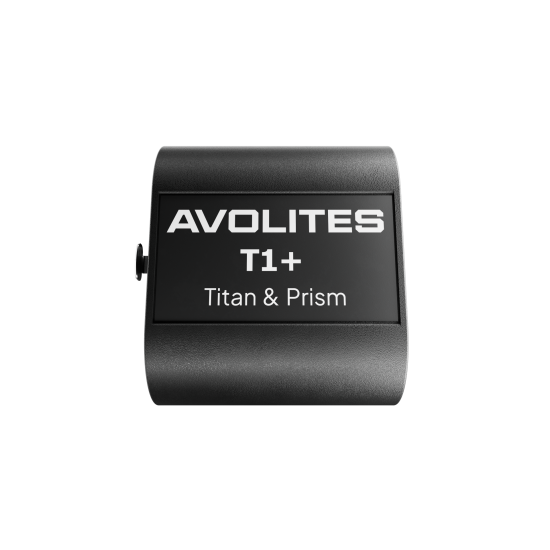

Avolites | T1+

Avolites | T1+

Travel Collection unlocks either Titan (lighting) or Prism (media), allowing you to preprogram and/or run your show on any Windows computer. T1+ has one physical DMX port, utilising your computer’s network and display ports for the other pots.

T1+ unlocks 1,024 DMX channels within Titan or 1 display output and 1,024 DMX Pixels† from Prism.

Software

• Software: Titan & Prism

Titan Software

• DMX Channels per Device: 1,024
• Max Fixtures: Unlimited
• 3D Visualisation: Capture Engine
• USB Wing Support: 1× D3 Wing, T3 Wing or Titan Mobile Wing
• D3 Touch Support: Yes (Unlimited)
• Mobile App: Titan Remote (iOS & Android)
• Expand Processing: Yes
• Multi-Console Session: Yes
• Offload Processing: Yes
• DMX Channels per System: 32,768

Supported Control Protocols

• DMX512 (E1.11)
• Streaming ACN (E1.31)
• Art-Net
• Art-RDM
• CITP
• GDTF (via Capture)
• MIDI over USB (MIDI Notes & MTC)
• Web API

Prism Software

• Display Outputs: 1 (Physical, NDI or RTSP)
• Inputs: 4 (Physical, NDI or RTSP)
• DMX Pixels: 1,024 (up to 4 DMX channels per pixel, e.g. RGBW)
• Surfaces: 16
• Layers: 16
• Blend Modes: 17
• Banks: 256
• Elements per Bank: 256
• Maximum Surface Resolution: 7680 × 7680 px (8K SHD Square)
• Maximum Output Resolution: 3840 × 3840 px (4K UHD Square)

Connections

• DMX In/Out: 1× Neutrik 5-pin XLR
• USB: 1× USB Type-B

Hardware

• Operating Voltage: 5 V DC
• Power Connector: USB Type-B
• IP Rating: IP20
• Operating Temperature: 0°C to 40°C
• Humidity: Up to 95% (Non-condensing)

Physical

• Dimensions (W × D × H): 79 × 69 × 41 mm
• Weight: TBC
• Packaged Weight: TBC
• Packaged Dimensions: TBC
• Packaging: Cardboard

Certification

• Compliance: CE, WEEE, RoHS

Included

• USB Type-A to USB Type-B Cable
• 2-Year Return-to-Base Warranty

Part Number

• 30-01-9631: T1+
