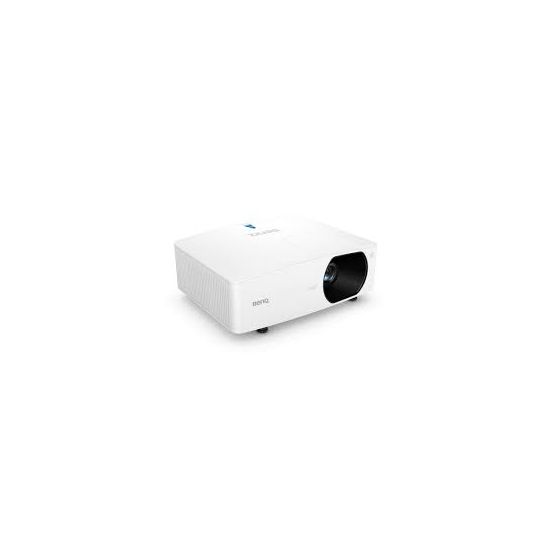

BenQ - LU710 - Conference Room Projector

BenQ - LU710 - Conference Room Projector

Precision-Aligned High-Output Laser Source

Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 4,000 lumens.

Secondary Yellow-Infused Color Wheel

Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

Hermetically Sealed DLP Chip

Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 20,000 hours without degradation.

Dual Color Wheels Produce 92% Rec.709 Color Coverage for Optimal Color Performance
LU710’s powerful BlueCore laser projection utilizes a dual color wheel system to produce unparalleled color performance that achieves a 92% Rec.709 color coverage. By increasing color ratios and the purity of RGBY color, LU710 dramatically enhances color saturation to ensure superior presentation quality.

Display

• Brightness (ANSI lumens): 4000
• Native Resolution: WUXGA (1920x1200)
• Native Aspect Ratio: 16:10
• Contrast Ratio (FOFO): 3000000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: 20000 hrs

Optical

• Throw Ratio: 1.13 ~ 1.46
• Zoom Ratio: 1.3x
• Lens: F/# = 1.94 ~ 2.07,f = 11.9 ~ 15.5 mm
• Projection Offset (Full-Height): 100%
• Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees


• Rec. 709 Coverage: 92%
• Picture Modes: 3D, Bright, Infographic, Presentation, sRGB, User 1, User 2, Video

Compatibility

• Input Lag: 34 ms (1080p@60Hz)
• Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
• Horizontal Frequency: 15K~102KHz
• Vertical Scan Rate: 23~120Hz

I/O Interface

• PC in (D-sub 15pin): (x1), PC in-1
• Monitor out (D-sub 15pin): (x1)
• Composite Video in (RCA): (x1)
• Component Video in (3RCA): (x1)
• HDMI in: (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
• USB Type A (x1), USB Type A-1 (2.0/Power Supply1.5A/Service)
• RS232 in (DB-9pin): (x1)
• DC 12V Trigger (3.5mm Jack): (x1)

Audio

• Speaker: (x2), 10W
• Audio in (3.5mm Mini Jack): (x1), 1
• Audio out (3.5mm Mini Jack): (x1), 1

Environment

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): Max 340W/ Normal 290W/ Eco 190W
• Stand-by Power Consumption: <0.5W
• Network Stand-by Power Consumption: <2W
• Acoustic Noise (Typ./Eco.)(dB): 34/29 dB

Accessories

• Remote Control w/ Battery: RCE016
• Power Cord (by region): x1 (1.8M)
• 3D Glasses: (Optional), DGD5
• Quick Start Guide: 1 (21L)
• Warranty Card (by region): Yes
• Anti-dust Filter: (Optional), Yes
• Universal Ceiling Mount: Yes, CMG3

Dimension & Weight

• Dimensions (WxHxD) (mm): 416 x166 x312
• Net Weight (kg): 6.3

Projection System

• Projection System: DLP
