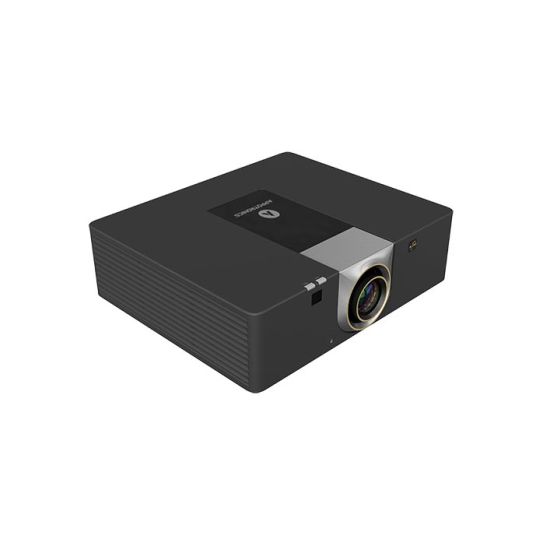

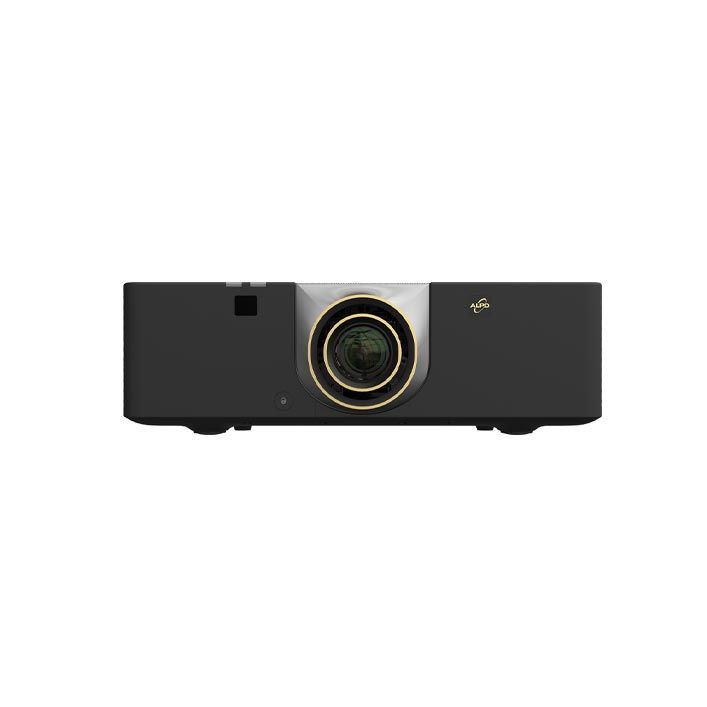

Appotronics | AL-MH750A - Projector

Appotronics | AL-MH750A - 7,500 Lumens Projector

The AL-MH750A delivers 7,500 lumens of laser brightness at Full HD resolution, powered by ALPD® Laser Phosphor technology. The Full HD counterpart to the AL-MK750A, it is built for professional installations where high brightness and reliable long-term operation matter, and where Full HD resolution fully meets the demands of the application.

Color Performance

The AL-MH750A reproduces content within the Rec.709 color gamut with a uniformity of ≥95%, ensuring consistent and accurate colors across the entire projected image. A contrast ratio of ≥100,000:1 delivers clean separation between highlights and shadows, bringing clarity and depth to any content whether in a darkened auditorium or a moderately lit meeting space.

Installation

Weighing just 12.5 kg, the AL-MH750A is among the most portable projectors in its brightness class, making it straightforward to install, reposition, or transport between venues. Motorized lens shift with ±50% vertical and ±20% horizontal range, combined with four optional lenses including a 0.5:1 manual short-throw option, gives integrators genuine flexibility for a wide range of room sizes and configurations.

Built-in geometric correction covers 4-point keystone, 9-point curved surface correction, and multi-point correction, making it adaptable to irregular surfaces and non-standard projection setups. Support for 4K at 60Hz and 1080P at 120Hz ensures broad compatibility with a wide range of source equipment.

Connectivity

The AL-MH750A offers a practical connectivity set for professional use, including dual HDMI inputs, HDMI output, HDBaseT, S/PDIF audio output, and dual USB-A ports. Control is handled via LAN, RS232, and USB-B, with 3D SYNC in/out and 3D IR output for installations requiring active 3D.

Reliability

The ALPD® laser phosphor light source is rated for over 20,000 hours of operation, keeping long-term maintenance costs low. With 360° installation support and a standby power consumption of just 0.5W, the AL-MH750A is designed to fit seamlessly into any permanent or temporary installation.

• Display Technology: DLP™ chip×1, DLP™ projection system
• Panel Size: 0.47" DMD
• Resolution: 1,920×1,080 (Full HD)
• Brightness: 7,500 lm
• Light Source: ALPD® Laser Phosphor
• Light Source Lifetime: 20,000 h
• Native Contrast: ≥1,300:1
• Full On/Off Contrast: ≥100,000:1
• Uniformity: ≥95%
• Color Gamut: Rec.709
• Optional Lenses: 0.5:1 (manual); 0.7–0.9:1; 1.0–1.6:1; 1.54–2.48:1
• Screen Size: 80"–300"
• Geometric Correction: 4-point keystone correction; curved surface correction (9 points); multi-point correction
• Blending: Vertical and horizontal adjustment V: ±35°, H: ±35°
• Lens Shift: Vertical ±50%, Horizontal ±20%, Motorized
• Input Resolution: 4K 60Hz; 1080P 120Hz
• Signal Interfaces: HDMI in×2; HDMI out; HDBaseT
• Audio Interfaces: S/PDIF out
• Other Interfaces: USB-A×2 (5V/2A)
• Control Interfaces: LAN (RJ45); RS232 (DB9); 3D SYNC×2 (in/out); 3D IR out; USB-B
• Power Supply: 100–240V AC 50/60Hz
• Typical Power Consumption: 600W
• Standby Power: 0.5W
• Installation: 360°
• Operation Noise: 36 dB (Standard)
• Dimensions (L×W×H): 460×388×138 mm (18.1"×15.3"×5.4")
• Weight: 12.5 kg (27.6 lbs)
• Operating Temperature: 0–40°C (32°F–104°F)
• Humidity: 10%–80% RH (No Condensation)
