RGBlink - RMS8424S - Dual LCD Monitors

RGBlink - RMS8424S - Dual LCD Monitor

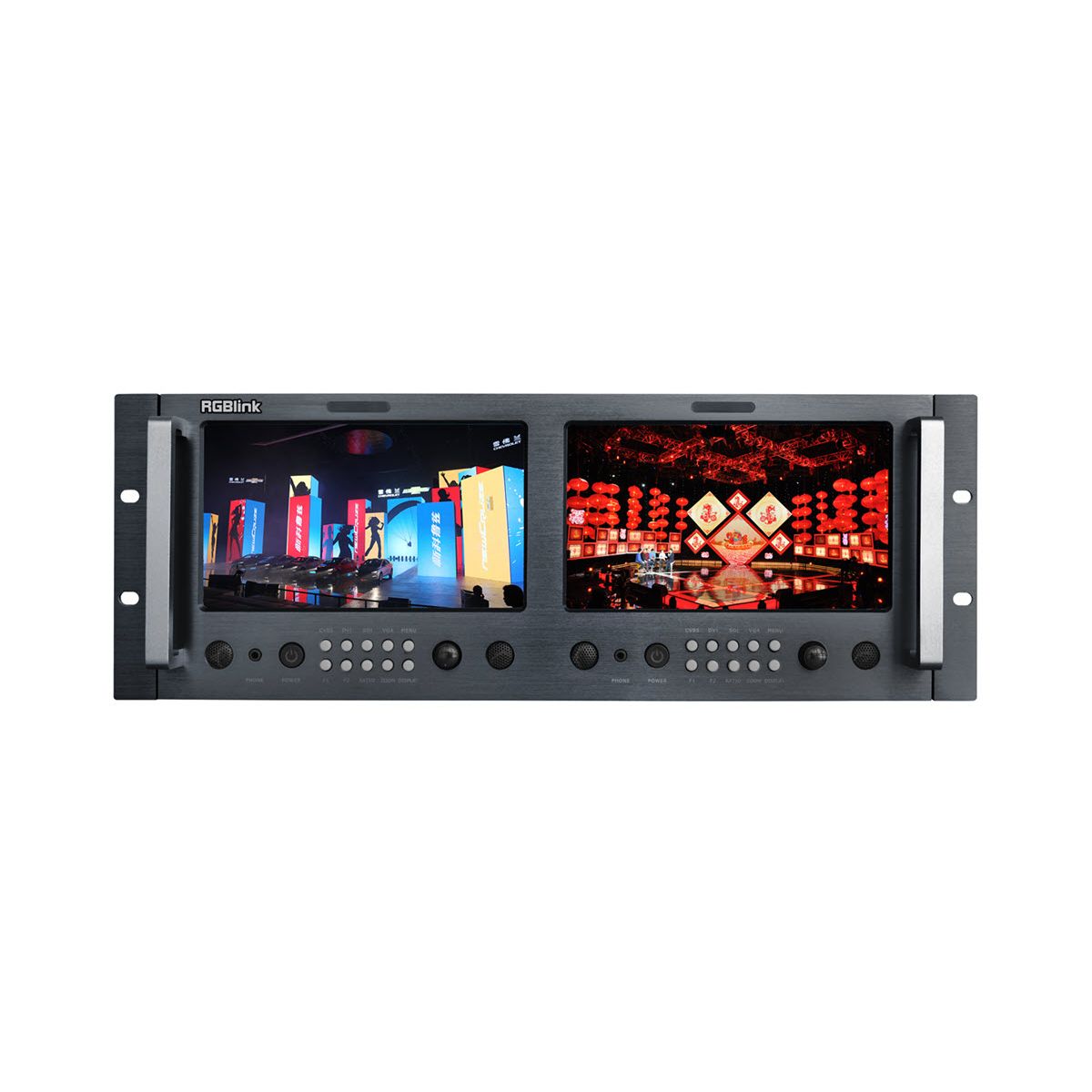

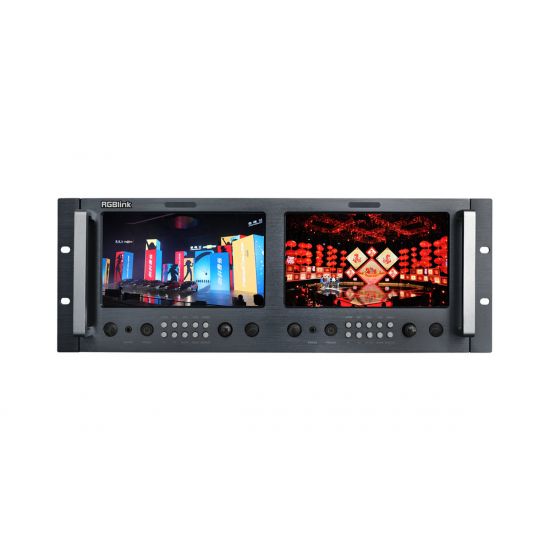

RMS 8424S is a 19in 4RU standard rack mounting LCD monitor, with 2 high resolution 8.4in LCD panels of independent input controlling, 1024×3(RGB)×600, and wide viewing angle.

Each monitor of RMS 8424S accepts 1 3G/HD/SD-SDI, 1 DVI, 1 VGA, and 1 Composite video, each input with loop through output. Support SDI and HDMI embedded audio output.

RMS 8424S has a 2-pin pole 12V DC power connector for all the 2 LCD panels.

Key Features:

• Standard 4 unit rack mount size
• 8 inch LCD ×2
• 1024×3(RGB)×600
• 16:9 / 4:3 adjustable
• 3G/HD/SD-SDI, DVI, VGA, Composite video
• SDI embedded audio output via 3.5mm earphone socket
• HDMI embedded audio output via 3.5mm earphone socket
• Max input resolution 2048 x 1152 or 2560 x 816
• Underscan / Overscan switch
• Viewangle adjustable structure
• Each input with loop through
• Auto input standard detection

Specifications:

Input

• 1 x DVI (HDMI1.3)
• 1 x CVBS
• 1 x VGA (Via DVI+VGA IN port)
• 1 x SDI (3G/HD/SD-SDI module)

Loop Out

• 1 x DVI (HDMI1.3)
• 1 x CVBS
• 1 x VGA (Via DVI+VGA LOOP port)
• 1 x SDI (3G/HD/SD-SDI module)

Net Size: 480mmx172mmx114.3mm

Net weight: 3.4kg

Work Temperature: 0°C~40°C

Relative Humidity: 10%~85%
