RGBlink - MSP210H - HDMI to SDI Convertor

RGBlink - MSP210H - HDMI to SDI Convertor

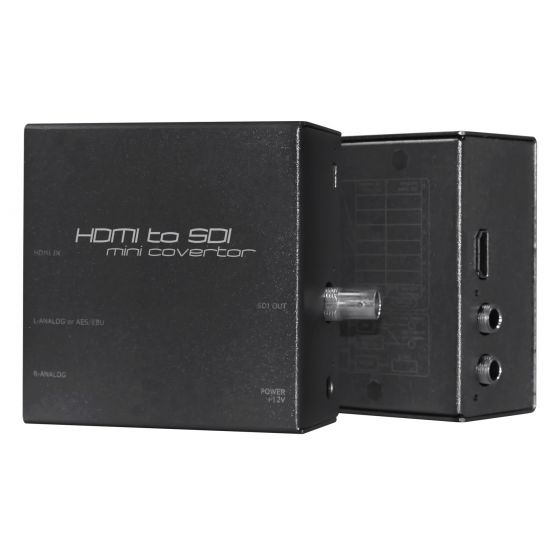

MSP 210H is the HDMI to SDI video converter, which can realize the switching from HDMI to 3G/HD/SD-SDI perfectly. It supports 1 HDMI input, 2 balanced analog audio input or 1 digital AES/EBU input, and 1SDI output.

MSP 210H supports input resolution of SMPTE: 480i, 576i, 720p@50Hz, 720p@60Hz,1080i@50Hz,1080i@60Hz,1080p@50Hz, 1080p@60Hz,VESA:800*600@60, 1024*768@60Hz,1280*720@60Hz, 1280*768@60Hz, 1280*800@60Hz,1280*1024@60Hz,1360*768@60Hz, 1366*768@60Hz, 1440*900@60Hz,1400*1050@60Hz,1600*1200@60Hz, 1680*1050@60Hz,1920*1080@60Hz

MSP 210H supports output resolution of SMPTE:

480i, 576i, 720p@50 Hz, 720p@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60 Hz, also supports SCALE, left and right analog sound channel input, digital AES/EBU input, HDMI embedded audio input and mute function. It can adapt to multiple rates of SDI signal, including 3G-SDI, HD-SDI and SD- SDI. Easy operation. It is really the best bridge for HDMI to broadcasting SDI application.

Specifications:

• Input: 1 x HDMI
• Output: 1 x SDI
• Control Interface: USB
• Net Size: 95.8mmx92.9mmx45mm
• Net weight: 0.31kg
• Work Temperature: 0°C~40°C
• Relative Humidity: 10%~85%
• HDMI input to SDI output.
• Support input resolution of VESA:800*600@60Hz, 1024*768@60Hz, 1280*720@60Hz, 1280*768@60Hz, 1280*800@60Hz, 1280*1024@60Hz, 1360*768@60Hz, 1366*768@60Hz, 1440*900@60Hz, 1400*1050@60Hz, 1600*1200@60Hz, 1680*1050@60Hz, 1920*1080@60Hz and SMPTE: 480i, 576i, 720P@50Hz, 720p@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz.

• Support output resolution of SMPTE: 480i, 576i, 720p@50Hz, 720p@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz.
• Support SCALE, left and right analog sound channel input, digital AES/EBU input, CVBS embedded audio input and mute function.
• The LED indicator beside SDI interface lights when output SDI signal.
• When input analog audio signal, the LED indicators beside L-ANALOG and R-ANALOG light.
• When input digital AES/EBU signal, the LED indicator beside L-ANALOG or AES/EBU lights.
