RGBlink - M1

List price:

€466.20 Excl. Tax

Your price:

€115.44 Excl. Tax

Your discount: 75%

Last stock:
2 pieces

Art. code

RG-65.0101

FREE SHIPPING

Within Benelux (from €750)

Description

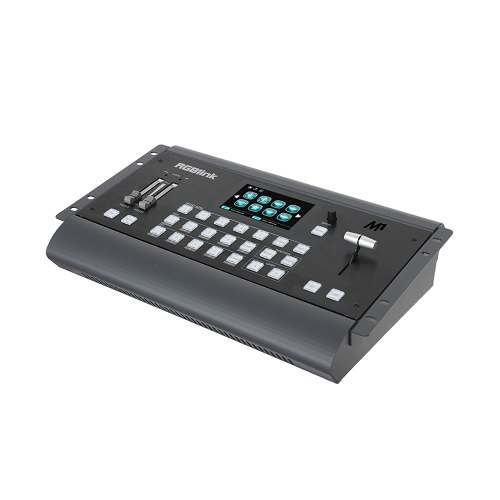

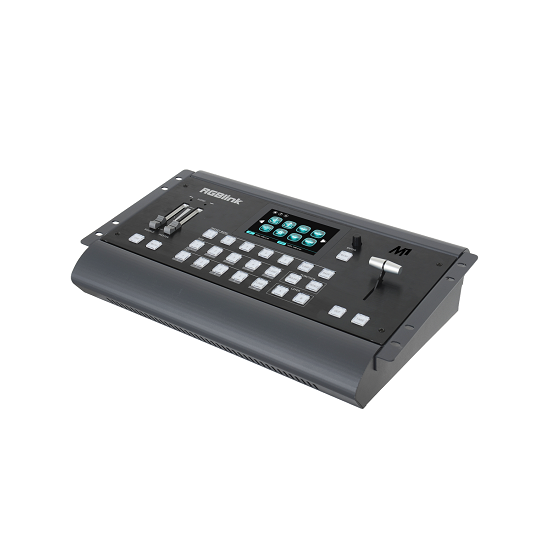

RGBlink - M1

Includes EXT4, Input & Output modules sold separately.

M1 makes video scaling and mixing more accessible and intuitive than ever before. Building on RGBlink technologies and innovations for a unique - almost "hand-held" - fully integrated All-in-One video processor, M1 redefines what a modern video processor can be with a host of on board features.

Front central is a touch screen display providing easy access to features, with large illuminated buttons provide familiar tactile controls.

Audio features are also built right into M1 which can output from embedded audio or external sources. The front panel features LR audio controls, and PPM display is also available.

Much more than a vision mixer, M1 includes both cross-conversion and pixel to pixel scaling for modern displays, making this a comprehensive video solution for meeting rooms, schools and house of worship applications.

Specifications

Connectors

Input

1 slot, up to 4 inputs

Select from

DVI Module

HDMI Module

DP Module

HDBaseT Module

SDI Module (Loop)

USB Module

1 x DVI-I (supports VGA, YPbPr, CVBS)

1 x HDMI-A

1 x DisplayPort

1 x RJ45

2 x BNC (1 In | 1 Loop)

2 x USB (1 In | 1 Backup)

Output

1 slot,

Select from

With SDI	1 x HDMI \| 1 x SDI
Without SDI	1 x HDMI

Preview

HDMI	1 x HDMI-A

Audio

Input

2 x RCA

Output

2 x RCA

1 x stereo mini Jack

Communication

LAN

Tally

USB

Genlock Y

1 x RJ45

1 x RS232

1 x USB

1 x BNC

Power

1 x IEC

Performance

Input Resolutions

SDI

SMPTE

480i | 576i | 720p@50/60 | 1080i@59.94/60 |1080p@23.98/24/25/29.97/30/50/59.94/60

DVI | HDMI | DP | HDBaseT

SMPTE	480i \| 576i \| 720p@50/59.94/60 \| 1080i@50/59.94/60 \|1080p@50/59.54/60
VESA	800x600@60 \| 1024x768@60 \| 1280x720@60 \| 1280x800@60 \|1280x960@60 \| 1280x1024@60 \| 1400x1050@60 \| 1600x1200@60 \|1920x1080@60

VGA

VESA	800x600@60 \| 1024x768@60 \| 1280x720@60 \| 1280x800@60 \|1280x960@60 \| 1280x1024@60 \| 1400x1050@60 \| 1440x900@60 \|1600x1200@60

CVBS

SMPTE

480i | 576i

Output Resolutions

Select from below or set customised

SDI

SMPTE

480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60

HDMI

SMPTE	720p@50/59.94/60 \| 1080p@50/59.54/60
VESA	800x600@60 \| 1024x768@60 \| 1280x768@60 \| 1280x1024@60 \|1600x1200@60 \| 1920x1080@60

Supported Standard

SDI

SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

HDMI

DVI

VGA

USB

1.3

1.1

S-DVI

UXVGA

2.0

Processing Engine

10bit

Power

Input Voltage

AC85V~264V, 50/60Hz

Max Power

120W

Environment

Temperature

0℃～55℃

Humidity

10%~90% RH

Physical

Weight

Net (device)	5.5kg
Packaged	8.0kg

Dimensions

Net (device)

462mm x 280mm x 95mm

More Information

More Information
Brand	RGBlink
