BenQ - WDC20 - Instashow Wireless HDMI

BenQ - WDC20 - Instashow Wireless HDMI

InstaShow® WDC20 has zero learning curve, so you can use it in your daily routine and start sharing immediately with your own mobile devices. InstaShow® WDC20 also allows employees and visitors to enjoy setup-free wireless presenting, leading to instant teamwork and immediate results. Morever, InstaShow® WDC20’s advanced security features can protect the hard-won intellectual property that is essential to your company’s bottom line.

Plug In and Present Immediately

Easy for anyone to set up, InstaShow® is ready to use from the moment it’s plugged in. It also significantly enhances corporate efficiency and agility by allowing up to 32 users to connect and present in turn without the usual tech-related delays between presenters. Furthermore, InstaShow®’s support for integrated hardware encoding and decoding ensure it can provide smooth presentation and video playback regardless of the operating system and capabilities of the source notebook.

High-Performance Wireless with Full HD Video Sharing

InstaShow® can maintain stable wireless connections even in less-than-ideal Wi-Fi environments. Equipped with Wi-Fi 802.11 ac/n for transfer speeds of up to 700Mbps*, InstaShow® facilitates easy and smooth sharing of presentations, pictures, documents, and Full HD video. *300Mbps over 2.4G; 400Mbps over 5G

Simple Pairing and Hassle-Free Maintenance

InstaShow® is ready to use immediately out of the box. But if you need to pair additional transmitters to a receiver, you will find the process is incredibly simple. Just hold down the pairing key on the host for 5 seconds, then do the same on the transmitter, and the two devices will pair automatically. The host can even be put into pairing mode via web control if it is installed onto a ceiling-mounted projector or otherwise hard to reach location.

Intuitive Design
Just plug-n-play and no driver needed. Click the button to project an image directly

Flexible Presentations
Customized modes for versatile and uninterrupted presentations to boost meeting efficiency.

Smooth Video Play
A router-level chipset supports higher network bandwidth which delivers reliable and stable video streaming.

Overall Security
AES 128-bit with the WPA2 and the internal connection channels isolation reach elevated level of security.

Low latency Performance
InstaShow® WDC20 offers 1080p and up to 60 FPS makes it especially fit to play high resolution slides and Full HD videos smoothly.

Accessories

• HDMI cable: (x1)

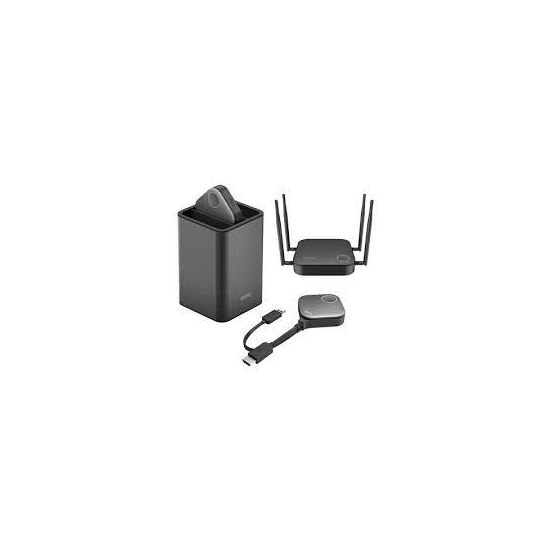

InstaShow Package

• Host (Receiver): (x1), x1
• Button (Transmitter): (x2), x2
• CradleL (x1), x1
• Antenne: (x4), 5dbi, MIMO, x2
• USB Power Cable: (x1), 1.5m, USB Type A 3.0
• USB Extention Cable: (x2), 15cm, 80cm
• HDMI cable: (x1)
• Safety Statement: (x1) 16L, 1 (22L)

InstaShow Button

• Button Connector Type: (x1) HDMI, (x1) USB Type A, x1 HDMI Cable, x1 USB Type A
• Button Function Key: Split Screen Key

InstaShow Host

• Host Power Supply: DC 12V±10%, 2A
• Host Normal Power Consumption: 24W
• HDMI out: (x1)
• Host Dimensions without antenna: 154x34x140 mm
• Host Weight: 330 g, TBD

InstaShow Cradle

• Cradle Dimensions: 100.4x92.6x152 mm mm, 92.58 x 152 x 100.38mm mm
• Cradle Weight: 550 g, TBD

InstaShow Features

• Video Outputs: HDMI 1.4 (with HDCP)
• Maximum Output Resolution (Receiver): Up to 4K 30Hz
• WiFi Standard: 5
• Wireless Frequency: 2.4G + 5G
• Wireless Data Rate (Maximum): AC1200 (2.4G 300 Mbps + 5G 867 Mbps)
• Split Screens (Maximum): 4
• Simultaneous connections: 32
• WiFi Protected Access: WPA2
• Advanced Encryption Standard: AES128
