Aurora - DXP-62K-1 - Presentation Scaler/Switcher
DXE-CAT-RX1 HDBaseT Receiver included.
The DXP-62 is a presentation scaler/switcher designed for multi-signal processing of HDMI®, VGA, Component (YPbPr) and Composite inputs scaling all up to 1900×1200 HD resolution output. It accepts up to four (4) HDMI® inputs and two (2) VGA/YPbPr/Composite inputs and scales all to the on-board HDMI® and HDBaseT simultaneous outputs. Leveraging One Room – One CableTM features, the HDBaseT output will pass PoH power to the included HDBaseT Receiver as well as RS232 and IR control for the display. With the addition of four (4) external audio inputs, additional MIC input with independent volume control, de-embedding line level stereo output and auto sensing/switching video inputs, the DXP-62 is perfect for Classrooms, Conference Rooms and AV Cart applications. 1RU rack-mount hardware included.
- 4 HDMI® Inputs
- 2 VGA/YPbPr/Composite Inputs
- 4 Analog Audio Stereo Inputs
- 1 Microphone Input
- 1 HDMI® Output
- 1 HDBaseT Output 230ft (70m) CAT 5e/6
- Power over HDBaseT (PoH)
- IR, and RS-232 over HDBaseT
- Scales input up to 1080p
- Auto Switching Feature

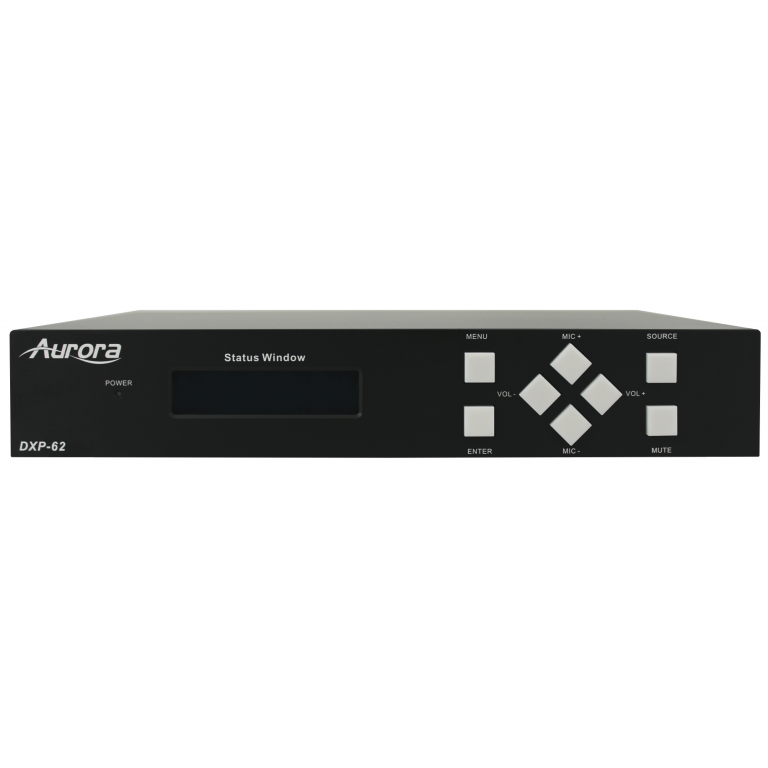

- Front Panel Button Control
- Front Panel LCD Display
- OSD (On Screen Display)
- RS-232 and IR Control (LAN/WEB control when ordered as DXP-62K-3)
- USB for Firmware Updating
Video
- Max HDBT Distance: 230ft (70m)
- Max Resolution: 1920x1200 @60Hz
- Color Depth: 36bit
- Bandwidth: HDMI: 1.65Gbps per color C-Video:150MHz YPbPr: 170MHz VGA: 375MHz
Audio
- Audio Bandwidth: 20Hz – 20KHz

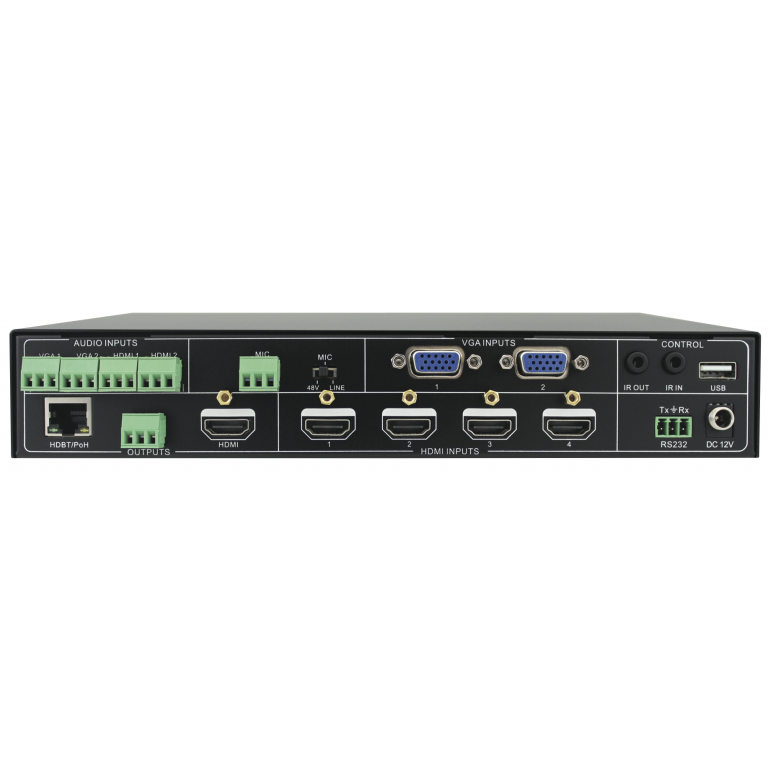

Connectors
- RS-232: Max 115kbps
- HDMI Inputs: 4
- VGA/YPbPr/Video Inputs: 2
- HDMI Outputs: 1
- HDBaseT Outputs: 1 PoH (Video, RS-232, IR)
- Audio Inputs: 4 Stereo 3 pin 3.81mm Euro / 1 Mic 3 pin 3.81mm Euro
- Audio Outputs: 1 Stereo 3 pin 3.81mm Euro / 0db Gain.
- RS-232 Ports: 1
- IR Input Ports: 1
- IR Output Ports: 1
- IR Frequency Range: 20KHz – 60KHz
- HDBaseT Connector: RJ-45 WE/SS 8P8C
- RS-232 Connector: Euro Style 3.81mm
- IR Connector: 3.5mm TRS
- HDMI Connector: Type A 19 pin
- Power Connector: IEC Male
Mechanical
- Housing: Black Aluminum Enclosure
- Dimensions [L x D x H]: 8.66” x 5.83” x 1.75” (220 x 148 x 44mm)
- Weight: 1.477lbs (.67kg)
- Mounting: 1 RU Rack Mounting (Hardware Included)
- Power supply: 12v 16Watt
- Operation temperature: 0~40C [32~104F]
