NovaStar | MBOX600 Pro(9U8A4)[WIN10] - Industrial Controller

NovaStar | MBOX600 Pro(9U8A4)[WIN10] - Industrial Controller

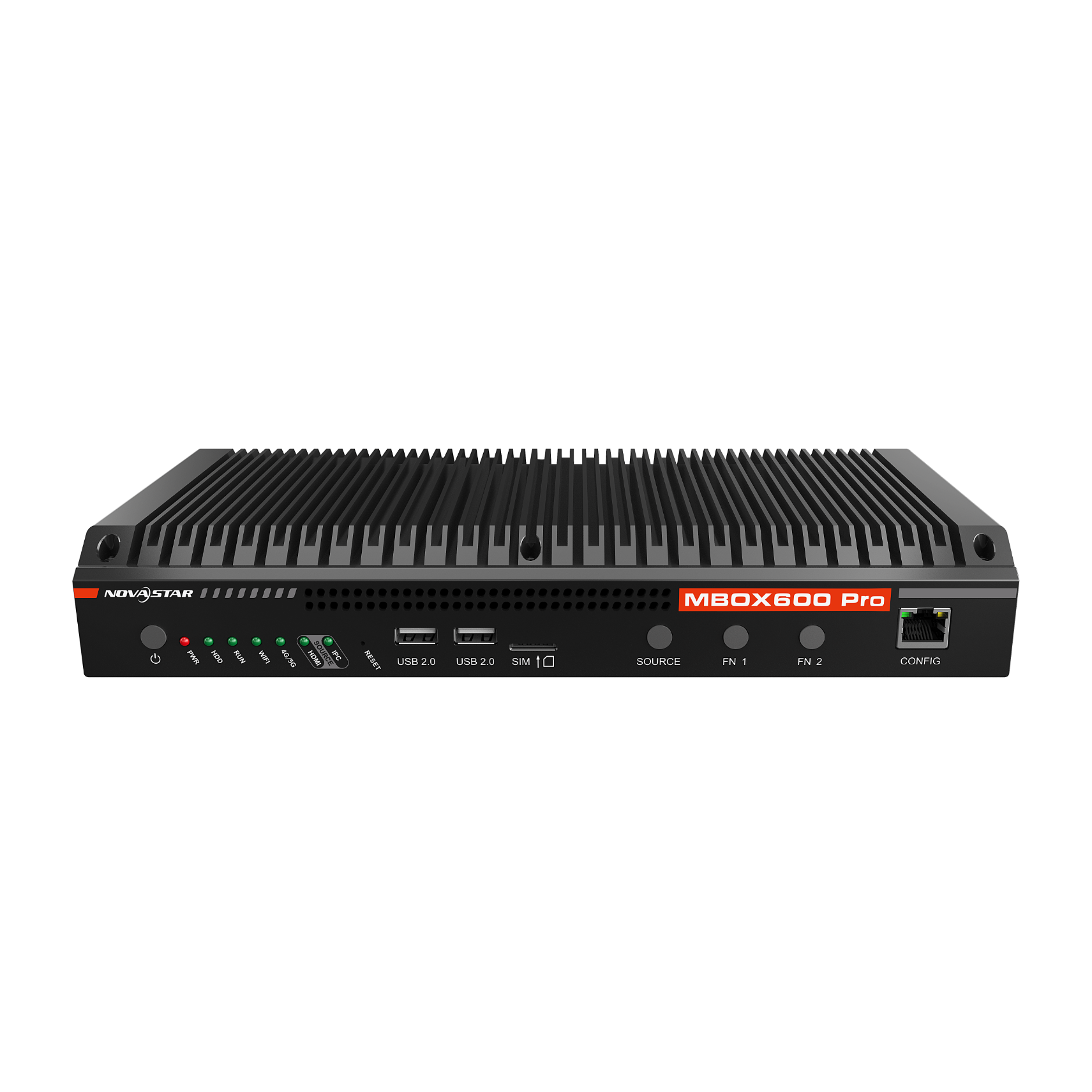

The MBOX600 Pro is an LED display controller created by NovaStar. It integrates an industrial PC and the sending
capability. This controller is capable of monitoring and managing the SNMP system, offering professional system monitoring and operation management services for specialized advertising media display users. The MBOX600 Pro is managed via a web application that provides users with versatile control and ease of use in every scenario. This solution boasts comprehensive scalability, delivering a robust server to unlock the full potential of the system. It is designed to meet users' diverse secondary development and innovation needs. The MBOX600 Pro can be widely applied in unattended scenarios, such as outdoor fixed screens.

• Size: 319.0mm × 135.9mm × 45.5mm
• Input Voltage: DC 12V 7A
• Stand-by Power Consumption: ≈1.6W
• Loading Capacity: 2.6 Million
• Maximum Width: 4096
• Maximum Height: 1920
• Operating System:
  • Windows: Windows 10 & 11 IoT Enterprise
  • Linux: Ubuntu 22.04
• WiFi: WiFi (Station), WiFi 5, 2.4G/5G
• CPU: Intel® Processor N97
• Storage Options: 4G+128G, 8G+256G
• Input Ports:
  • 1 × HDMI 1.3
  • 2 × USB 2.0
  • 2 × USB 3.0

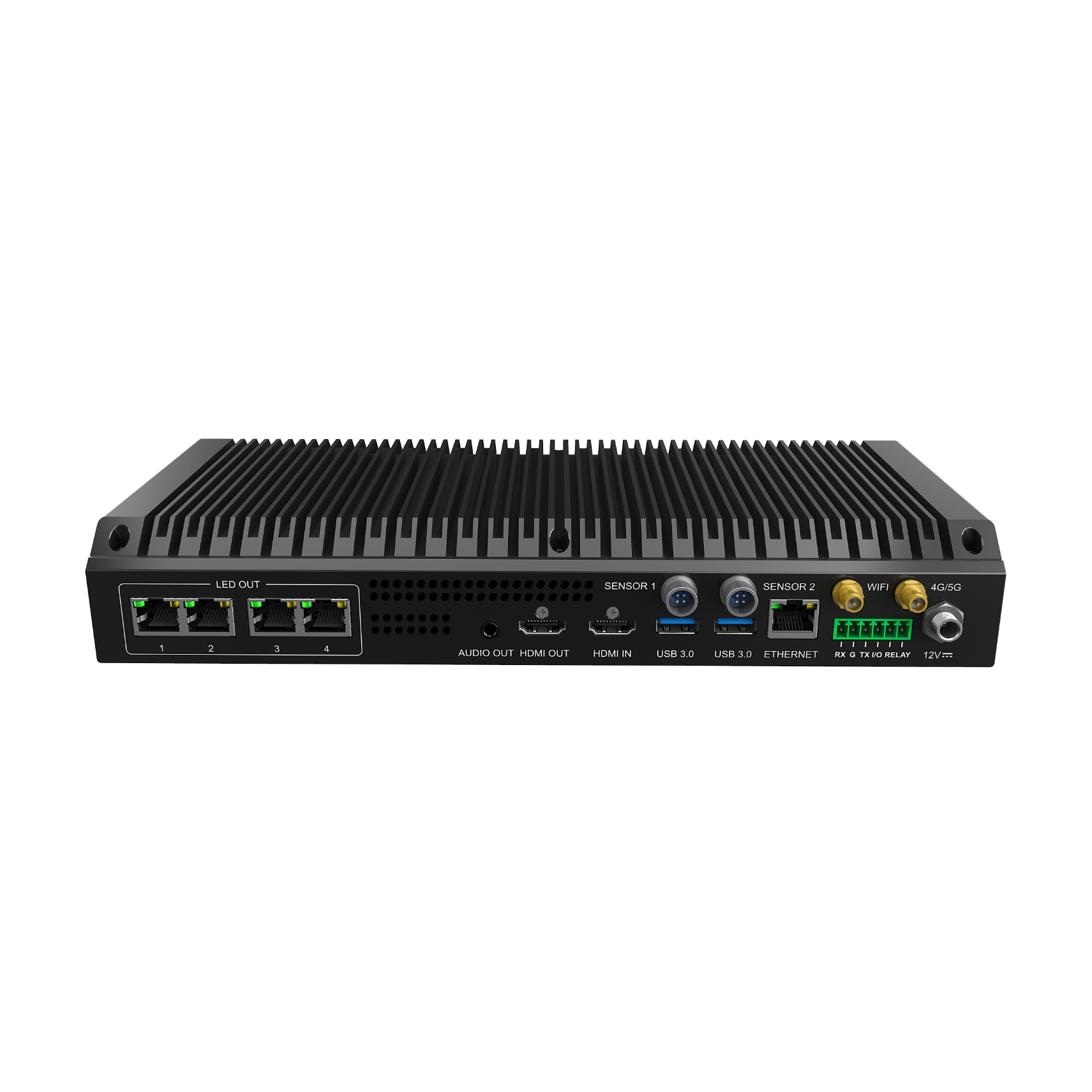

• Output Ports:
  • 4 × RJ45
  • 1 × HDMI 1.3
  • 1 × 3.5mm Audio
• Control Ports:
  • 2 × Gigabit Ethernet Port
  • 1 × RS232
  • 2 × Sensor Port
• Free Scaling: Support
• SNMP: Support
• Remote Control: Support
